ConformanceNist.Appearance.TextureTransform.center_complex_movietexture

public class center_complex_movietexture extends Object

Test center field for complex geometry applied with a MovieTexture. Test browser ability to apply a +90 degree (clockwise) rotation center of (left to right) 0 0, 0.33 0.33, -.5 -.5, 0.66 0.66 and 1 1 to an MovieTexture mapped to the faces of complex geometry,mapping with complex mapping rules. The result is: (for the bottom face of the ElevationGrid, the side and bottom end cap of the Extrusion, and the front of the IndexedFaceSet) Column #1 displays the VTS logo centered horizontally and vertically, rotated clockwise 90 degrees on all geometry faces. Column #2 maps the rotated VTS logo centered horizontally, with the logo spelling TSV on all faces.Column #3 maps the VTS logo exactly as was done in column #1. Column #4 maps the rotated VTS logo with the VTS logo centered horizontally, and spelling SVT. Column #5 maps the same as column 1 and column #3.

Scene Meta Information
meta tags	Document Metadata
title	center_complex_movietexture.x3d

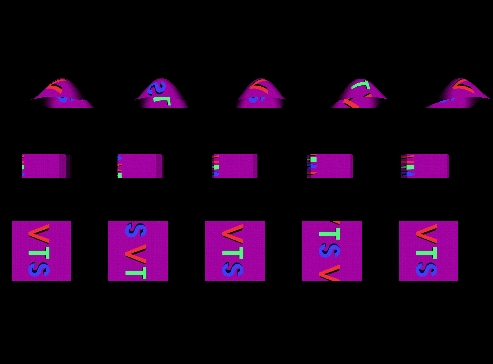

Image	center_complex_movietexture-front.jpg

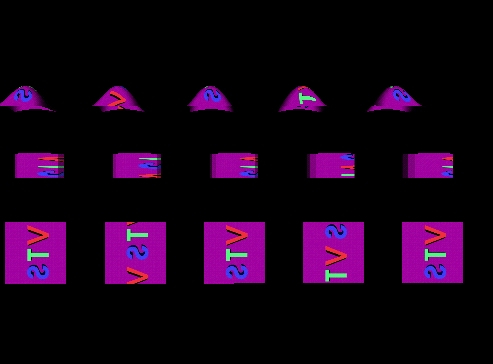

Image	center_complex_movietexture-rear.jpg

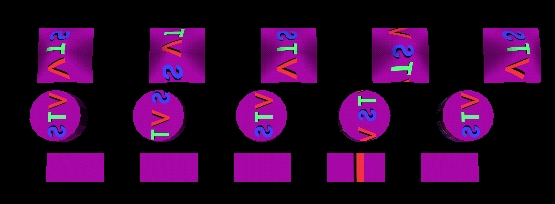

Image	center_complex_movietexture-top.jpg

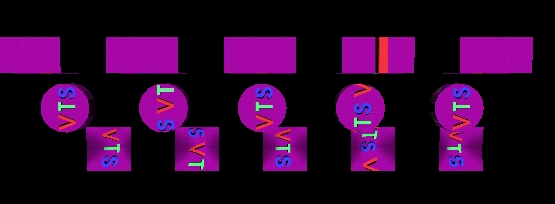

Image	center_complex_movietexture-bottom.jpg

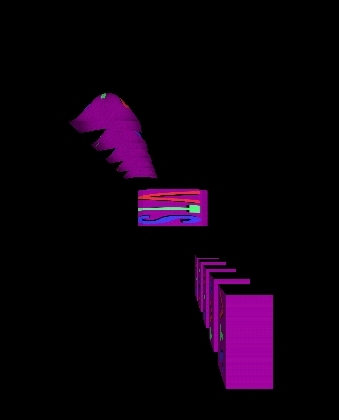

Image	center_complex_movietexture-left.jpg

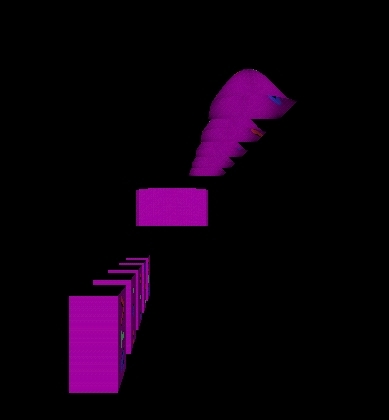

Image	center_complex_movietexture-right.jpg
reference	http://www.nist.gov/vrml.html
reference	http://www.itl.nist.gov/div897/ctg/vrml/vrml.html
creator	http://www.itl.nist.gov/div897/ctg/vrml/members.html
disclaimer	This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified.
reference	Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml
reference	Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml
info	Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d
translator	Michael Kass NIST, Don Brutzman NPS
translated	21 January 2001
modified	28 August 2023
description	Test center field for complex geometry applied with a MovieTexture. Test browser ability to apply a +90 degree (clockwise) rotation center of (left to right) 0 0, 0.33 0.33, -.5 -.5, 0.66 0.66 and 1 1 to an MovieTexture mapped to the faces of complex geometry,mapping with complex mapping rules. The result is: (for the bottom face of the ElevationGrid, the side and bottom end cap of the Extrusion, and the front of the IndexedFaceSet) Column #1 displays the VTS logo centered horizontally and vertically, rotated clockwise 90 degrees on all geometry faces. Column #2 maps the rotated VTS logo centered horizontally, with the logo spelling TSV on all faces.Column #3 maps the VTS logo exactly as was done in column #1. Column #4 maps the rotated VTS logo with the VTS logo centered horizontally, and spelling SVT. Column #5 maps the same as column 1 and column #3.
identifier	https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/center_complex_movietexture.x3d
generator	Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html
generator	X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit
license	../../license.html

This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

Constructor Summary

Constructors

Constructor

Description

center_complex_movietexture()

Default constructor to create this object.
Method Summary

Modifier and Type

Method

Description

org.web3d.x3d.jsail.Core.X3D

getX3dModel()

Provide a shallow copy of the X3D model.

final void

initialize()

Create and initialize the X3D model for this object.

static void

main(String[] args)

Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Details
- center_complex_movietexture

  public center_complex_movietexture()

  Default constructor to create this object.
Method Details
- initialize

  public final void initialize()

  Create and initialize the X3D model for this object.
- getX3dModel
  public org.web3d.x3d.jsail.Core.X3D getX3dModel()

  Provide a shallow copy of the X3D model.

  Returns:

  center_complex_movietexture model

  See Also:

  X3D
- main
  public static void main(String[] args)

  Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

  Parameters:

  args - array of input parameters, provided as arguments

  See Also:

  X3D.handleArguments(args)

  X3D.validationReport()

  CommandLine

  CommandLine.USAGE

  ConfigurationProperties
