Class TextureAngleViewer

java.lang.Object
X3dForAdvancedModeling.TextureMapping.TextureAngleViewer
public class TextureAngleViewer extends Object

View a given texture from different angles to judge readability, example use is a QR code.

Related links: Catalog page TextureAngleViewer, source TextureAngleViewer.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title TextureAngleViewer.x3d
description View a given texture from different angles to judge readability, example use is a QR code.
creator Don Brutzman
created 23 April 2013
modified 25 November 2024
TODO color mapper in scene for varying Background contrast
TODO second X-axis angle slider

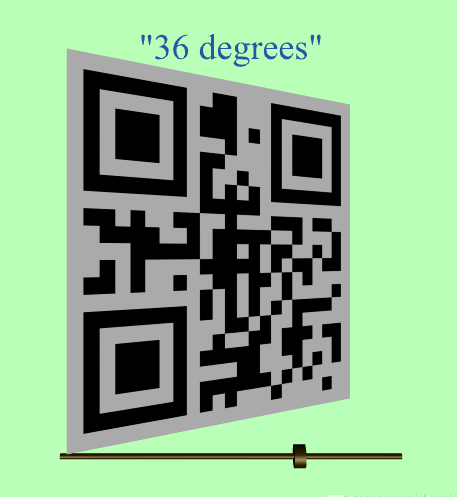

Image TextureAngleViewer36degrees.png
Image images/QrNpsEduCode.png
reference http://qr.nps.edu
reference https://zxing.appspot.com/generator
identifier https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/TextureMapping/TextureAngleViewer.x3d
generator X3D-Edit 3.3, https://www.web3d.org/x3d/tools/X3D-Edit
license ../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

  • Constructor Details

    • TextureAngleViewer

      public TextureAngleViewer()
      Default constructor to create this object.

  • Method Details

    • initialize

      public final void initialize()
      Create and initialize the X3D model for this object.

    • getX3dModel

      public org.web3d.x3d.jsail.Core.X3D getX3dModel()
      Provide a shallow copy of the X3D model.
      Returns:
      TextureAngleViewer model
      See Also:

    • main

      public static void main(String[] args)
      Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.
      Parameters:
      args - array of input parameters, provided as arguments
      See Also:
