Class RoundedRectangleComparison

java.lang.Object
X3dForAdvancedModeling.GeometricShapes.RoundedRectangleComparison
public class RoundedRectangleComparison extends Object

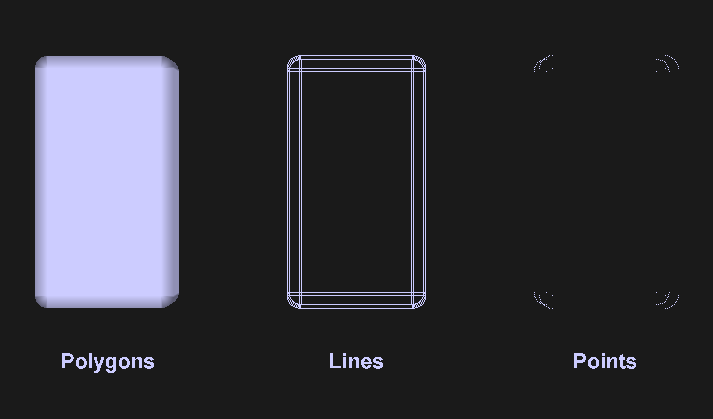

RoundedRectangleComparison shows three RoundedRectangle shapes using polygons/lines/points rendering. Note that reuse of RoundedRectangle geometry requires only Interchange profile, but Text requires Immersive profile.

Related links: Catalog page RoundedRectangleComparison, source RoundedRectangleComparison.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title RoundedRectangleComparison.x3d
description RoundedRectangleComparison shows three RoundedRectangle shapes using polygons/lines/points rendering. Note that reuse of RoundedRectangle geometry requires only Interchange profile, but Text requires Immersive profile.
created 8 November 2014
modified 20 October 2019
Image RoundedRectangleComparison.png
reference RoundedRectanglePrimitives.x3d
reference RoundedRectangle2D.x3d
reference RoundedRectangleDesign.vsd
reference RoundedRectangleDesign.png
reference RoundedRectangleDesign.svg
creator Don Brutzman
reference https://en.wikipedia.org/wiki/Squircle
reference https://en.wiktionary.org/wiki/roundrect
info Development of this scene added new features to X3D-Edit
identifier https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/GeometricShapes/RoundedRectangleComparison.x3d
generator X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license ../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

  • Constructor Details

    • RoundedRectangleComparison

      public RoundedRectangleComparison()
      Default constructor to create this object.

  • Method Details

    • initialize

      public final void initialize()
      Create and initialize the X3D model for this object.

    • getX3dModel

      public org.web3d.x3d.jsail.Core.X3D getX3dModel()
      Provide a shallow copy of the X3D model.
      Returns:
      RoundedRectangleComparison model
      See Also:

    • main

      public static void main(String[] args)
      Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.
      Parameters:
      args - array of input parameters, provided as arguments
      See Also:
