complexType SchemaDataType

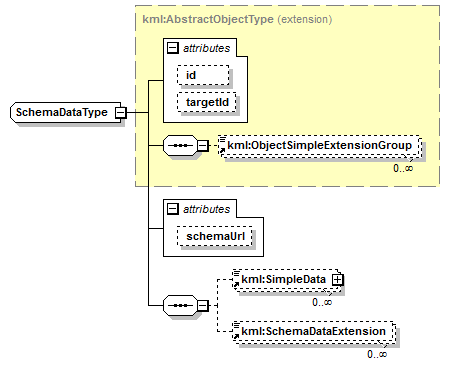

diagram ogckml22_diagrams/ogckml22_p325.png
namespace http://www.opengis.net/kml/2.2
type extension of kml:AbstractObjectType
properties
base kml:AbstractObjectType
final #all
children kml:ObjectSimpleExtensionGroup kml:SimpleData kml:SchemaDataExtension
used by
element SchemaData
attributes
Name  Type  Use  Default  Fixed  Annotation
id  ID  optional
targetId  NCName  optional
schemaUrl  anyURI
source <complexType name="SchemaDataType" final="#all">

<complexContent>

<extension base="kml:AbstractObjectType">

<sequence>

<element ref="kml:SimpleData" minOccurs="0" maxOccurs="unbounded"/>

<element ref="kml:SchemaDataExtension" minOccurs="0" maxOccurs="unbounded"/>

</sequence>

<attribute name="schemaUrl" type="anyURI"/>

</extension>

</complexContent>
</complexType>

attribute SchemaDataType/@schemaUrl
type anyURI
source <attribute name="schemaUrl" type="anyURI"/>
