complexType IconStyleType

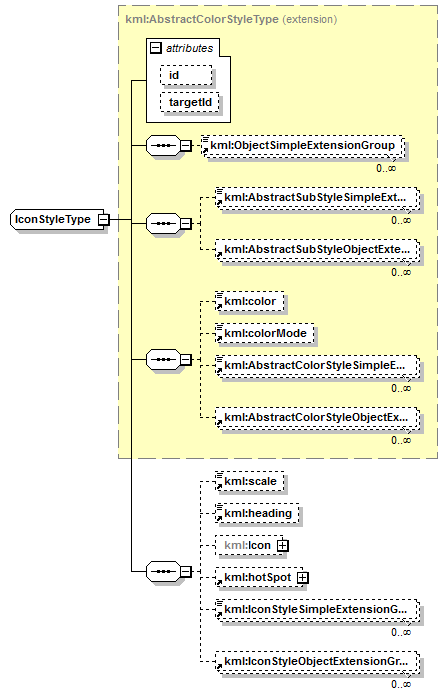

diagram ogckml22_diagrams/ogckml22_p294.png
namespace http://www.opengis.net/kml/2.2
type extension of kml:AbstractColorStyleType
properties
base kml:AbstractColorStyleType
final #all
children kml:ObjectSimpleExtensionGroup kml:AbstractSubStyleSimpleExtensionGroup kml:AbstractSubStyleObjectExtensionGroup kml:color kml:colorMode kml:AbstractColorStyleSimpleExtensionGroup kml:AbstractColorStyleObjectExtensionGroup kml:scale kml:heading kml:Icon kml:hotSpot kml:IconStyleSimpleExtensionGroup kml:IconStyleObjectExtensionGroup
used by
element IconStyle
attributes
Name  Type  Use  Default  Fixed  Annotation
id  ID  optional
targetId  NCName  optional
source <complexType name="IconStyleType" final="#all">
  <complexContent>
    <extension base="kml:AbstractColorStyleType">
      <sequence>
        <element ref="kml:scale" minOccurs="0"/>
        <element ref="kml:heading" minOccurs="0"/>
        <element name="Icon" type="kml:BasicLinkType" minOccurs="0"/>
        <element ref="kml:hotSpot" minOccurs="0"/>
        <element ref="kml:IconStyleSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="kml:IconStyleObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>

element IconStyleType/Icon

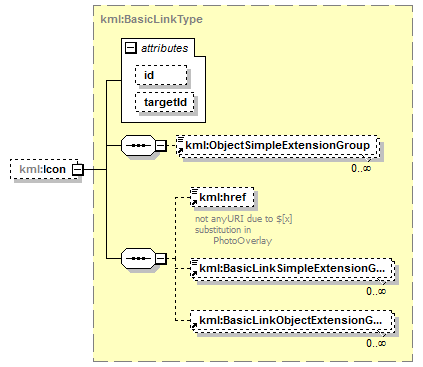

diagram ogckml22_diagrams/ogckml22_p295.png
namespace http://www.opengis.net/kml/2.2
type kml:BasicLinkType
properties
minOcc 0
maxOcc 1
content complex
children kml:ObjectSimpleExtensionGroup kml:href kml:BasicLinkSimpleExtensionGroup kml:BasicLinkObjectExtensionGroup
used by
complexType AbstractOverlayType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  ID  optional
targetId  NCName  optional
source <element name="Icon" type="kml:BasicLinkType" minOccurs="0"/>
