complexType FirmType

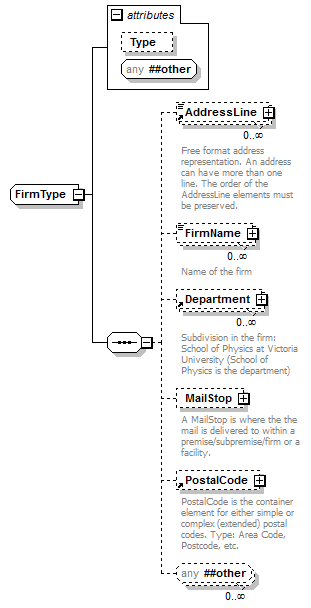

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
children	AddressLine FirmName Department MailStop PostalCode
used by	elements  Thoroughfare/Firm PostBox/Firm Premise/Firm SubPremiseType/Firm
attributes	Name   Type   Use   Default   Fixed   Annotation Type
source	<complexType name="FirmType">   <sequence>     <element ref="AddressLine" minOccurs="0" maxOccurs="unbounded"/>     <element name="FirmName" minOccurs="0" maxOccurs="unbounded">       <annotation>         <documentation>Name of the firm</documentation>       </annotation>       <complexType mixed="true">         <attribute name="Type"/>         <attributeGroup ref="grPostal"/>         <anyAttribute namespace="##other"/>       </complexType>     </element>     <element ref="Department" minOccurs="0" maxOccurs="unbounded"/>     <element name="MailStop" type="MailStopType" minOccurs="0">       <annotation>         <documentation>A MailStop is where the the mail is delivered to within a premise/subpremise/firm or a facility.</documentation>       </annotation>     </element>     <element ref="PostalCode" minOccurs="0"/>     <any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>   </sequence>   <attribute name="Type"/>   <anyAttribute namespace="##other"/> </complexType>

attribute FirmType/@Type

source

<attribute name="Type"/>

element FirmType/FirmName

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	minOcc  0 maxOcc  unbounded content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation Type               Code               documentation Used by postal services to encode the name of the element.
annotation	documentation Name of the firm
source	<element name="FirmName" minOccurs="0" maxOccurs="unbounded">   <annotation>     <documentation>Name of the firm</documentation>   </annotation>   <complexType mixed="true">     <attribute name="Type"/>     <attributeGroup ref="grPostal"/>     <anyAttribute namespace="##other"/>   </complexType> </element>

attribute FirmType/FirmName/@Type

source

<attribute name="Type"/>

element FirmType/MailStop

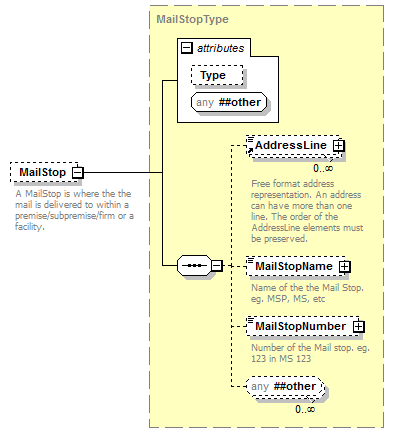

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
type	MailStopType
properties	minOcc  0 maxOcc  1 content  complex
children	AddressLine MailStopName MailStopNumber
attributes	Name   Type   Use   Default   Fixed   Annotation Type
annotation	documentation A MailStop is where the the mail is delivered to within a premise/subpremise/firm or a facility.
source	<element name="MailStop" type="MailStopType" minOccurs="0">   <annotation>     <documentation>A MailStop is where the the mail is delivered to within a premise/subpremise/firm or a facility.</documentation>   </annotation> </element>
