complexType X3DVertexAttributeNode

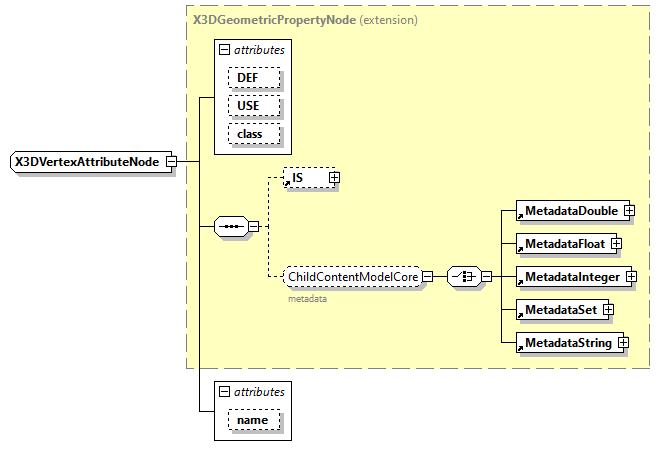

diagram x3d-3.1_diagrams/x3d-3.1_p258.png
type extension of X3DGeometricPropertyNode
properties
base X3DGeometricPropertyNode
abstract true
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements FloatVertexAttribute Matrix3VertexAttribute Matrix4VertexAttribute
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
name  xs:NMTOKEN
appinfo
name attribute is ordinarily required, unless this is a USE node
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shaders"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Base type for all nodes that specify per-vertex attribute information to the shader.
source <xs:complexType name="X3DVertexAttributeNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shaders"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Base type for all nodes that specify per-vertex attribute information to the shader.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/shaders.html#X3DVertexAttributeNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DGeometricPropertyNode">

<xs:attribute name="name" type="xs:NMTOKEN">

<xs:annotation>

<xs:appinfo>name attribute is ordinarily required, unless this is a USE node</xs:appinfo>

<!-- Design note: cannot REQUIRE @name field or else USE nodes incorrectly fail to validate -->

<xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>

</xs:annotation>

</xs:attribute>

</xs:extension>

</xs:complexContent>
</xs:complexType>

attribute X3DVertexAttributeNode/@name
type xs:NMTOKEN
annotation
appinfo
name attribute is ordinarily required, unless this is a USE node
source <xs:attribute name="name" type="xs:NMTOKEN">

<xs:annotation>

<xs:appinfo>name attribute is ordinarily required, unless this is a USE node</xs:appinfo>

<!-- Design note: cannot REQUIRE @name field or else USE nodes incorrectly fail to validate -->

<xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>

</xs:annotation>
</xs:attribute>
