element Text

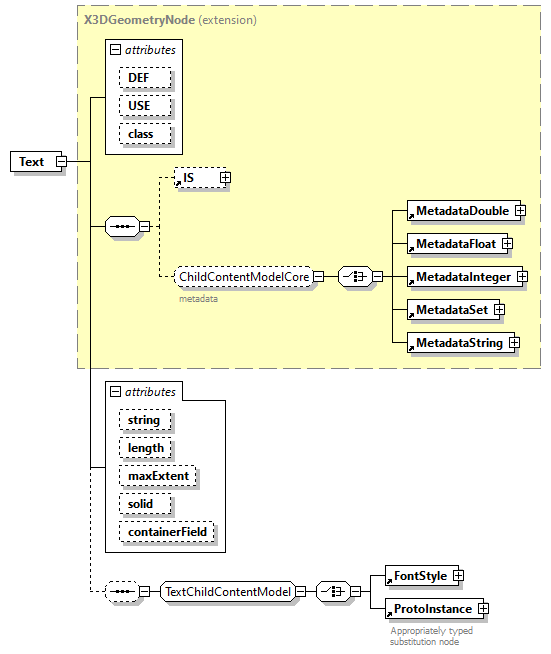

diagram x3d-3.1_diagrams/x3d-3.1_p149.png
type extension of X3DGeometryNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString FontStyle ProtoInstance
used by
group GeometryContentModelImmersive
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
string  MFString
length  MFFloat
appinfo
<xs:minInclusive value="0"/>
maxExtent  derived by: SFFloat    0.0
solid  SFBool    false
containerField  xs:NMTOKEN    geometry
annotation
appinfo
<!-- lineBounds, origin, textBounds in X3D version 3.2 -->
<xs:element name="fontStyle" type="SFNode" fixed="inputOutputField" default="X3DFontStyleNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Text"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="Text">

<xs:annotation>

<xs:appinfo>

<!-- lineBounds, origin, textBounds in X3D version 3.2 -->

<xs:element name="fontStyle" type="SFNode" fixed="inputOutputField" default="X3DFontStyleNode"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Text"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/text.html#Text"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGeometryNode">

<xs:sequence minOccurs="0">

<xs:group ref="TextChildContentModel"/>

</xs:sequence>

<xs:attribute name="string" type="MFString"/>

<xs:attribute name="length" type="MFFloat">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="0"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="maxExtent" default="0.0">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="solid" type="SFBool" default="false"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Text/@string
type MFString
source <xs:attribute name="string" type="MFString"/>

attribute Text/@length
type MFFloat
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
annotation
appinfo
<xs:minInclusive value="0"/>
source <xs:attribute name="length" type="MFFloat">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="0"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute Text/@maxExtent
type restriction of SFFloat
properties
default 0.0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="maxExtent" default="0.0">

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute Text/@solid
type SFBool
properties
default false
source <xs:attribute name="solid" type="SFBool" default="false"/>

attribute Text/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
