element StringSensor

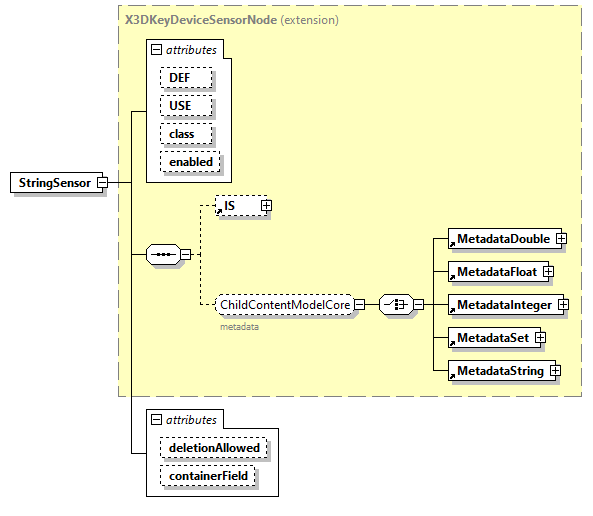

diagram x3d-3.1_diagrams/x3d-3.1_p147.png
type extension of X3DKeyDeviceSensorNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelInteractive
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
enabled  SFBool    true
deletionAllowed  SFBool    true
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="enteredText" type="SFString" fixed="outputOnlyField"/>
<xs:attribute name="finalText" type="SFString" fixed="outputOnlyField"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="KeyDeviceSensor"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="StringSensor">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="enteredText" type="SFString" fixed="outputOnlyField"/>

<xs:attribute name="finalText" type="SFString" fixed="outputOnlyField"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="KeyDeviceSensor"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/keyboard.html#StringSensor"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DKeyDeviceSensorNode">

<xs:attribute name="deletionAllowed" type="SFBool" default="true"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute StringSensor/@deletionAllowed
type SFBool
properties
default true
source <xs:attribute name="deletionAllowed" type="SFBool" default="true"/>

attribute StringSensor/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
