group ShapeChildContentModel

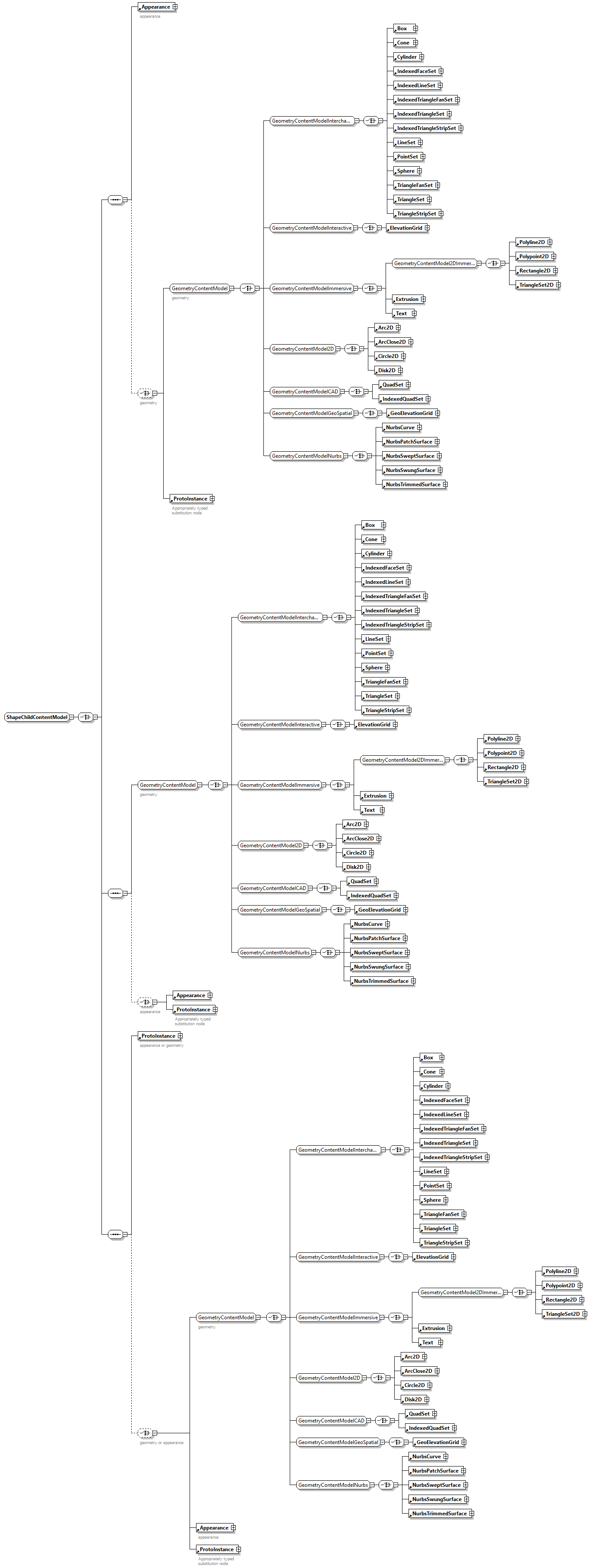

diagram x3d-3.1_diagrams/x3d-3.1_p202.png
children Appearance Box Cone Cylinder IndexedFaceSet IndexedLineSet IndexedTriangleFanSet IndexedTriangleSet IndexedTriangleStripSet LineSet PointSet Sphere TriangleFanSet TriangleSet TriangleStripSet ElevationGrid Polyline2D Polypoint2D Rectangle2D TriangleSet2D Extrusion Text Arc2D ArcClose2D Circle2D Disk2D QuadSet IndexedQuadSet GeoElevationGrid NurbsCurve NurbsPatchSurface NurbsSweptSurface NurbsSwungSurface NurbsTrimmedSurface ProtoInstance
used by
complexType X3DShapeNode
annotation
appinfo
ShapeChildContentModel is the child-node content model utilized by X3DShapeNode.  ShapeChildContentModel can contain a single Appearance node and a single geometry node, in any order.
source <xs:group name="ShapeChildContentModel">

<xs:annotation>

<xs:appinfo>ShapeChildContentModel is the child-node content model utilized by X3DShapeNode.  ShapeChildContentModel can contain a single Appearance node and a single geometry node, in any order.</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/shape.html#Shapenodes"/>

</xs:annotation>

<xs:choice>

<xs:sequence>

<xs:element ref="Appearance">

<xs:annotation>

<xs:documentation>appearance</xs:documentation>

</xs:annotation>

</xs:element>

<xs:choice minOccurs="0">

<xs:annotation>

<xs:documentation>geometry</xs:documentation>

</xs:annotation>

<xs:group ref="GeometryContentModel"/>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

</xs:sequence>

<xs:sequence>

<xs:group ref="GeometryContentModel">

<xs:annotation>

<xs:documentation>geometry</xs:documentation>

</xs:annotation>

</xs:group>

<xs:choice minOccurs="0">

<xs:annotation>

<xs:documentation>appearance</xs:documentation>

</xs:annotation>

<xs:element ref="Appearance"/>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

</xs:sequence>

<xs:sequence>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>appearance or geometry</xs:documentation>

</xs:annotation>

</xs:element>

<xs:choice minOccurs="0">

<xs:annotation>

<xs:documentation>geometry or appearance</xs:documentation>

</xs:annotation>

<xs:group ref="GeometryContentModel">

<xs:annotation>

<xs:documentation>geometry</xs:documentation>

</xs:annotation>

</xs:group>

<xs:element ref="Appearance">

<xs:annotation>

<xs:documentation>appearance</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

</xs:sequence>

</xs:choice>
</xs:group>
