element PointLight

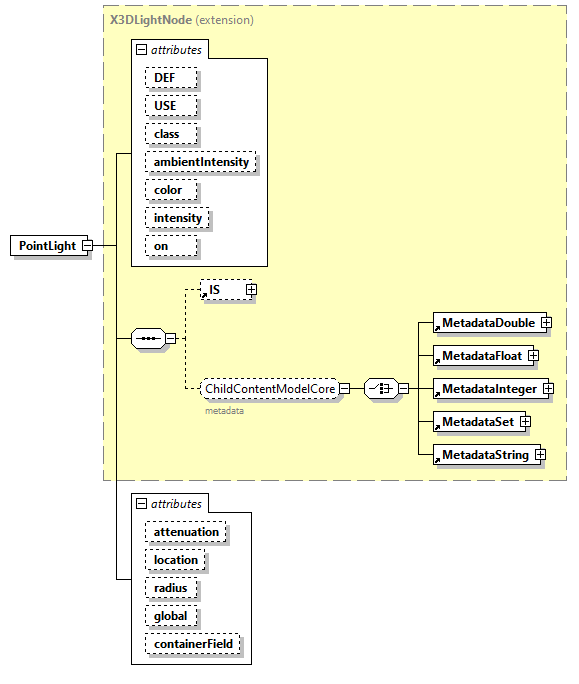

diagram x3d-3.1_diagrams/x3d-3.1_p119.png
type extension of X3DLightNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelInteractive
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
ambientIntensity  unitIntervalType    0
color  SFColor    1 1 1
intensity  unitIntervalType    1
on  SFBool    true
attenuation  SFVec3f    1 0 0
appinfo
<xs:minInclusive value="0"/>
location  SFVec3f    0 0 0
radius  derived by: SFFloat    100
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
global  SFBool    true
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="radius" default="100" fixed="inputOutputField">
<xs:annotation>
<xs:appinfo>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
</xs:appinfo>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="SFFloat">
<xs:minInclusive value="0"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
Linear attenuation may occur at level 2, full support at level 3.
source <xs:element name="PointLight">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="radius" default="100" fixed="inputOutputField">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
Linear attenuation may occur at level 2, full support at level 3.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/lighting.html#PointLight"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DLightNode">

<xs:attribute name="attenuation" type="SFVec3f" default="1 0 0">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="0"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="location" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="radius" default="100">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="global" type="SFBool" default="true"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute PointLight/@attenuation
type SFVec3f
properties
default 1 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation
appinfo
<xs:minInclusive value="0"/>
source <xs:attribute name="attenuation" type="SFVec3f" default="1 0 0">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="0"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute PointLight/@location
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="location" type="SFVec3f" default="0 0 0"/>

attribute PointLight/@radius
type restriction of SFFloat
properties
default 100
facets
Kind Value Annotation
minInclusive 0
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source <xs:attribute name="radius" default="100">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute PointLight/@global
type SFBool
properties
default true
source <xs:attribute name="global" type="SFBool" default="true"/>

attribute PointLight/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
