element Normal

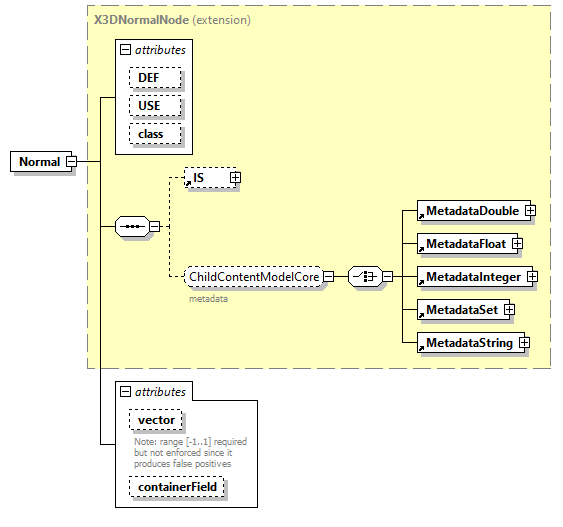

diagram x3d-3.1_diagrams/x3d-3.1_p101.png
type extension of X3DNormalNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements ElevationGrid HAnimHumanoid
groups ColorCoordinateNormalTexCoordContentModel ColorNormalTexCoordContentModel ComposedGeometryContentModel SceneGraphFragmentContentModel
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
vector  MFVec3f
appinfo
<xs:minInclusive value="-1"/>
<xs:maxInclusive value="1"/>
documentation
Note: range [-1..1] required but not enforced since it produces false positives
containerField  containerFieldChoicesX3DNormalNode    normal
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:element name="Normal">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/rendering.html#Normal"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DNormalNode">

<xs:attribute name="vector" type="MFVec3f">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="-1"/>

<xs:maxInclusive value="1"/>

</xs:appinfo>

<xs:documentation>Note: range [-1..1] required but not enforced since it produces false positives</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="containerField" type="containerFieldChoicesX3DNormalNode" default="normal"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Normal/@vector
type MFVec3f
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
annotation
appinfo
<xs:minInclusive value="-1"/>
<xs:maxInclusive value="1"/>
documentation
Note: range [-1..1] required but not enforced since it produces false positives
source <xs:attribute name="vector" type="MFVec3f">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="-1"/>

<xs:maxInclusive value="1"/>

</xs:appinfo>

<xs:documentation>Note: range [-1..1] required but not enforced since it produces false positives</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute Normal/@containerField
type containerFieldChoicesX3DNormalNode
properties
default normal
facets
Kind Value Annotation
enumeration normal
appinfo
parent node is a geometry node
enumeration skinNormal
appinfo
parent node is HAnimHumanoid
source <xs:attribute name="containerField" type="containerFieldChoicesX3DNormalNode" default="normal"/>
