element GeneratedCubeMapTexture

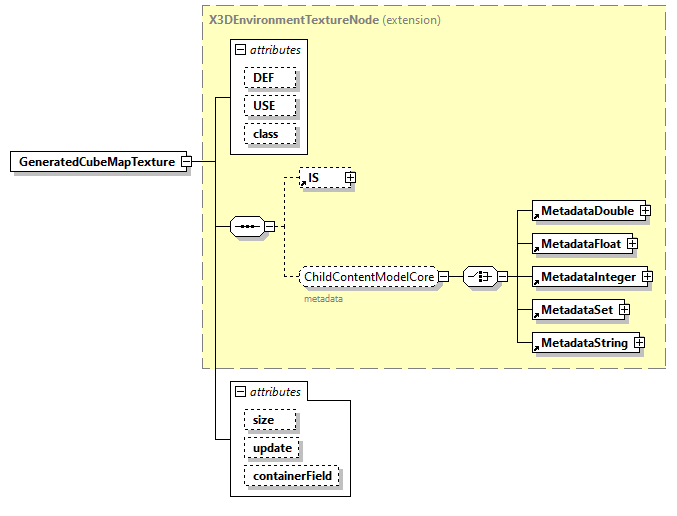

diagram
type	extension of X3DEnvironmentTextureNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	element  MultiTexture group  AppearanceChildContentModelNoProtoInstance
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. size   derived by: SFInt32      128      update   generatedCubeMapTextureUpdateChoices      NONE      containerField   xs:NMTOKEN      texture
annotation	appinfo <xs:attribute name="size" type="SFInt32" default="128" fixed="initializeOnlyField"/> <!-- textureProperties in X3D version 3.2 --> <xs:attribute name="componentName" type="componentNameChoices" fixed="CubeMapTexturing"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source	<xs:element name="GeneratedCubeMapTexture">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="size" type="SFInt32" default="128" fixed="initializeOnlyField"/>       <!-- textureProperties in X3D version 3.2 -->       <xs:attribute name="componentName" type="componentNameChoices" fixed="CubeMapTexturing"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/env_texture.html#GeneratedCubeMapTexture"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DEnvironmentTextureNode">         <xs:attribute name="size" default="128">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minExclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="update" type="generatedCubeMapTextureUpdateChoices" default="NONE"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="texture"/>       </xs:extension>       <!-- textureProperties in X3D version 3.2 -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute GeneratedCubeMapTexture/@size

type	restriction of SFInt32
properties	default  128
facets	Kind  Value  Annotation minExclusive  0
source	<xs:attribute name="size" default="128">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minExclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute GeneratedCubeMapTexture/@update

type	generatedCubeMapTextureUpdateChoices
properties	default  NONE
facets	Kind  Value  Annotation enumeration  NONE appinfo no further texture updates are rendered enumeration  NEXT_FRAME_ONLY appinfo render texture once at end of frame enumeration  ALWAYS appinfo texture to be rendered every frame
source	<xs:attribute name="update" type="generatedCubeMapTextureUpdateChoices" default="NONE"/>

attribute GeneratedCubeMapTexture/@containerField

type	xs:NMTOKEN
properties	default  texture
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="texture"/>
