group AppearanceChildContentModel

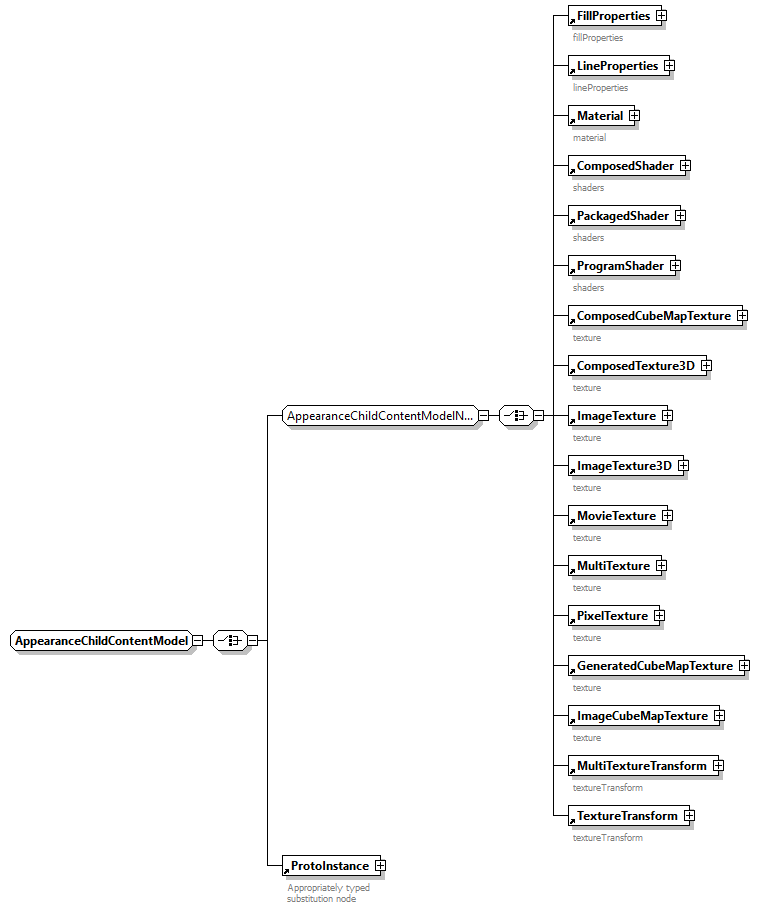

diagram x3d-3.1_diagrams/x3d-3.1_p171.png
children FillProperties LineProperties Material ComposedShader PackagedShader ProgramShader ComposedCubeMapTexture ComposedTexture3D ImageTexture ImageTexture3D MovieTexture MultiTexture PixelTexture GeneratedCubeMapTexture ImageCubeMapTexture MultiTextureTransform TextureTransform ProtoInstance
used by
complexType X3DAppearanceNode
annotation
appinfo
Child-node content model corresponding to X3DAppearanceChildNode.  Appearance can contain FillProperties, LineProperties, Material, any Texture node and any TextureTransform node, in any order. No more than one instance of these nodes is allowed.  Appearance may also contain multiple shaders (ComposedShader, PackagedShader, ProgramShader).
source <xs:group name="AppearanceChildContentModel">

<xs:annotation>

<xs:appinfo>Child-node content model corresponding to X3DAppearanceChildNode.  Appearance can contain FillProperties, LineProperties, Material, any Texture node and any TextureTransform node, in any order. No more than one instance of these nodes is allowed.  Appearance may also contain multiple shaders (ComposedShader, PackagedShader, ProgramShader).</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/shape.html#Appearancenode"/>

</xs:annotation>

<xs:choice>

<xs:group ref="AppearanceChildContentModelNoProtoInstance"/>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>
</xs:group>
