element XvlShell

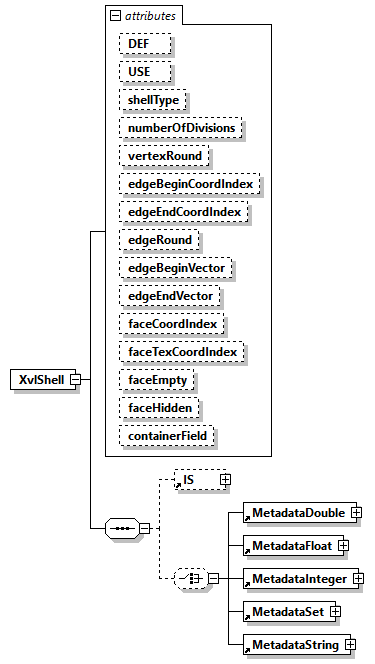

diagram x3d-3.0_diagrams/x3d-3.0_p223.png
properties
content complex
mixed false
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
USE  xs:IDREF
shellType  XvlShell.shellTypes
numberOfDivisions  SFInt32
vertexRound  MFFloat
edgeBeginCoordIndex  MFInt32
edgeEndCoordIndex  MFInt32
edgeRound  MFFloat
edgeBeginVector  MFVec3f
edgeEndVector  MFVec3f
faceCoordIndex  MFInt32
faceTexCoordIndex  MFInt32
faceEmpty  MFBool
faceHidden  MFBool
containerField  xs:NMTOKEN    geometry
source <xs:element name="XvlShell">

<xs:annotation>

<xs:appinfo/>

<xs:documentation/>

</xs:annotation>

<xs:complexType mixed="false">

<xs:sequence>

<xs:element ref="IS" minOccurs="0"/>

<xs:choice minOccurs="0">

<xs:element ref="MetadataDouble"/>

<xs:element ref="MetadataFloat"/>

<xs:element ref="MetadataInteger"/>

<xs:element ref="MetadataSet"/>

<xs:element ref="MetadataString"/>

</xs:choice>

</xs:sequence>

<xs:attribute name="DEF" type="xs:ID"/>

<xs:attribute name="USE" type="xs:IDREF"/>

<xs:attribute name="shellType" type="XvlShell.shellTypes"/>

<xs:attribute name="numberOfDivisions" type="SFInt32"/>

<xs:attribute name="vertexRound" type="MFFloat"/>

<xs:attribute name="edgeBeginCoordIndex" type="MFInt32"/>

<xs:attribute name="edgeEndCoordIndex" type="MFInt32"/>

<xs:attribute name="edgeRound" type="MFFloat"/>

<xs:attribute name="edgeBeginVector" type="MFVec3f"/>

<xs:attribute name="edgeEndVector" type="MFVec3f"/>

<xs:attribute name="faceCoordIndex" type="MFInt32"/>

<xs:attribute name="faceTexCoordIndex" type="MFInt32"/>

<xs:attribute name="faceEmpty" type="MFBool"/>

<xs:attribute name="faceHidden" type="MFBool"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

<!--X3DGeometryNode-->

</xs:complexType>
</xs:element>

attribute XvlShell/@DEF
type xs:ID
source <xs:attribute name="DEF" type="xs:ID"/>

attribute XvlShell/@USE
type xs:IDREF
source <xs:attribute name="USE" type="xs:IDREF"/>

attribute XvlShell/@shellType
type XvlShell.shellTypes
facets
Kind Value Annotation
enumeration POLYGON_MESH
enumeration LATTICE_MESH
source <xs:attribute name="shellType" type="XvlShell.shellTypes"/>

attribute XvlShell/@numberOfDivisions
type SFInt32
source <xs:attribute name="numberOfDivisions" type="SFInt32"/>

attribute XvlShell/@vertexRound
type MFFloat
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="vertexRound" type="MFFloat"/>

attribute XvlShell/@edgeBeginCoordIndex
type MFInt32
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
source <xs:attribute name="edgeBeginCoordIndex" type="MFInt32"/>

attribute XvlShell/@edgeEndCoordIndex
type MFInt32
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
source <xs:attribute name="edgeEndCoordIndex" type="MFInt32"/>

attribute XvlShell/@edgeRound
type MFFloat
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="edgeRound" type="MFFloat"/>

attribute XvlShell/@edgeBeginVector
type MFVec3f
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="edgeBeginVector" type="MFVec3f"/>

attribute XvlShell/@edgeEndVector
type MFVec3f
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="edgeEndVector" type="MFVec3f"/>

attribute XvlShell/@faceCoordIndex
type MFInt32
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
source <xs:attribute name="faceCoordIndex" type="MFInt32"/>

attribute XvlShell/@faceTexCoordIndex
type MFInt32
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
source <xs:attribute name="faceTexCoordIndex" type="MFInt32"/>

attribute XvlShell/@faceEmpty
type MFBool
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*((true|false)\s*,?\s*)*
source <xs:attribute name="faceEmpty" type="MFBool"/>

attribute XvlShell/@faceHidden
type MFBool
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*((true|false)\s*,?\s*)*
source <xs:attribute name="faceHidden" type="MFBool"/>

attribute XvlShell/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
