complexType X3DSequencerNode

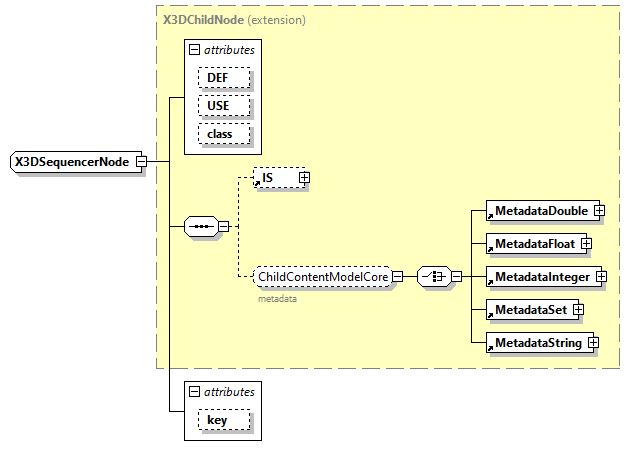

diagram x3d-3.0_diagrams/x3d-3.0_p211.png
type extension of X3DChildNode
properties
base X3DChildNode
abstract true
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements BooleanSequencer IntegerSequencer
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
key  MFFloat
annotation
appinfo
<xs:attribute name="next" type="SFBool" fixed="inputOnlyField"/>
<xs:attribute name="previous" type="SFBool" fixed="inputOnlyField"/>
<xs:attribute name="set_fraction" type="SFFloat" fixed="inputOnlyField"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EventUtilities"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Base type from which all Sequencers are derived.
source <xs:complexType name="X3DSequencerNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="next" type="SFBool" fixed="inputOnlyField"/>

<xs:attribute name="previous" type="SFBool" fixed="inputOnlyField"/>

<xs:attribute name="set_fraction" type="SFFloat" fixed="inputOnlyField"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EventUtilities"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Base type from which all Sequencers are derived.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/utils.html#X3DSequencerNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DChildNode">

<xs:attribute name="key" type="MFFloat"/>

</xs:extension>

</xs:complexContent>
</xs:complexType>

attribute X3DSequencerNode/@key
type MFFloat
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="key" type="MFFloat"/>
