element Text

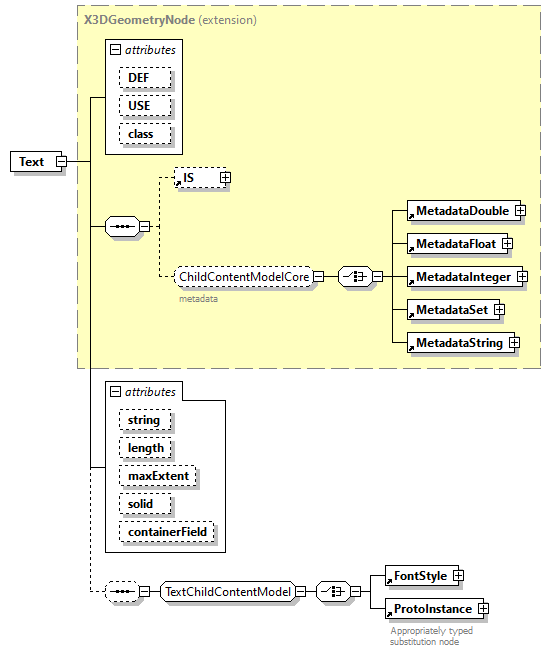

diagram x3d-3.0_diagrams/x3d-3.0_p127.png
type extension of X3DGeometryNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString FontStyle ProtoInstance
used by
group GeometryContentModelImmersive
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
string  MFString
length  MFFloat
appinfo
<xs:minInclusive value="0"/>
maxExtent  derived by: SFFloat    0.0
solid  SFBool    false
containerField  xs:NMTOKEN    geometry
annotation
appinfo
<!-- lineBounds, origin, textBounds in X3D version 3.2 -->
<xs:element name="fontStyle" type="SFNode" fixed="inputOutputField" default="X3DFontStyleNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Text"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="Text">
  <xs:annotation>
    <xs:appinfo>
      <!-- lineBounds, origin, textBounds in X3D version 3.2 -->
      <xs:element name="fontStyle" type="SFNode" fixed="inputOutputField" default="X3DFontStyleNode"/>
      <xs:attribute name="componentName" type="componentNameChoices" fixed="Text"/>
      <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
    </xs:appinfo>
    <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/text.html#Text"/>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="X3DGeometryNode">
        <xs:sequence minOccurs="0">
          <xs:group ref="TextChildContentModel"/>
        </xs:sequence>
        <xs:attribute name="string" type="MFString"/>
        <xs:attribute name="length" type="MFFloat">
          <xs:annotation>
            <xs:appinfo>
              <xs:minInclusive value="0"/>
            </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="maxExtent" default="0.0">
          <!-- type="SFFloatNonNegative" -->
          <xs:simpleType>
            <xs:restriction base="SFFloat">
              <xs:minInclusive value="0"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="solid" type="SFBool" default="false"/>
        <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

attribute Text/@string
type MFString
source <xs:attribute name="string" type="MFString"/>

attribute Text/@length
type MFFloat
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
annotation
appinfo
<xs:minInclusive value="0"/>
source <xs:attribute name="length" type="MFFloat">
  <xs:annotation>
    <xs:appinfo>
      <xs:minInclusive value="0"/>
    </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute Text/@maxExtent
type restriction of SFFloat
properties
default 0.0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="maxExtent" default="0.0">
  <!-- type="SFFloatNonNegative" -->
  <xs:simpleType>
    <xs:restriction base="SFFloat">
      <xs:minInclusive value="0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute Text/@solid
type SFBool
properties
default false
source <xs:attribute name="solid" type="SFBool" default="false"/>

attribute Text/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
