element NurbsSweptSurface

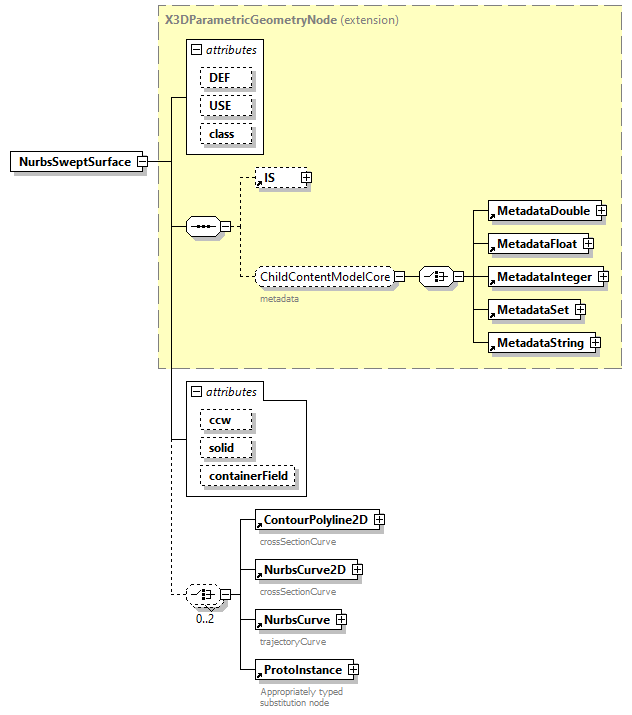

diagram x3d-3.0_diagrams/x3d-3.0_p94.png
type extension of X3DParametricGeometryNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString ContourPolyline2D NurbsCurve2D NurbsCurve ProtoInstance
used by
element NurbsSet
group GeometryContentModelNurbs
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
ccw  SFBool    true
solid  SFBool    true
containerField  xs:NMTOKEN    geometry
annotation
appinfo
<xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/>
<xs:element name="crossSectionCurve" type="SFNode" fixed="inputOutputField" default="X3DNurbsControlCurveNode"/>
<xs:element name="trajectoryCurve" type="SFNode" fixed="inputOutputField" default="NurbsCurve"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source <xs:element name="NurbsSweptSurface">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/>

<xs:element name="crossSectionCurve" type="SFNode" fixed="inputOutputField" default="X3DNurbsControlCurveNode"/>

<xs:element name="trajectoryCurve" type="SFNode" fixed="inputOutputField" default="NurbsCurve"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/nurbs.html#NurbsSweptSurface"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DParametricGeometryNode">

<xs:choice minOccurs="0" maxOccurs="2">

<xs:element ref="ContourPolyline2D">

<xs:annotation>

<xs:documentation>crossSectionCurve</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element ref="NurbsCurve2D">

<xs:annotation>

<xs:documentation>crossSectionCurve</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element ref="NurbsCurve">

<xs:annotation>

<xs:documentation>trajectoryCurve</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

<xs:attribute name="ccw" type="SFBool" default="true"/>

<xs:attribute name="solid" type="SFBool" default="true"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

</xs:extension>

<!-- TODO see if nondeterministic content model can avoid improper selection of child nodes -->

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute NurbsSweptSurface/@ccw
type SFBool
properties
default true
source <xs:attribute name="ccw" type="SFBool" default="true"/>

attribute NurbsSweptSurface/@solid
type SFBool
properties
default true
source <xs:attribute name="solid" type="SFBool" default="true"/>

attribute NurbsSweptSurface/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
