element NurbsPatchSurface

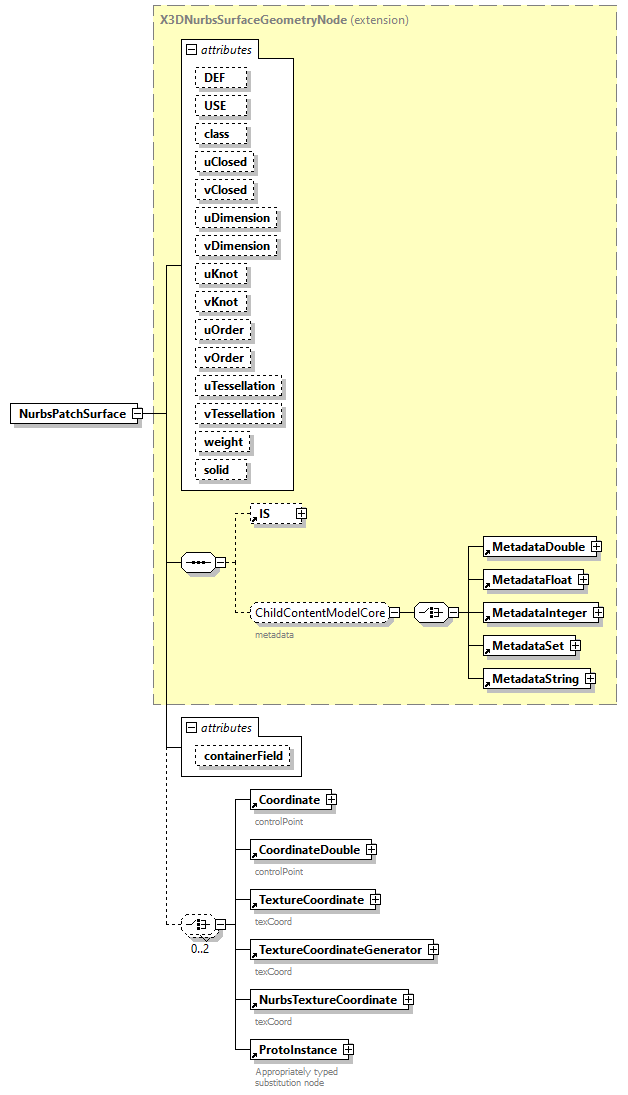

diagram x3d-3.0_diagrams/x3d-3.0_p90.png
type extension of X3DNurbsSurfaceGeometryNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Coordinate CoordinateDouble TextureCoordinate TextureCoordinateGenerator NurbsTextureCoordinate ProtoInstance
used by
element NurbsSet
group GeometryContentModelNurbs
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
uClosed  SFBool    false
vClosed  SFBool    false
uDimension  derived by: SFInt32    0
vDimension  derived by: SFInt32    0
uKnot  MFDouble
vKnot  MFDouble
uOrder  derived by: SFInt32    3
vOrder  derived by: SFInt32    3
uTessellation  SFInt32    0
vTessellation  SFInt32    0
weight  MFDouble
appinfo
<xs:minExclusive value="0"/>
solid  SFBool    true
containerField  xs:NMTOKEN    geometry
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="NurbsPatchSurface">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/nurbs.html#NurbsPatchSurface"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DNurbsSurfaceGeometryNode">

<xs:choice minOccurs="0" maxOccurs="2">

<xs:element ref="Coordinate">

<xs:annotation>

<xs:documentation>controlPoint</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element ref="CoordinateDouble">

<xs:annotation>

<xs:documentation>controlPoint</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element ref="TextureCoordinate">

<xs:annotation>

<xs:documentation>texCoord</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element ref="TextureCoordinateGenerator">

<xs:annotation>

<xs:documentation>texCoord</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element ref="NurbsTextureCoordinate">

<xs:annotation>

<xs:documentation>texCoord</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute NurbsPatchSurface/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
