element Box

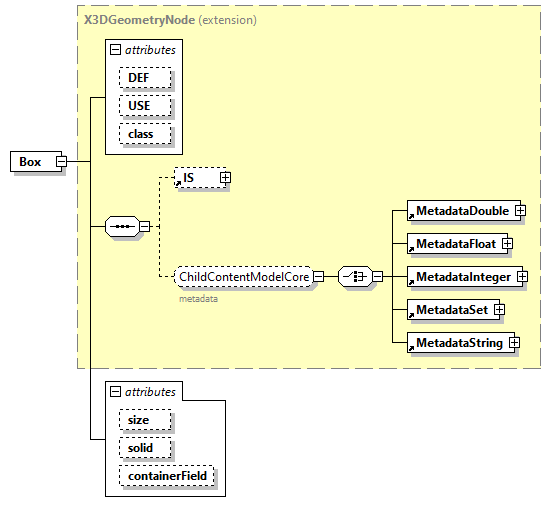

diagram x3d-3.0_diagrams/x3d-3.0_p12.png
type extension of X3DGeometryNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group GeometryContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
size  SFVec3f    2 2 2
solid  SFBool    true
containerField  xs:NMTOKEN    geometry
annotation
appinfo
<xs:attribute name="size" type="SFVec3f" default="2 2 2" fixed="initializeOnlyField"/>
<xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Geometry3D"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="Box">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="size" type="SFVec3f" default="2 2 2" fixed="initializeOnlyField"/>

<xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Geometry3D"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/geometry3D.html#Box"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DGeometryNode">

<xs:attribute name="size" type="SFVec3f" default="2 2 2"/>

<xs:attribute name="solid" type="SFBool" default="true"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Box/@size
type SFVec3f
properties
default 2 2 2
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="size" type="SFVec3f" default="2 2 2"/>

attribute Box/@solid
type SFBool
properties
default true
source <xs:attribute name="solid" type="SFBool" default="true"/>

attribute Box/@containerField
type xs:NMTOKEN
properties
default geometry
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
