Schema definition ProximitySensor

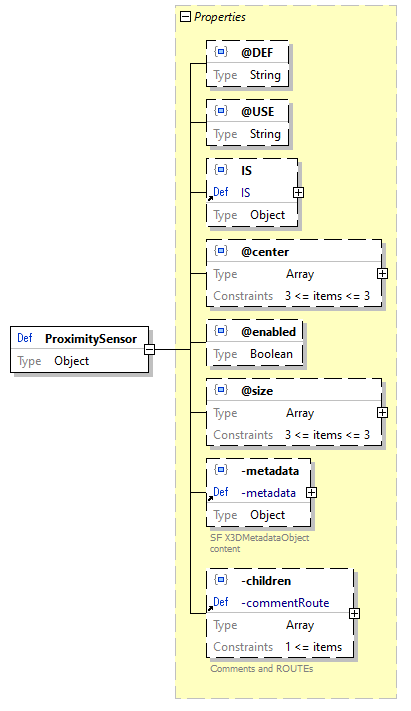

diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2402.png
location C:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type Object
properties
Name   Occurrence
@DEF   Optional
@USE   Optional
IS   Optional
@center   Optional
@enabled   Optional
@size   Optional
-metadata   Optional
-children   Optional
used by Scene / -children > array items [0]+ / Schema / ProximitySensor
-allNodes > array items [0]+ / Schema / ProximitySensor
-child / ProximitySensor
-children > array items [0]+ / Schema / ProximitySensor
source code "ProximitySensor": {
    "type": "object",
    "properties": {
        "@DEF": {
            "type": "string"
        },
        "@USE": {
            "type": "string"
        },
        "IS": {
            "$ref": "#/definitions/IS"
        },
        "@center": {
            "type": "array",
            "minItems": 3,
            "maxItems": 3,
            "items": {
                "type": "number",
                "default": 0
            }
        },
        "@enabled": {
            "type": "boolean",
            "default": true
        },
        "@size": {
            "type": "array",
            "minItems": 3,
            "maxItems": 3,
            "items": {
                "type": "number",
                "minimum": 0,
                "default": 0
            }
        },
        "-metadata": {
            "$ref": "#/definitions/-metadata"
        },
        "-children": {
            "$ref": "#/definitions/-commentRoute"
        }
    },
    "additionalProperties": false
}

Property ProximitySensor / @DEF
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2403.png
property details
Occurrence  Optional
type String
source code "@DEF": {
    "type": "string"
}

Property ProximitySensor / @USE
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2404.png
property details
Occurrence  Optional
type String
source code "@USE": {
    "type": "string"
}

Property ProximitySensor / IS
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2405.png
property details
Occurrence  Optional
reference IS
source code "IS": {
    "$ref": "#/definitions/IS"
}

Property ProximitySensor / @center

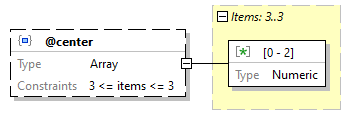

diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2406.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  3
Max Items  3
array items
[0 - 2]  Schema
source code "@center": {
    "type": "array",
    "minItems": 3,
    "maxItems": 3,
    "items": {
        "type": "number",
        "default": 0
    }
}

Array item wildcard ProximitySensor / @center > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2407.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Property ProximitySensor / @enabled
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2408.png
property details
Occurrence  Optional
schema details
Default  true
type Boolean
source code "@enabled": {
    "type": "boolean",
    "default": true
}

Property ProximitySensor / @size
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2409.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  3
Max Items  3
array items
[0 - 2]  Schema
source code "@size": {
    "type": "array",
    "minItems": 3,
    "maxItems": 3,
    "items": {
        "type": "number",
        "minimum": 0,
        "default": 0
    }
}

Array item wildcard ProximitySensor / @size > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2410.png
schema details
Default  0
type Numeric
numeric constraints
Minimum  0
source code {
    "type": "number",
    "minimum": 0,
    "default": 0
}

Property ProximitySensor / -metadata
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2411.png
property details
Occurrence  Optional
reference -metadata
source code "-metadata": {
    "$ref": "#/definitions/-metadata"
}

Property ProximitySensor / -children
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p2412.png
property details
Occurrence  Optional
reference -commentRoute
source code "-children": {
    "$ref": "#/definitions/-commentRoute"
}
