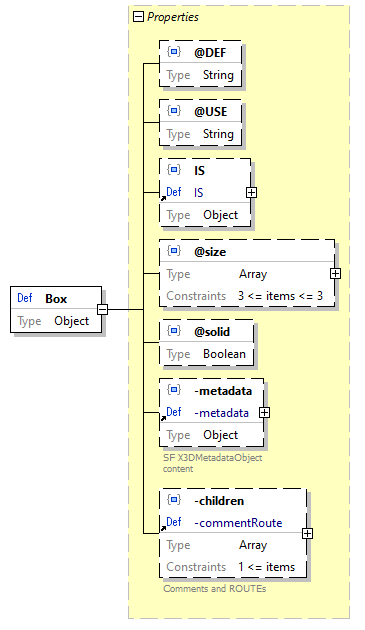

Schema definition Box
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p183.png
location C:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type Object
properties
Name   Occurrence
@DEF   Optional
@USE   Optional
IS   Optional
@size   Optional
@solid   Optional
-metadata   Optional
-children   Optional
used by PrimitivePickSensor / -pickingGeometry > array items [0]+ / Schema / Box
-allNodes > array items [0]+ / Schema / Box
-geometry / Box
-massDensityModel / Box
source code "Box": {
    "type": "object",
    "properties": {
        "@DEF": {
            "type": "string"
        },
        "@USE": {
            "type": "string"
        },
        "IS": {
            "$ref": "#/definitions/IS"
        },
        "@size": {
            "type": "array",
            "minItems": 3,
            "maxItems": 3,
            "items": {
                "type": "number",
                "default": 2
            }
        },
        "@solid": {
            "type": "boolean",
            "default": true
        },
        "-metadata": {
            "$ref": "#/definitions/-metadata"
        },
        "-children": {
            "$ref": "#/definitions/-commentRoute"
        }
    },
    "additionalProperties": false
}

Property Box / @DEF
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p184.png
property details
Occurrence  Optional
type String
source code "@DEF": {
    "type": "string"
}

Property Box / @USE
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p185.png
property details
Occurrence  Optional
type String
source code "@USE": {
    "type": "string"
}

Property Box / IS
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p186.png
property details
Occurrence  Optional
reference IS
source code "IS": {
    "$ref": "#/definitions/IS"
}

Property Box / @size
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p187.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  3
Max Items  3
array items
[0 - 2]  Schema
source code "@size": {
    "type": "array",
    "minItems": 3,
    "maxItems": 3,
    "items": {
        "type": "number",
        "default": 2
    }
}

Array item wildcard Box / @size > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p188.png
schema details
Default  2
type Numeric
source code {
    "type": "number",
    "default": 2
}

Property Box / @solid
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p189.png
property details
Occurrence  Optional
schema details
Default  true
type Boolean
source code "@solid": {
    "type": "boolean",
    "default": true
}

Property Box / -metadata
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p190.png
property details
Occurrence  Optional
reference -metadata
source code "-metadata": {
    "$ref": "#/definitions/-metadata"
}

Property Box / -children
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p191.png
property details
Occurrence  Optional
reference -commentRoute
source code "-children": {
    "$ref": "#/definitions/-commentRoute"
}
