[x3d-public] X3DOM dev url changed, HTML invocation questions

John Carlson yottzumm at gmail.com
Tue Jul 15 12:11:28 PDT 2025


Another option is to run Apache in Docker, this may be helpful (I’m sure
there are others). This one sets up a websockets reverse proxy to interact
with a node.js server running JSONverse/socket.io.

https://github.com/coderextreme/Apacheverse


The only real issue is finding the IP address of the web server.  I have
scripts on my old machine.

So you can have a local dev environment that looks a lot like production.

John

On Tue, Jul 15, 2025 at 1:21 PM John Carlson <yottzumm at gmail.com> wrote:

> One more thing, if you bring up Edge, there’s a Copilot icon that can give
> useful information about the error.
>
> Best of luck.
>
> John
> On Tue, Jul 15, 2025 at 1:01 PM Don Brutzman via x3d-public <
> x3d-public at web3d.org> wrote:
>
>> Interesting... I pulled down a fresh copy of Firefox and tested there as
>> well.  Once again, no images loaded into the X3DOM scene.
>>
>> These images should be legal and allowed by X3DOM, they are in a direct
>> subdirectory beneath the X3DOM page in question.  They would be allowed in
>> any other HTML page.
>>

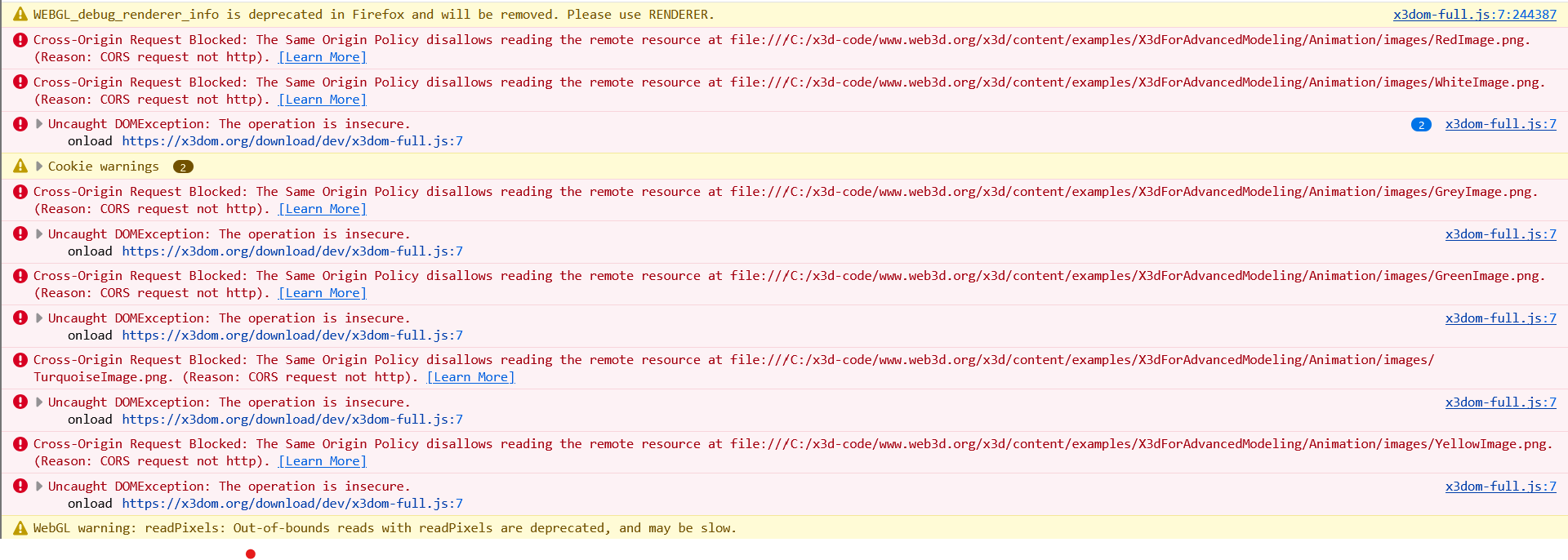

>> Possible approach: perhaps x3dom.js can catch the exception and treat it
>> as OK, when appropriate?   The following debugger screenshot from Firefox
>> hints at that possibility, i.e. "Uncaught DOMException"
>>
>> [image: image.png]
>>
>> (Opinion: running a local CORS server is of course a workaround, but that
>> means development/testing with a difference setup than deployment, slowing
>> efforts and introducing other potential issues.  So relaxing this
>> overzealous restriction on local content loading local content seems
>> worthwhile.)
>>
>> all the best, Don
>>
>> On Tue, Jul 15, 2025 at 4:40 AM vmarchetti--- via x3d-public <
>> x3d-public at web3d.org> wrote:
>>
>>> I think these errors are a result of web browser configuration or policy
>>> rathen than a change in the x3dom code.
>>>
>>> I am seeing the reported problem in loading ImageTexture resources from
>>> the local file system in my install of Chrome, but not in Firefox. That
>>> leads me to think it's a difference in how each browser is interpreting the
>>> security risk of reading a local file through an XHR request, an issue
>>> related to the CORS specification.
>>>
>>> Vince Marchetti
>>>
>>> On Jul 14, 2025, at 9:08 PM, Don Brutzman via x3d-public <
>>> x3d-public at web3d.org> wrote:
>>>
>>> Thank you Andreas.  I have
>>>
>>>    - taken out the CSS for SANS, SERIF, TYPEWRITER
>>>    - updated the node-list url,
>>>    - tested both updated addresses for x3dom-full.js
>>>
>>> Here are two examples using your preferred address:
>>>
>>>    -
>>>    https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/Animation/BoxSwitchX3dom.xhtml
>>>    -
>>>    https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/Animation/RotationCalculatorExampleX3dom.xhtml
>>>
>>> However, a problem has emerged.  Neither model is displaying image
>>> textures when launched on local host.
>>> ERROR: [Utils|createTexture2D] Can't http request: images/WhiteImage.png
>>> ERROR: [Utils|createTexture2D] Can't http request: images/YellowImage.png
>>> ERROR: [Utils|createTexture2D] Can't http request:
>>> images/TurquoiseImage.png
>>> ERROR: [Utils|createTexture2D] Can't http request: images/GreenImage.png
>>> ERROR: [Utils|createTexture2D] Can't http request: images/GreyImage.png
>>> ERROR: [Utils|createTexture2D] Can't http request: images/RedImage.png
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>> <image.png>
>>>
>>> Hopefully this is a fixable issue, TIA for any scrutiny.  This was a
>>> very useful capability when invoking the original
>>> https://x3dom.org/download/dev/x3dom-full.js
>>>
>>> all the best, Don
>>>
>>> On Sun, Jul 13, 2025 at 8:45 PM Andreas Plesch <andreasplesch at gmail.com>
>>> wrote:
>>>
>>>> Answers below.
>>>>
>>>> On Sun, Jul 13, 2025 at 2:21 PM Don Brutzman <don.brutzman at gmail.com>
>>>> wrote:
>>>>
>>>>> Andreas writes on 10 JUL 2025:
>>>>>
>>>>>> I have deployed a new dev version.
>>>>>> Please note that the download link for the dev version of x3dom has
>>>>>> migrated from x3dom.org/download/dev (not updated) to
>>>>>> https://cdn.jsdelivr.net/gh/x3dom/x3dom-dev/dist/x3dom.js (preferred)
>>>>>> or
>>>>>> https://x3dom.github.io/x3dom-dev/dist/x3dom.js
>>>>>> which is
>>>>>> automatically updated through
>>>>>> https://github.com/x3dom/x3dom-dev
>>>>>> for every merged PR at
>>>>>> https://github.com/x3dom/x3dom
>>>>>> The netlify link is obsolete.
>>>>>
>>>>>
>>>>>> Andreas
>>>>>
>>>>>
>>>>> Thanks for the alert.  I am hoping to get the address and invocation
>>>>> correct in our X3D Example Archives scenes by updating the conversion
>>>>> stylesheet.
>>>>>
>>>>>    - X3D Example Archives
>>>>>    -
>>>>>    https://www.web3d.org/x3d/content/examples/X3dResources.html#Examples
>>>>>    -
>>>>>    https://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/x3d/stylesheets/X3dToX3domX_ITE.xslt
>>>>>
>>>>> The X3dToX3domX_ITE.xslt stylesheet produces the following header in
>>>>> these examples:
>>>>>
>>>>>    - X3D Example Archives: X3D4WA, X3D for Web Authors, Chapter 01
>>>>>    Technical Overview, Hello World
>>>>>    -
>>>>>    https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter01TechnicalOverview/HelloWorldIndex.html
>>>>>    -
>>>>>    https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter01TechnicalOverview/HelloWorldX3dom.xhtml
>>>>>
>>>>> <!DOCTYPE html>
>>>>>
>>>>> <!--
>>>>> =================================================================== -->
>>>>>
>>>>> <!-- embedded X3D scene appears after html/head/script and style
>>>>> entries -->
>>>>>
>>>>> <!--
>>>>> =================================================================== -->
>>>>>
>>>>> <html xmlns="http://www.w3.org/1999/xhtml">
>>>>>
>>>>> <head>
>>>>>
>>>>> <title>Hello World!, HelloWorld.x3d (X3DOM)</title>
>>>>>
>>>>> <meta http-equiv="X-UA-Compatible" content="chrome=1,IE=edge"/>
>>>>>
>>>>> <meta http-equiv="Content-Type" content="text/html;charset=utf-8"/>
>>>>>
>>>>> <meta name="generator"
>>>>>
>>>>> content="https://www.web3d.org/x3d/stylesheets/X3dToX3domX_ITE.xslt"/>
>>>>>
>>>>> <script type="text/javascript" src="
>>>>> https://ajax.googleapis.com/ajax/libs/jquery/3.2.1/jquery.min.js">
>>>>> </script>
>>>>>
>>>>> <!-- Numbered X3DOM release versions: https://www.x3dom.org/download
>>>>> -->
>>>>>
>>>>> <!-- Developer X3DOM release version:
>>>>> https://www.x3dom.org/download/dev -->
>>>>>
>>>>> <link rel="stylesheet"
>>>>>
>>>>> type="text/css"
>>>>>
>>>>> href="https://x3dom.org/download/dev/x3dom.css"/>
>>>>>
>>>>> <script type="text/javascript"
>>>>>
>>>>> src="https://x3dom.org/download/dev/x3dom-full.js"/>
>>>>>
>>>>>
>>>>> Questions please, before I start a major rebuild:
>>>>>
>>>>>    1. *x3dom.js or x3dom-full.js ? (both look to be available)*
>>>>>
>>>>> x3dom-full.js
>>>>
>>>>>
>>>>>    1. *Same treatment for x3dom.css or is it no longer used?*
>>>>>
>>>>> Yes, same treatment. It is still used.
>>>>
>>>>>
>>>>>    1. *What is up-to-date guidance whenText node is included?*  I have
>>>>>
>>>>>
>>>>>    - "X3DOM Text Example
>>>>>    The following scenes demonstrate the use of the text and fontsyle
>>>>>    nodes. You can also use web fonts, however on windows there is a glitch.
>>>>>    You have to use and display the font in your document before you can use
>>>>>    them in X3DOM."
>>>>>    - https://x3dom.org/x3dom/example/x3dom_text.html
>>>>>
>>>>> <meta name="warning"
>>>>>
>>>>> content="Webfonts must be loaded prior to using Text node in X3D
>>>>> scene... see https://x3dom.org/x3dom/example/x3dom_text.html"/>
>>>>>
>>>>> <!-- X3DOM needs Web Fonts when an X3D Text node is included -->
>>>>>
>>>>> <!-- adapted from https://x3dom.org/x3dom/example/x3dom_text.html and
>>>>> https://web.mit.edu/jmorzins/www/fonts.html -->
>>>>>
>>>>> <style type="text/css">
>>>>>
>>>>> /*
>>>>> =============================================================================
>>>>> */
>>>>>
>>>>> @font-face {
>>>>>
>>>>> font-family: 'SERIF'; /* default original */
>>>>>
>>>>> font-style: normal;
>>>>>
>>>>> font-weight: 700;
>>>>>
>>>>> src: local('Roman'), url('Roman.ttf') format('truetype');
>>>>>
>>>>> }
>>>>>
>>>>> @font-face {
>>>>>
>>>>> font-family: 'SERIF'; /* default alternate */
>>>>>
>>>>> font-style: normal;
>>>>>
>>>>> font-weight: 700;
>>>>>
>>>>> src: local('Times New Roman'), local('TimesNewRoman'), url('Times New
>>>>> Roman.ttf') format('truetype');
>>>>>
>>>>> }
>>>>>
>>>>> /*
>>>>> =============================================================================
>>>>> */
>>>>>
>>>>> @font-face {
>>>>>
>>>>> font-family: 'SANS'; /* default original */
>>>>>
>>>>> font-style: normal;
>>>>>
>>>>> font-weight: 400;
>>>>>
>>>>> src: local('Arial'), url('Arial.ttf') format('truetype');
>>>>>
>>>>> }
>>>>>
>>>>> @font-face {
>>>>>
>>>>> font-family: 'SANS'; /* default alternate */
>>>>>
>>>>> font-style: normal;
>>>>>
>>>>> font-weight: 400;
>>>>>
>>>>> src: local('Helvetica'), url('Helvetica.ttf') format('truetype');
>>>>>
>>>>> }
>>>>>
>>>>> /*
>>>>> =============================================================================
>>>>> */
>>>>>
>>>>> @font-face {
>>>>>
>>>>> font-family: 'TYPEWRITER'; /* default original */
>>>>>
>>>>> font-style: normal;
>>>>>
>>>>> font-weight: 900;
>>>>>
>>>>> src: local('Courier'), url('Courier.ttf') format('truetype');
>>>>>
>>>>> }
>>>>>
>>>>> @font-face {
>>>>>
>>>>> font-family: 'TYPEWRITER'; /* default alternate */
>>>>>
>>>>> font-style: normal;
>>>>>
>>>>> font-weight: 900;
>>>>>
>>>>> src: local('Courier New'), url('Courier New.ttf') format('truetype');
>>>>>
>>>>> }
>>>>>
>>>>> /*
>>>>> =============================================================================
>>>>> */
>>>>>
>>>>> </style>
>>>>>
>>>>> <style type="text/css" media="screen, print">
>>>>>
>>>>> .webfont { font-size:200%; font-family:'TYPEWRITER'; color:green;} /*
>>>>> Conversion TODO font families: SANS SERIF TYPEWRITER */
>>>>>
>>>>> </style>
>>>>>
>>>>>
>>>> I think this guidance still applies for custom font families if a
>>>> FontLibrary node is not used. FontLibrary font loading does not require
>>>> this css. Also, all basic X3D font families do not require css.
>>>> https://github.com/x3dom/x3dom/blob/master/test/functional/fonts.html
>>>> has examples.
>>>>
>>>>
>>>>> and
>>>>>
>>>>> *4. Is the following still the best up-to-date list of supported
>>>>> nodes?*
>>>>>
>>>>> https://andreasplesch.github.io/x3dom/dist/doc/author/nodes.html
>>>>>
>>>>> P.S. node wish list: IndexedTriangleFanSet, Script
>>>>>
>>>>>
>>>> https://x3dom.github.io/x3dom-dev/dist/doc
>>>>
>>>> would be the best source for up to date documentation on supported
>>>> nodes with dev releases as it is built and deployed along with the library.
>>>>
>>>>
>>>> Thanks in advance for all improvements to these invocations, and thanks
>>>>> as ever for ongoing progress with X3DOM!
>>>>>
>>>>> all the best, Don
>>>>>
>>>>
>>>> All the best, Andreas
>>>> --
>>>> Andreas Plesch
>>>> Waltham, MA 02453
>>>>
