[x3d-public] X3DOM dev url changed, HTML invocation questions
John Carlson
yottzumm at gmail.com
Tue Jul 15 11:21:42 PDT 2025
One more thing, if you bring up Edge, there’s a Copilot icon that can give
useful information about the error.
Best of luck.
John
On Tue, Jul 15, 2025 at 1:01 PM Don Brutzman via x3d-public <
x3d-public at web3d.org> wrote:
> Interesting... I pulled down a fresh copy of Firefox and tested there as
> well. Once again, no images loaded into the X3DOM scene.
>
> These images should be legal and allowed by X3DOM, they are in a direct
> subdirectory beneath the X3DOM page in question. They would be allowed in
> any other HTML page.
>
> Possible approach: perhaps x3dom.js can catch the exception and treat it

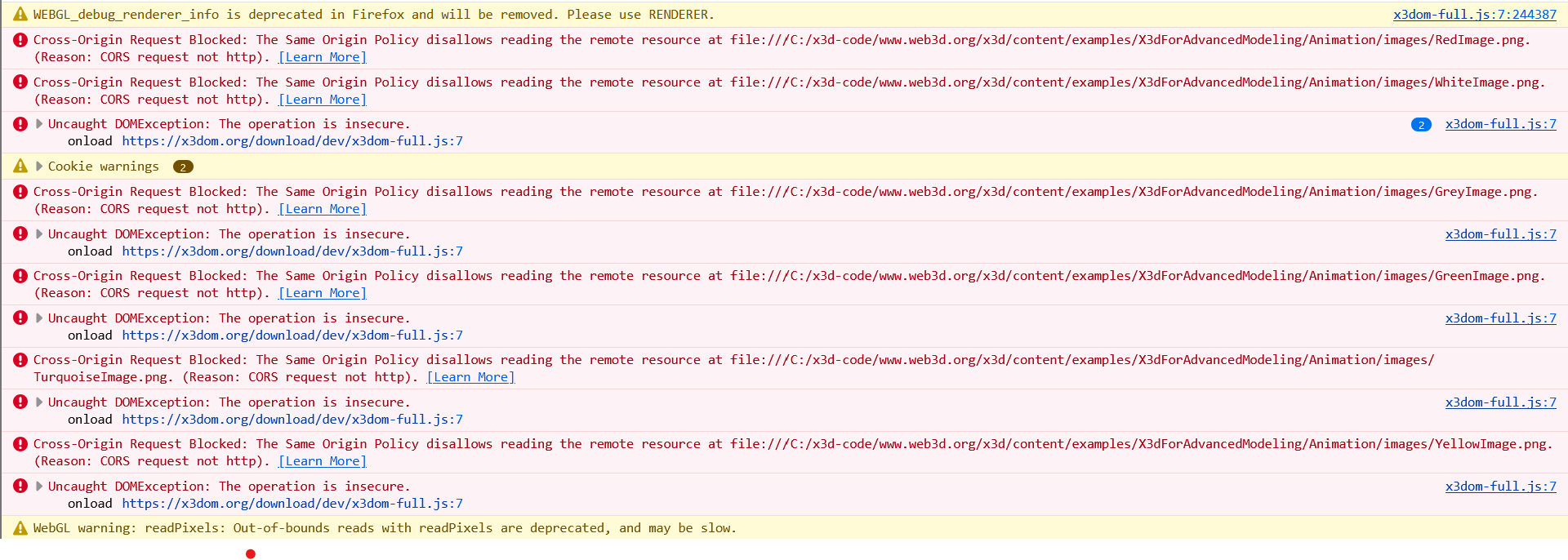

> as OK, when appropriate? The following debugger screenshot from Firefox
> hints at that possibility, i.e. "Uncaught DOMException"
>
> [image: image.png]
>
> (Opinion: running a local CORS server is of course a workaround, but that
> means development/testing with a difference setup than deployment, slowing
> efforts and introducing other potential issues. So relaxing this
> overzealous restriction on local content loading local content seems
> worthwhile.)
>
> all the best, Don
>
> On Tue, Jul 15, 2025 at 4:40 AM vmarchetti--- via x3d-public <
> x3d-public at web3d.org> wrote:
>
>> I think these errors are a result of web browser configuration or policy
>> rathen than a change in the x3dom code.
>>
>> I am seeing the reported problem in loading ImageTexture resources from
>> the local file system in my install of Chrome, but not in Firefox. That
>> leads me to think it's a difference in how each browser is interpreting the
>> security risk of reading a local file through an XHR request, an issue
>> related to the CORS specification.
>>
>> Vince Marchetti
>>
>> On Jul 14, 2025, at 9:08 PM, Don Brutzman via x3d-public <
>> x3d-public at web3d.org> wrote:
>>
>> Thank you Andreas. I have
>>
>> - taken out the CSS for SANS, SERIF, TYPEWRITER
>> - updated the node-list url,
>> - tested both updated addresses for x3dom-full.js
>>
>> Here are two examples using your preferred address:
>>
>> -
>> https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/Animation/BoxSwitchX3dom.xhtml
>> -
>> https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/Animation/RotationCalculatorExampleX3dom.xhtml
>>
>> However, a problem has emerged. Neither model is displaying image
>> textures when launched on local host.
>> ERROR: [Utils|createTexture2D] Can't http request: images/WhiteImage.png
>> ERROR: [Utils|createTexture2D] Can't http request: images/YellowImage.png
>> ERROR: [Utils|createTexture2D] Can't http request:
>> images/TurquoiseImage.png
>> ERROR: [Utils|createTexture2D] Can't http request: images/GreenImage.png
>> ERROR: [Utils|createTexture2D] Can't http request: images/GreyImage.png
>> ERROR: [Utils|createTexture2D] Can't http request: images/RedImage.png
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>> <image.png>
>>
>> Hopefully this is a fixable issue, TIA for any scrutiny. This was a very
>> useful capability when invoking the original
>> https://x3dom.org/download/dev/x3dom-full.js
>>
>> all the best, Don
>>
>> On Sun, Jul 13, 2025 at 8:45 PM Andreas Plesch <andreasplesch at gmail.com>
>> wrote:
>>
>>> Answers below.
>>>
>>> On Sun, Jul 13, 2025 at 2:21 PM Don Brutzman <don.brutzman at gmail.com>
>>> wrote:
>>>
>>>> Andreas writes on 10 JUL 2025:
>>>>
>>>>> I have deployed a new dev version.
>>>>> Please note that the download link for the dev version of x3dom has
>>>>> migrated from x3dom.org/download/dev (not updated) to
>>>>> https://cdn.jsdelivr.net/gh/x3dom/x3dom-dev/dist/x3dom.js (preferred)
>>>>> or
>>>>> https://x3dom.github.io/x3dom-dev/dist/x3dom.js
>>>>> which is
>>>>> automatically updated through
>>>>> https://github.com/x3dom/x3dom-dev
>>>>> for every merged PR at
>>>>> https://github.com/x3dom/x3dom
>>>>> The netlify link is obsolete.
>>>>
>>>>
>>>>> Andreas
>>>>
>>>>
>>>> Thanks for the alert. I am hoping to get the address and invocation
>>>> correct in our X3D Example Archives scenes by updating the conversion
>>>> stylesheet.
>>>>
>>>> - X3D Example Archives
>>>> -
>>>> https://www.web3d.org/x3d/content/examples/X3dResources.html#Examples
>>>> -
>>>> https://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/x3d/stylesheets/X3dToX3domX_ITE.xslt
>>>>
>>>> The X3dToX3domX_ITE.xslt stylesheet produces the following header in
>>>> these examples:
>>>>
>>>> - X3D Example Archives: X3D4WA, X3D for Web Authors, Chapter 01
>>>> Technical Overview, Hello World
>>>> -
>>>> https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter01TechnicalOverview/HelloWorldIndex.html
>>>> -
>>>> https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter01TechnicalOverview/HelloWorldX3dom.xhtml
>>>>
>>>> <!DOCTYPE html>
>>>>
>>>> <!--
>>>> =================================================================== -->
>>>>
>>>> <!-- embedded X3D scene appears after html/head/script and style
>>>> entries -->
>>>>
>>>> <!--
>>>> =================================================================== -->
>>>>
>>>> <html xmlns="http://www.w3.org/1999/xhtml">
>>>>
>>>> <head>
>>>>
>>>> <title>Hello World!, HelloWorld.x3d (X3DOM)</title>
>>>>
>>>> <meta http-equiv="X-UA-Compatible" content="chrome=1,IE=edge"/>
>>>>
>>>> <meta http-equiv="Content-Type" content="text/html;charset=utf-8"/>
>>>>
>>>> <meta name="generator"
>>>>
>>>> content="https://www.web3d.org/x3d/stylesheets/X3dToX3domX_ITE.xslt"/>
>>>>
>>>> <script type="text/javascript" src="
>>>> https://ajax.googleapis.com/ajax/libs/jquery/3.2.1/jquery.min.js">
>>>> </script>
>>>>
>>>> <!-- Numbered X3DOM release versions: https://www.x3dom.org/download
>>>> -->
>>>>
>>>> <!-- Developer X3DOM release version:
>>>> https://www.x3dom.org/download/dev -->
>>>>
>>>> <link rel="stylesheet"
>>>>
>>>> type="text/css"
>>>>
>>>> href="https://x3dom.org/download/dev/x3dom.css"/>
>>>>
>>>> <script type="text/javascript"
>>>>
>>>> src="https://x3dom.org/download/dev/x3dom-full.js"/>
>>>>
>>>>
>>>> Questions please, before I start a major rebuild:
>>>>
>>>> 1. *x3dom.js or x3dom-full.js ? (both look to be available)*
>>>>
>>>> x3dom-full.js
>>>
>>>>
>>>> 1. *Same treatment for x3dom.css or is it no longer used?*
>>>>
>>>> Yes, same treatment. It is still used.
>>>
>>>>
>>>> 1. *What is up-to-date guidance whenText node is included?* I have
>>>>
>>>>
>>>> - "X3DOM Text Example
>>>> The following scenes demonstrate the use of the text and fontsyle
>>>> nodes. You can also use web fonts, however on windows there is a glitch.
>>>> You have to use and display the font in your document before you can use
>>>> them in X3DOM."
>>>> - https://x3dom.org/x3dom/example/x3dom_text.html
>>>>
>>>> <meta name="warning"
>>>>
>>>> content="Webfonts must be loaded prior to using Text node in X3D
>>>> scene... see https://x3dom.org/x3dom/example/x3dom_text.html"/>
>>>>
>>>> <!-- X3DOM needs Web Fonts when an X3D Text node is included -->
>>>>
>>>> <!-- adapted from https://x3dom.org/x3dom/example/x3dom_text.html and
>>>> https://web.mit.edu/jmorzins/www/fonts.html -->
>>>>
>>>> <style type="text/css">
>>>>
>>>> /*
>>>> =============================================================================
>>>> */
>>>>
>>>> @font-face {
>>>>
>>>> font-family: 'SERIF'; /* default original */
>>>>
>>>> font-style: normal;
>>>>
>>>> font-weight: 700;
>>>>
>>>> src: local('Roman'), url('Roman.ttf') format('truetype');
>>>>
>>>> }
>>>>
>>>> @font-face {
>>>>
>>>> font-family: 'SERIF'; /* default alternate */
>>>>
>>>> font-style: normal;
>>>>
>>>> font-weight: 700;
>>>>
>>>> src: local('Times New Roman'), local('TimesNewRoman'), url('Times New
>>>> Roman.ttf') format('truetype');
>>>>
>>>> }
>>>>
>>>> /*
>>>> =============================================================================
>>>> */
>>>>
>>>> @font-face {
>>>>
>>>> font-family: 'SANS'; /* default original */
>>>>
>>>> font-style: normal;
>>>>
>>>> font-weight: 400;
>>>>
>>>> src: local('Arial'), url('Arial.ttf') format('truetype');
>>>>
>>>> }
>>>>
>>>> @font-face {
>>>>
>>>> font-family: 'SANS'; /* default alternate */
>>>>
>>>> font-style: normal;
>>>>
>>>> font-weight: 400;
>>>>
>>>> src: local('Helvetica'), url('Helvetica.ttf') format('truetype');
>>>>
>>>> }
>>>>
>>>> /*
>>>> =============================================================================
>>>> */
>>>>
>>>> @font-face {
>>>>
>>>> font-family: 'TYPEWRITER'; /* default original */
>>>>
>>>> font-style: normal;
>>>>
>>>> font-weight: 900;
>>>>
>>>> src: local('Courier'), url('Courier.ttf') format('truetype');
>>>>
>>>> }
>>>>
>>>> @font-face {
>>>>
>>>> font-family: 'TYPEWRITER'; /* default alternate */
>>>>
>>>> font-style: normal;
>>>>
>>>> font-weight: 900;
>>>>
>>>> src: local('Courier New'), url('Courier New.ttf') format('truetype');
>>>>
>>>> }
>>>>
>>>> /*
>>>> =============================================================================
>>>> */
>>>>
>>>> </style>
>>>>
>>>> <style type="text/css" media="screen, print">
>>>>
>>>> .webfont { font-size:200%; font-family:'TYPEWRITER'; color:green;} /*
>>>> Conversion TODO font families: SANS SERIF TYPEWRITER */
>>>>
>>>> </style>
>>>>
>>>>
>>> I think this guidance still applies for custom font families if a
>>> FontLibrary node is not used. FontLibrary font loading does not require
>>> this css. Also, all basic X3D font families do not require css.
>>> https://github.com/x3dom/x3dom/blob/master/test/functional/fonts.html
>>> has examples.
>>>
>>>
>>>> and
>>>>
>>>> *4. Is the following still the best up-to-date list of supported nodes?*
>>>>
>>>> https://andreasplesch.github.io/x3dom/dist/doc/author/nodes.html
>>>>
>>>> P.S. node wish list: IndexedTriangleFanSet, Script
>>>>
>>>>
>>> https://x3dom.github.io/x3dom-dev/dist/doc
>>>
>>> would be the best source for up to date documentation on supported nodes
>>> with dev releases as it is built and deployed along with the library.
>>>
>>>
>>> Thanks in advance for all improvements to these invocations, and thanks
>>>> as ever for ongoing progress with X3DOM!
>>>>
>>>> all the best, Don
>>>>
>>>
>>> All the best, Andreas
>>> --
>>> Andreas Plesch
>>> Waltham, MA 02453
>>>
