<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "http://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.0.xsd '>
<head>
<meta name='title' content='test-comc1-attenuation.x3d'/>
<meta name='MovingImage' content='test-comc1-attenuation-movie.mpg'/>
<meta name='reference' content=' http://www.nist.gov/vrml.html '/>
<meta name='reference' content=' http://www.itl.nist.gov/div897/ctg/vrml/vrml.html '/>
<meta name='creator' content=' http://www.itl.nist.gov/div897/ctg/vrml/members.html '/>
<meta name='disclaimer' content=' This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology. This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='info' content=' Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, http://www.web3d.org/working-groups/x3d '/>
<meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translated' content='21 January 2001'/>
<meta name='modified' content='25 March 2012'/>
<meta name='description' content='Test browser to apply attenuation values to a set of complex geometry. The second index of the attenuation field is set to 0.2, which should cause the attenuation to decrease inversively proportional to the distance from the light. The light brightness should decrease as the objects move away from the light.'/>
<meta name='identifier' content=' http://www.web3d.org/x3d/content/examples/ConformanceNist/Lights/SpotLight/test-comc1-attenuation.x3d '/>
<meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../../license.html'/>
</head>
<!--
Index for DEF nodes : extrusion-plane, extrusion-position, faceset-plane, faceset-position, grid-plane, grid-position, text-color, text-time, the-appearance, the-click, the-time, the-touch

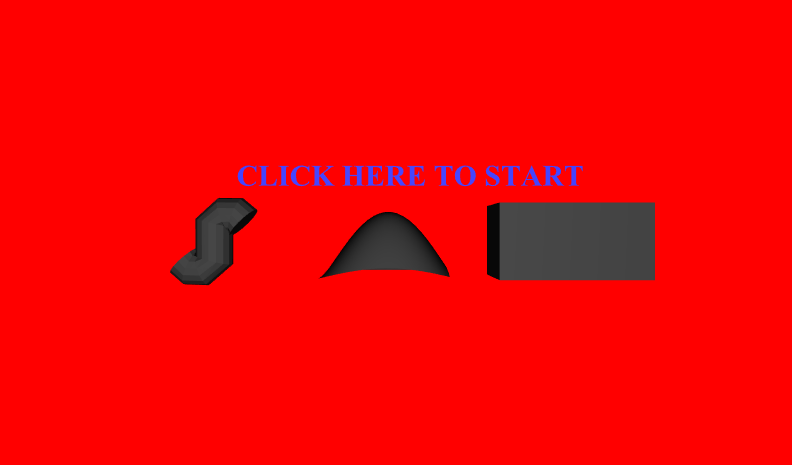

Index for Viewpoint image : Viewpoint_1
-->
<Scene>
<Viewpoint description='Front View' position='0 0 5'/>
<Background groundColor='0 0 0' skyColor='1 0 0'/>
<NavigationInfo headlight='false' type='"EXAMINE" "WALK" "FLY" "ANY"'/>
<PointLight on='false'/>
<DirectionalLight on='false'/>
<Transform scale='0.02 0.02 0.02' translation='-2.7 1.3 -4.5'>
<Shape>
<Appearance DEF='the-appearance'>
<!-- the-click ROUTE:  [from text-color.value_changed to emissiveColor ] -->
<Material DEF='the-click' ambientIntensity='1' emissiveColor='0 0 1'/>
</Appearance>
<Text string='"CLICK HERE TO START"'>
<FontStyle size='32' style='BOLD'/>
</Text>
</Shape>
<!-- the-touch ROUTEs:  [from touchTime to text-time.startTime ] [from touchTime to the-time.startTime ] -->
<TouchSensor DEF='the-touch' description='touch to activate'/>
</Transform>
<SpotLight attenuation='0 0.2 0' beamWidth='1.57079' cutOffAngle='1.57079' location='0 0 10' radius='101'/>
<!-- text-time ROUTEs:  [from the-touch.touchTime to startTime ] [from fraction_changed to text-color.set_fraction ] -->
<TimeSensor DEF='text-time'/>
<!-- the-time ROUTEs:  [from the-touch.touchTime to startTime ] [from fraction_changed to grid-position.set_fraction ] [from fraction_changed to extrusion-position.set_fraction ] [from fraction_changed to faceset-position.set_fraction ] -->
<TimeSensor DEF='the-time' cycleInterval='8'/>
<!-- text-color ROUTEs:  [from text-time.fraction_changed to set_fraction ] [from value_changed to the-click.emissiveColor ] -->
<ColorInterpolator DEF='text-color' key='0 0.5 1' keyValue='0 0 1 1 1 1 0 0 1'/>
<!-- extrusion-position ROUTEs:  [from the-time.fraction_changed to set_fraction ] [from value_changed to extrusion-plane.translation ] -->
<PositionInterpolator DEF='extrusion-position' key='0 0.2 0.6 1' keyValue='-3.07 -0.15 -6 -3.07 -0.15 -10 -3.07 -0.15 -30 -3.07 -0.15 -50'/>
<!-- grid-position ROUTEs:  [from the-time.fraction_changed to set_fraction ] [from value_changed to grid-plane.translation ] -->
<PositionInterpolator DEF='grid-position' key='0 0.2 0.6 1' keyValue='-1.18 -0.8 -5 -1.18 -0.8 -10 -1.18 -0.8 -30 -1.18 -0.8 -50'/>
<!-- faceset-position ROUTEs:  [from the-time.fraction_changed to set_fraction ] [from value_changed to faceset-plane.translation ] -->
<PositionInterpolator DEF='faceset-position' key='0 0.2 0.6 1' keyValue='2.87 -0.14 -5 2.87 -0.14 -10 2.87 -0.14 -30 2.87 -0.14 -50'/>
<!-- grid-plane ROUTE:  [from grid-position.value_changed to translation ] -->
<Transform DEF='grid-plane' translation='-1.18 -0.7 -5.53'>
<Shape>
<Appearance>
<Material/>
</Appearance>
<ElevationGrid solid='false' xDimension='21' xSpacing='0.1' zDimension='21' zSpacing='0.1' height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.0233242 0.0461275 0.0679003 0.0881563 0.106443 0.122352 0.135528 0.145676 0.152571 0.156057 0.156057 0.152571 0.145676 0.135528 0.122352 0.106443 0.0881566 0.0679006 0.0461278 0.0233246 0 0.0461275 0.0912245 0.134284 0.174343 0.210508 0.241971 0.268028 0.288098 0.301733 0.308627 0.308627 0.301733 0.288099 0.268029 0.241971 0.210509 0.174344 0.134284 0.0912253 0.0461283 0 0.0679003 0.134284 0.197668 0.256636 0.309871 0.356185 0.394542 0.424085 0.444155 0.454304 0.454304 0.444155 0.424085 0.394542 0.356185 0.309872 0.256637 0.197669 0.134285 0.0679015 0 0.0881563 0.174343 0.256636 0.333195 0.402312 0.462442 0.512241 0.550598 0.576656 0.589832 0.589832 0.576656 0.550599 0.512242 0.462443 0.402313 0.333197 0.256637 0.174345 0.0881578 0 0.106443 0.210508 0.309871 0.402312 0.485766 0.558369 0.618498 0.664812 0.696275 0.712184 0.712184 0.696275 0.664813 0.618499 0.55837 0.485767 0.402314 0.309873 0.21051 0.106445 0 0.122352 0.241971 0.356185 0.462442 0.558369 0.641823 0.710939 0.764175 0.80034 0.818627 0.818627 0.800341 0.764176 0.710941 0.641824 0.55837 0.462444 0.356187 0.241973 0.122354 0 0.135528 0.268028 0.394542 0.512241 0.618498 0.710939 0.787499 0.846468 0.886527 0.906783 0.906784 0.886528 0.846468 0.7875 0.710941 0.6185 0.512243 0.394544 0.268031 0.13553 0 0.145676 0.288098 0.424085 0.550598 0.664812 0.764175 0.846468 0.909852 0.952911 0.974684 0.974684 0.952911 0.909852 0.846469 0.764177 0.664814 0.5506 0.424087 0.288101 0.145679 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.80034 0.886527 0.952911 0.998008 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906783 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906784 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.800341 0.886528 0.952911 0.998009 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.145676 0.288099 0.424085 0.550599 0.664813 0.764176 0.846468 0.909852 0.952912 0.974685 0.974685 0.952912 0.909853 0.84647 0.764177 0.664815 0.550601 0.424088 0.288101 0.145679 0 0.135528 0.268029 0.394542 0.512242 0.618499 0.710941 0.7875 0.846469 0.886529 0.906785 0.906785 0.886529 0.84647 0.787502 0.710942 0.618501 0.512244 0.394544 0.268031 0.135531 0 0.122352 0.241971 0.356185 0.462443 0.55837 0.641824 0.710941 0.764177 0.800342 0.818629 0.818629 0.800342 0.764177 0.710942 0.641825 0.558372 0.462445 0.356187 0.241974 0.122354 0 0.106443 0.210509 0.309872 0.402313 0.485767 0.55837 0.6185 0.664814 0.696277 0.712186 0.712186 0.696277 0.664815 0.618501 0.558372 0.485769 0.402315 0.309874 0.210511 0.106445 0 0.0881566 0.174344 0.256637 0.333197 0.402314 0.462444 0.512243 0.5506 0.576658 0.589834 0.589834 0.576658 0.550601 0.512244 0.462445 0.402315 0.333198 0.256638 0.174345 0.0881582 0 0.0679006 0.134284 0.197669 0.256637 0.309873 0.356187 0.394544 0.424087 0.444158 0.454306 0.454306 0.444158 0.424088 0.394544 0.356187 0.309874 0.256638 0.19767 0.134286 0.0679018 0 0.0461278 0.0912253 0.134285 0.174345 0.21051 0.241973 0.268031 0.288101 0.301736 0.30863 0.30863 0.301736 0.288101 0.268031 0.241974 0.210511 0.174345 0.134286 0.0912261 0.0461287 0 0.0233246 0.0461283 0.0679015 0.0881578 0.106445 0.122354 0.13553 0.145679 0.152573 0.156059 0.156059 0.152573 0.145679 0.135531 0.122354 0.106445 0.0881582 0.0679018 0.0461287 0.0233251'/>
</Shape>
</Transform>
<!-- extrusion-plane ROUTE:  [from extrusion-position.value_changed to translation ] -->
<Transform DEF='extrusion-plane' scale='0.313408 0.313408 0.313407' translation='-3.07 -0.15 -4.5'>
<Shape>
<Appearance>
<Material/>
</Appearance>
<Extrusion crossSection='1 0 0.92388 0.382683 0.707107 0.707106 0.382684 0.923879 1.26759e-006 1 -0.382682 0.92388 -0.707105 0.707108 -0.923879 0.382685 -1 2.53518e-006 -0.923881 -0.382681 -0.707109 -0.707105 -0.382687 -0.923878 -3.80277e-006 -1 0.38268 -0.923881 0.707104 -0.70711 0.923878 -0.382688 1 0' orientation='0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0' scale='1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1' solid='false' spine='-1.58296 -1.01245 0 -1.21333 -1.39814 0 -0.618718 -1.41421 0 0 -1 0 0 1 0 0.554436 1.39814 0 1.18119 1.39814 0 1.56688 1.01245 0'/>
</Shape>
</Transform>
<!-- faceset-plane ROUTE:  [from faceset-position.value_changed to translation ] -->
<Transform DEF='faceset-plane' scale='0.615111 0.615111 0.615112' translation='2.87 -0.14 -4.5'>
<Shape>
<Appearance>
<Material/>
</Appearance>
<IndexedFaceSet creaseAngle='0.5' coordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1 6 0 2 4 -1 1 7 5 3 -1'>
<Coordinate point='-2 1 1 -2 -1 1 2 1 1 2 -1 1 2 1 -1 2 -1 -1 -2 1 -1 -2 -1 -1'/>
</IndexedFaceSet>
</Shape>
</Transform>
<ROUTE fromNode='the-touch' fromField='touchTime' toNode='text-time' toField='startTime'/>
<ROUTE fromNode='text-time' fromField='fraction_changed' toNode='text-color' toField='set_fraction'/>
<ROUTE fromNode='text-color' fromField='value_changed' toNode='the-click' toField='emissiveColor'/>
<ROUTE fromNode='the-touch' fromField='touchTime' toNode='the-time' toField='startTime'/>
<ROUTE fromNode='the-time' fromField='fraction_changed' toNode='grid-position' toField='set_fraction'/>
<ROUTE fromNode='grid-position' fromField='value_changed' toNode='grid-plane' toField='translation'/>
<ROUTE fromNode='the-time' fromField='fraction_changed' toNode='extrusion-position' toField='set_fraction'/>
<ROUTE fromNode='extrusion-position' fromField='value_changed' toNode='extrusion-plane' toField='translation'/>
<ROUTE fromNode='the-time' fromField='fraction_changed' toNode='faceset-position' toField='set_fraction'/>
<ROUTE fromNode='faceset-position' fromField='value_changed' toNode='faceset-plane' toField='translation'/>
</Scene>
</X3D>
<!--
