<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "http://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.0.xsd '>
<head>
<meta name='title' content='test-ambeffect-ambientcom.x3d'/>
<meta name='MovingImage' content='test-ambeffect-ambientcom-movie.mpg'/>
<meta name='reference' content=' http://www.nist.gov/vrml.html '/>
<meta name='reference' content=' http://www.itl.nist.gov/div897/ctg/vrml/vrml.html '/>
<meta name='creator' content=' http://www.itl.nist.gov/div897/ctg/vrml/members.html '/>
<meta name='disclaimer' content=' This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology. This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='info' content=' Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, http://www.web3d.org/working-groups/x3d '/>
<meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translated' content='21 January 2001'/>
<meta name='modified' content='12 June 2002'/>
<meta name='description' content='This test addresses the effect of the SpotLight ambientIntensity on the ambient of a complex object (IndexedFaceSet). Two IndexedFaceSets are drawn in the local coordinate system and a SpotLight is defined to shine on them along the -Z axis. The IndexedFaceSet to the left contains an ambientIntensity 0.3 and the one to the right contains an initial ambientIntensity of 1. The ambientIntensity of the light is increased on both geometry as the animation progresses. Since both materials ambientIntensity are constants, at the end of the animation the one to the right will be brigther than the one to the left. This is because at the end of the animation the figure to the right will have maximum ambient (both material and light ambientIntensity will be 1)'/>
<meta name='identifier' content=' http://www.web3d.org/x3d/content/examples/ConformanceNist/Lights/SpotLight/test-ambeffect-ambientcom.x3d '/>
<meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../../license.html'/>
</head>
<!--
Index for DEF nodes : text-color, text-time, the-ambient, the-appearance, the-click, the-light, the-set, the-time, the-touch
Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4
-->
<Scene>
<Group>

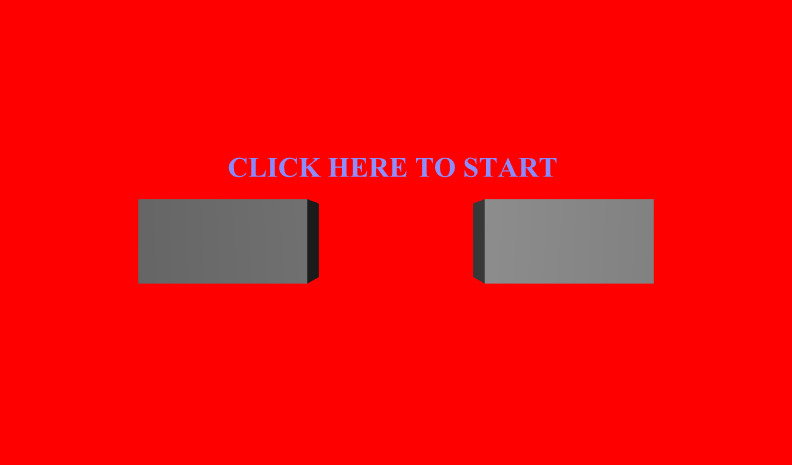

<Viewpoint description='Front View'/>

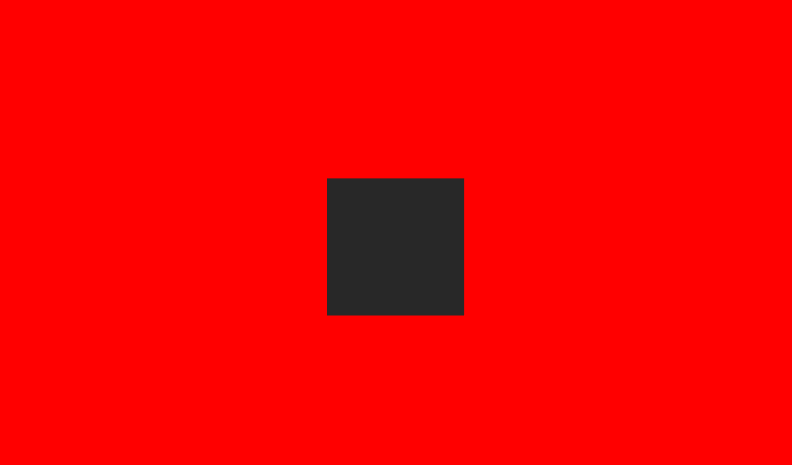

<Viewpoint description='Right View' orientation='0 1 0 1.57' position='10 0 0'/>

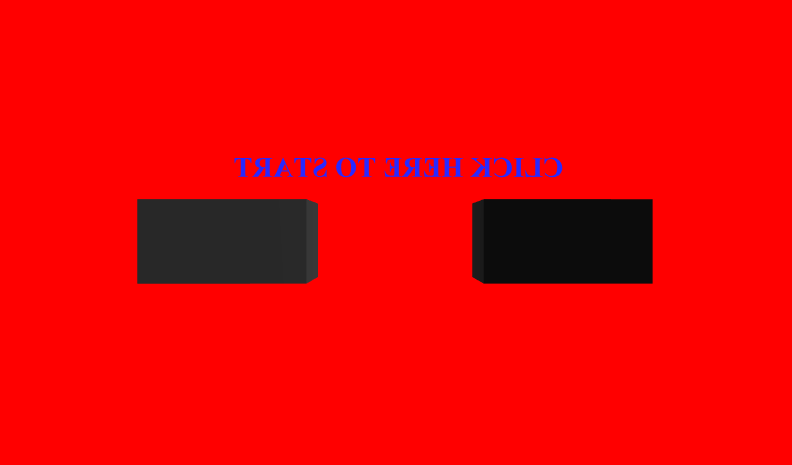

<Viewpoint description='Rear View' orientation='0 1 0 3.14' position='0 0 -10'/>

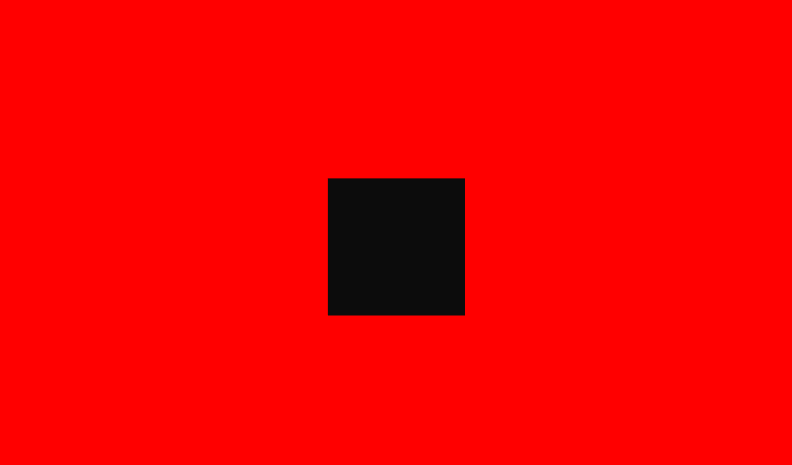

<Viewpoint description='Left View' orientation='0 1 0 -1.57' position='-10 0 0'/>
</Group>
<NavigationInfo headlight='false' type='"EXAMINE" "WALK" "FLY" "ANY"'/>
<Background groundColor='0 0 0' skyColor='1 0 0'/>
<NavigationInfo headlight='false' type='"EXAMINE" "WALK" "FLY" "ANY"'/>
<PointLight on='false'/>
<DirectionalLight on='false'/>
<Transform scale='0.02 0.02 0.02' translation='-3 1.5 0'>
<Shape>
<Appearance DEF='the-appearance'>
<!-- the-click ROUTE:  [from text-color.value_changed to emissiveColor ] -->
<Material DEF='the-click' ambientIntensity='1' emissiveColor='0 0 1'/>
</Appearance>
<Text string='"CLICK HERE TO START"'>
<FontStyle size='32' style='BOLD'/>
</Text>
</Shape>
<!-- the-touch ROUTEs:  [from touchTime to text-time.startTime ] [from touchTime to the-time.startTime ] -->
<TouchSensor DEF='the-touch' description='touch to activate'/>
</Transform>
<!-- text-time ROUTEs:  [from the-touch.touchTime to startTime ] [from fraction_changed to text-color.set_fraction ] -->
<TimeSensor DEF='text-time'/>
<!-- the-time ROUTEs:  [from the-touch.touchTime to startTime ] [from fraction_changed to the-ambient.set_fraction ] -->
<TimeSensor DEF='the-time' cycleInterval='8'/>
<!-- the-ambient ROUTEs:  [from the-time.fraction_changed to set_fraction ] [from value_changed to the-light.ambientIntensity ] -->
<ScalarInterpolator DEF='the-ambient' key='0.1 0.2 0.4 0.6 0.8 1' keyValue='0.2 0.3 0.4 0.6 0.8 1'/>
<!-- text-color ROUTEs:  [from text-time.fraction_changed to set_fraction ] [from value_changed to the-click.emissiveColor ] -->
<ColorInterpolator DEF='text-color' key='0 0.5 1' keyValue='0 0 1 1 1 1 0 0 1'/>
<Group>
<!-- the-light ROUTE:  [from the-ambient.value_changed to ambientIntensity ] -->
<SpotLight DEF='the-light' ambientIntensity='0.2' beamWidth='1.57079' cutOffAngle='.785398' intensity='0.5' location='0 0 10' radius='50'/>
<Transform scale='0.7 0.7 0.7' translation='-2.87 -0.147732 0'>
<Shape>
<Appearance>
<Material ambientIntensity='0.3'/>
</Appearance>
<IndexedFaceSet DEF='the-set' creaseAngle='0.5' coordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1 6 0 2 4 -1 1 7 5 3 -1'>
<Coordinate point='-2 1 1 -2 -1 1 2 1 1 2 -1 1 2 1 -1 2 -1 -1 -2 1 -1 -2 -1 -1'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform scale='0.7 0.7 0.7' translation='2.87 -0.147732 0'>
<Shape>
<Appearance>
<Material ambientIntensity='1'/>
</Appearance>
<IndexedFaceSet USE='the-set'/>
</Shape>
</Transform>
</Group>
<ROUTE fromNode='the-touch' fromField='touchTime' toNode='text-time' toField='startTime'/>
<ROUTE fromNode='the-touch' fromField='touchTime' toNode='the-time' toField='startTime'/>
<ROUTE fromNode='text-time' fromField='fraction_changed' toNode='text-color' toField='set_fraction'/>
<ROUTE fromNode='text-color' fromField='value_changed' toNode='the-click' toField='emissiveColor'/>
<ROUTE fromNode='the-time' fromField='fraction_changed' toNode='the-ambient' toField='set_fraction'/>
<ROUTE fromNode='the-ambient' fromField='value_changed' toNode='the-light' toField='ambientIntensity'/>
</Scene>
</X3D>
<!--
