test-on.x3d (X3dToXhtml listing)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "http://www.web3d.org/specifications/x3d-3.0.dtd">

<X3D profile='Interactive' version='3.0' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.0.xsd '>

<head>

<meta name='title' content='test-on.x3d'/>
<meta name='Image' content='test-on-front.jpg'/>
<meta name='Image' content='test-on-top.jpg'/>
<meta name='Image' content='test-on-left.jpg'/>
<meta name='reference' content=' http://www.nist.gov/vrml.html '/>
<meta name='reference' content=' http://www.itl.nist.gov/div897/ctg/vrml/vrml.html '/>
<meta name='creator' content=' http://www.itl.nist.gov/div897/ctg/vrml/members.html '/>
<meta name='disclaimer' content=' This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology. This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='info' content=' Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, http://www.web3d.org/working-groups/x3d '/>
<meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translated' content='21 January 2001'/>
<meta name='modified' content='27 January 2011'/>
<meta name='description' content='This test sets the on field to true/false for two DirectionalLight node defined using two different Transform node. The test should generate two default color/size spheres. The leftmost one sholud be illuminated while the rightmost one should be dark.'/>
<meta name='identifier' content=' http://www.web3d.org/x3d/content/examples/ConformanceNist/Lights/DirectionalLight/test-on.x3d '/>
<meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../../license.html'/>

</head>
<!--

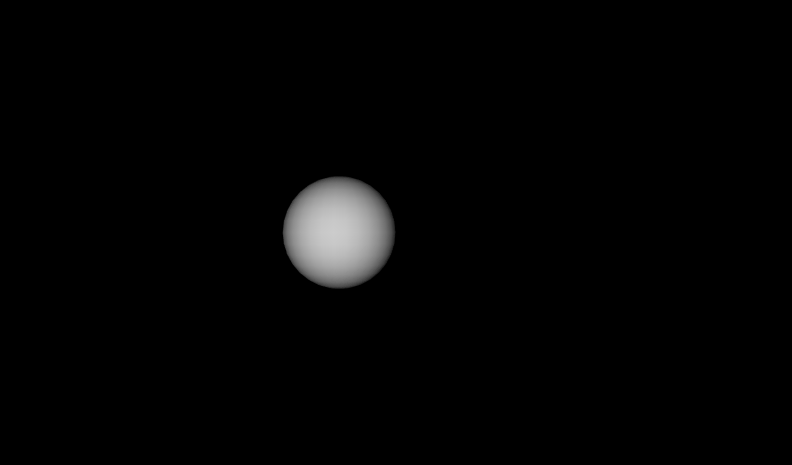

Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3

-->
<Scene>

<Group>

<Viewpoint description='Front View'/>
<Viewpoint description='Left View' orientation='0 1 0 -1.57' position='-10 0 0'/>
<Viewpoint description='Top View' orientation='1 0 0 -1.57' position='0 10 0'/>

</Group>
<NavigationInfo headlight='false' type='"EXAMINE" "WALK" "FLY" "ANY"'/>
<PointLight on='false'/>
<SpotLight beamWidth='1.570796' cutOffAngle='.785398' on='false'/>
<Transform translation='-1 0 0'>

<DirectionalLight/>
<Shape>

<Appearance>

<Material/>

</Appearance>
<Sphere/>

</Shape>

</Transform>
<Transform translation='1.5 0 0'>

<DirectionalLight on='false'/>
<Shape>

<Appearance>

<Material/>

</Appearance>
<Sphere/>

</Shape>

</Transform>

</Scene>

</X3D>
<!--

Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3

-->
