<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "http://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.0.xsd '>
<head>
<meta name='title' content='test-wholejpeg.x3d'/>
<meta name='MovingImage' content='test-wholejpeg-movie.mpg'/>
<meta name='reference' content=' http://www.nist.gov/vrml.html '/>
<meta name='reference' content=' http://www.itl.nist.gov/div897/ctg/vrml/vrml.html '/>
<meta name='creator' content=' http://www.itl.nist.gov/div897/ctg/vrml/members.html '/>
<meta name='disclaimer' content=' This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology. This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='info' content=' Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, http://www.web3d.org/working-groups/x3d '/>
<meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translated' content='21 January 2001'/>
<meta name='modified' content='13 February 2011'/>
<meta name='description' content='Test browser to set a whole panorama of JPEG images on the same background. The test sets a Background node with four images on each side of the "background cube" and use the front, right, back and left sides of the cube to map the images. The test can be started by clicking on the text as indicated by the test. The test will then switch the position and orientations values of the viewpoint to display all four sides of the cube. All images are of the high Sierra mountains and of JPEG format.'/>
<meta name='identifier' content=' http://www.web3d.org/x3d/content/examples/ConformanceNist/BindableNodes/Background/test-wholejpeg.x3d '/>
<meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../../license.html'/>
</head>
<!--
Index for DEF nodes : back1, the-orientations, the-positions, the-style, the-time, the-touch, the-view
Index for Viewpoint image : the-view
-->
<Scene>
<NavigationInfo headlight='false' type='"EXAMINE" "WALK" "FLY" "ANY"'/>
<Group>
<!-- the-view ROUTEs:  [from the-positions.value_changed to position ] [from the-orientations.value_changed to orientation ] -->

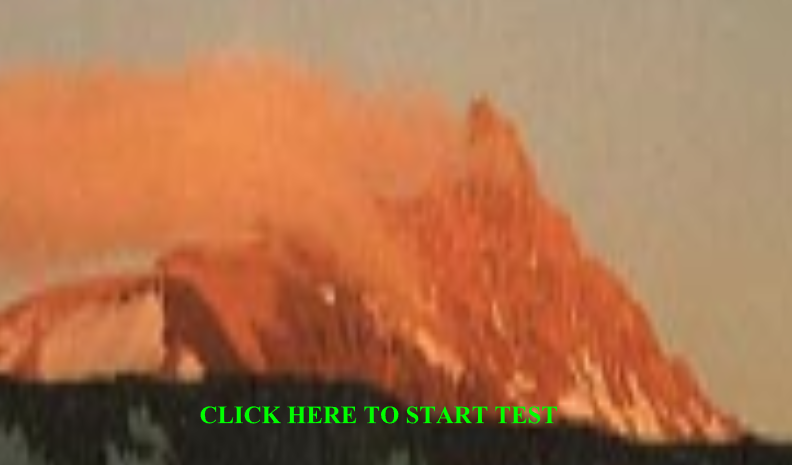

<Viewpoint DEF='the-view' description='Front View' position='0 0 20'/>
</Group>
<Group>
<Background DEF='back1' groundColor='0 0 0'
  backUrl=' "mt-huxley.jpg" "http://www.web3d.org/x3d/content/examples/ConformanceNist/BindableNodes/Background/mt-huxley.jpg" '
  frontUrl=' "mt-humphreys.jpg" "http://www.web3d.org/x3d/content/examples/ConformanceNist/BindableNodes/Background/mt-humphreys.jpg" '
  leftUrl=' "mt-whitney.jpg" "http://www.web3d.org/x3d/content/examples/ConformanceNist/BindableNodes/Background/mt-whitney.jpg" '
  rightUrl=' "lostlakes.jpg" "http://www.web3d.org/x3d/content/examples/ConformanceNist/BindableNodes/Background/lostlakes.jpg" '/>
</Group>
<!-- the-time ROUTEs:  [from the-touch.touchTime to startTime ] [from fraction_changed to the-positions.set_fraction ] [from fraction_changed to the-orientations.set_fraction ] -->
<TimeSensor DEF='the-time' cycleInterval='8'/>
<!-- the-positions ROUTEs:  [from the-time.fraction_changed to set_fraction ] [from value_changed to the-view.position ] -->
<PositionInterpolator DEF='the-positions' key='0 0.25 0.5 0.75 1' keyValue='0 0 20 20 0 0 0 0 11 -20 0 0 0 0 20'/>
<!-- the-orientations ROUTEs:  [from the-time.fraction_changed to set_fraction ] [from value_changed to the-view.orientation ] -->
<OrientationInterpolator DEF='the-orientations' key='0 0.25 0.5 0.75 1' keyValue='0 1 0 0 0 1 0 -1.57 0 1 0 -3.14 0 1 0 -4.71 0 1 0 -6.28'/>
<Transform scale='0.02 0.02 0.02' translation='-3.5 -3 10'>
<Shape>
<Appearance>
<Material ambientIntensity='1' diffuseColor='0 1 0' emissiveColor='0 1 0'/>
</Appearance>
<Text string='"CLICK HERE TO START TEST"'>
<FontStyle DEF='the-style' justify='"FIRST" "FIRST"' size='28' style='BOLD'/>
</Text>
</Shape>
<!-- the-touch ROUTE:  [from touchTime to the-time.startTime ] -->
<TouchSensor DEF='the-touch' description='touch to activate'/>
</Transform>
<ROUTE fromNode='the-touch' fromField='touchTime' toNode='the-time' toField='startTime'/>
<ROUTE fromNode='the-time' fromField='fraction_changed' toNode='the-positions' toField='set_fraction'/>
<ROUTE fromNode='the-time' fromField='fraction_changed' toNode='the-orientations' toField='set_fraction'/>
<ROUTE fromNode='the-positions' fromField='value_changed' toNode='the-view' toField='position'/>
<ROUTE fromNode='the-orientations' fromField='value_changed' toNode='the-view' toField='orientation'/>
</Scene>
</X3D>
<!--
