complexType X3DInterpolatorNode

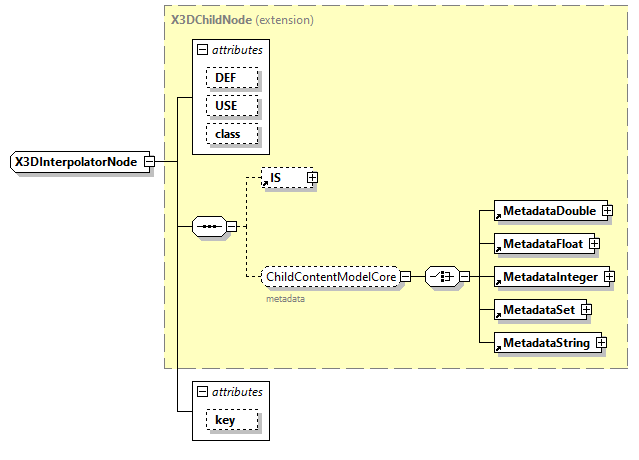

diagram x3d-3.1_diagrams/x3d-3.1_p226.png
type extension of X3DChildNode
properties
base X3DChildNode
abstract true
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements ColorInterpolator CoordinateInterpolator CoordinateInterpolator2D GeoPositionInterpolator NormalInterpolator OrientationInterpolator PositionInterpolator PositionInterpolator2D ScalarInterpolator
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
key  MFFloat
annotation
appinfo
<xs:attribute name="set_fraction" type="SFFloat" fixed="inputOnlyField"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Interpolation"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Interpolator nodes are designed for linear keyframed animation.
Interpolators are driven by an input key ranging [0..1] and produce corresponding piecewise-linear output functions.
source <xs:complexType name="X3DInterpolatorNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="set_fraction" type="SFFloat" fixed="inputOnlyField"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Interpolation"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Interpolator nodes are designed for linear keyframed animation.
Interpolators are driven by an input key ranging [0..1] and produce corresponding piecewise-linear output functions.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/interp.html#X3DInterpolatorNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DChildNode">

<xs:attribute name="key" type="MFFloat"/>

</xs:extension>

</xs:complexContent>
</xs:complexType>

attribute X3DInterpolatorNode/@key
type MFFloat
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source <xs:attribute name="key" type="MFFloat"/>
