Extensible 3D (X3D)

Part 1: Architecture and base components

19 Interpolation component

The name of this component is "Interpolation". This name shall be used when referring to this component in the COMPONENT statement (see 7.2.5.4 Component statement).

This subclause describes the Interpolation component of this part of ISO/IEC 19775. Table 19.1 provides links to the major topics in this subclause.

This clause includes six Interpolator nodes all of which provide keyframe-based animation capability.

The Interpolator nodes provide interpolation between animation key frame values. The following node types are Interpolator nodes, each based on the type of value that is interpolated:

- ColorInterpolator
- CoordinateInterpolator
- CoordinateInterpolator2D
- NormalInterpolator
- OrientationInterpolator
- PositionInterpolator
- PositionInterpolator2D
- ScalarInterpolator
- SplinePositionInterpolator
- SplinePositionInterpolator2D
- SplineScalarInterpolator
- SquadOrientationInterpolator
- EaseInEaseOut

All Interpolator nodes are based on the abstract type X3DInterpolatorNode.

The X3D interpolator nodes specified in this clause are designed for linear
key framed animation. Each of these nodes defines a piecewise-linear function,
*f(t)*, on the interval *(−*∞,∞*)*. The piecewise-linear
function is defined by *n* values of *t*, called *key*, and the
*n* corresponding values of *f(t)*, called *keyValue*. The keys
shall be monotonically non-decreasing, otherwise the results are undefined.

An interpolator node evaluates *f(t)* given any value of *t* (via
the *fraction* field) as follows: Let the *n* keys *t _{0}*,

*f(t)* = *v _{0}*, if

=

=

where

The third conditional value of *f(t)* allows the defining of multiple values
for a single key, (*i.e.*, limits from both the left and right at a discontinuity
in *f(t))*. The first specified value is used as the limit of *f(t)* from
the left, and the last specified value is used as the limit of *f(t)* from
the right. The value of *f(t)* at a multiply defined key is indeterminate,
but should be one of the associated limit values.

This component also provides non-linear interpolator nodes that provide for smoother animation than the linear interpolator nodes. Linear interpolators tend to produce animations that have a discontinuous velocity vectors. The transitions at the keys produce a noticeably jerky effect which will not occur when using non-linear interpolator nodes.

The non-linear interpolator nodes consist of three spline interpolator nodes for 3D, 2D, and scalar interpolation. These three nodes use the Hermite spline interpolation with adjustments to accommodate non-uniform key intervals (see 19.2.4 Hermite spline interpolation). The SquadOrientationInterpolator node supports non-linear orientation interpolation.

Each of non-linear interpolator nodes provides a SFBool *closed* field
that specifies whether the interpolator should provide a closed loop, with
continuous velocity vectors as the interpolator transitions from the last key to
the first key. If the velocity vectors at the first and last keys are specified,
the closed field is ignored. If the keyValues at the first and last key are not
identical, the closed field is ignored.

The SFBool *normalizeVelocity* field specifies whether the velocity
vectors are to be transformed into tangency vectors. If the *normalizeVelocity*
field has value TRUE, the *keyVelocity* values
are normalized, thus converting them to tangency vectors. In this case, the
vectors are normalized to produce smooth speed transitions, as described
mathematically below in 19.2.4
Hermite spline interpolation. The magnitude of the specified velocity
vectors is ignored.

If the *normalizeVelocity* field has value FALSE,
the units specified in the velocity field are defined to be
length/cycleInterval.

EXAMPLE Using a SplinePositionInterpolator, in which the velocity at a key is specified to be (0, 0, 1), and the cycleInterval that drives the interpolator is 4 seconds, the actual speed of the object at that key will be 0.25 metres per second (assuming the initial base units have been specified).

In addition to the interpolation nodes, this component provides a node that modifies the time fraction that is typically fed from the TimeSensor node into the interpolator node. This is the EaseInEaseOut node. It allows for a deceleration as the interpolator approaches a key, and an acceleration as the interpolator exits a key. Authors can route time fraction events into the EaseInEaseOut node. The EaseInEaseOut node will then send out a modified time fraction, which can them be routed into one or more interpolators.

The SplinePositionInterpolator, SplinePositionInterpolator2D, and the SplineScalarInterpolator nodes all use the Hermite spline interpolation with adjustments to accommodate non-uniform key intervals. These three nodes all use the same algorithm which is described below.

The algorithm used by these interpolators is as follows. It defines the
output value sent form the *value_changed* field for a given segment of the
interpolation, between key(i), and key(i+1). This segment is valid when the
fraction value satisfies (t_{i} ≤ fraction < t_{i+1}), where t_{i} is the
key at (i), and t_{i+1} is the key at (i+1).

The local fraction will vary from zero to one between the two keys, as follows:

s = (t - t

_{i}) / (t_{i+1}- t_{i})

The velocity vectors at key (i) and key (i+1) are denoted by **T**_{i}
and **T**_{i+1} respectively. These velocity vectors need not be unit
vectors. The magnitude of these vectors specifies the relative speed of the
interpolation.

If the size of the *keyVelocity* field is equal to the size of the *
keyValue* field, the values of **T** used below should come from the *
keyVelocity* field. If the size of the *keyVelocity* field is 2, the
first value is used as the velocity vector for the first key, and the second
value is used as the velocity for the last key. If the size of the *
keyVelocity* field is anything other than those two values, the *
keyVelocity* field is ignored. Any velocity vectors that are not specified
will be calculated using the following algorithm:

The *keyValue* at key (i) is denoted as **v**_{i} and the *
keyValue* at key (i+1) is denoted as **v**_{i+1}.

With those parameters defined, the *value_changed* value (**v**_{s}
)can be calculated as follows:

v_{s}=S^{T}H C

where

S=s

^{3}

H=2

-2

1

1

C=

v_{i}s

^{2}-3

3

-2

-1

v_{i+1}s

0

0

1

0

T^{0}_{i}1

1

0

0

0

T^{1}_{i+1}

The values of **T**^{0}_{i} and **T**^{1}_{i+1}
are defined as follows:

The standard Hermite spline assumes that the keys are equally spaced. Since
this is not a valid assumption, these values are ajusted to calculate **T**^{0}_{i}
and **T**^{1}_{i+1} as follows. If the velocity vector is
specified by the author, the value of **T**_{i} is extracted from the
*keyVelocity* field for the specific key.

If the velocity vector is not specified, it is calculated as follows:

T_{i}= (v_{i+1}-v_{i-1}) / 2

There are special cases as specified below:

If the velocity vector is specified, and the *normalizeVelocity* flag
has value FALSE, the velocity at the key is set to the
corresponding value of the *keyVelocity* field:

T_{i}= keyVelocity[ i ]

If the velocity vector is specified, and the *normalizeVelocity* flag is
TRUE,
the velocity at the key is set using the corresponding value of the *keyVelocity* field:

T_{i}= keyVelocity[i] × ( D_{tot}/ |keyVelocity[i]| )

where:

D

_{tot}is the sum of the distance between all adjacent keys.

or

D

_{tot}= SUM{i=0, i < n-1}(|vi - vi+1|)

Lastly, to accommodate the non-uniform key intervals, the values of **T**^{0}_{i} and **T**^{1}_{i}
are calculated as follows:

T^{0}_{i}=Fi^{+}T_{i}

T^{1}_{i}=F^{-}_{i}T_{i}

where:

F^{-}_{i}= 2 (t_{i+1}- t_{i}) / (t_{i+1}- t_{i-1})

Fi = 2 (t^{+}_{i}- t_{i-1}) / (t_{i+1}- t_{i-1})

If the interpolator is closed, the values of the *key* and *keyValue*
used in these calculations should wrap appropriately:

t

_{-1}= t_{N-2}

v_{-1}= v_{N-2}

t_{N}= t_{1}

v_{N}= t_{1 }

If the interpolator is not closed, and the first and last velocity vectors are not specified by the author, the values are calculated as follows:

T^{0}_{0}=T^{1}_{0}=T^{0}_{N-1}=T^{1}_{N-1}= 0

If the interpolator is not closed, and the first and last velocity vectors are specified by the author, the values are calculated as follows:

T^{0}_{0}=T_{0}

T^{1}_{N-1}=T_{N-1}

where N is the size of the *keyValue* field.

Additional information on the Hermite algorithm is available in
[CATROM].

X3DInterpolatorNode : X3DChildNode { SFFloat [in] set_fraction (-∞,∞) MFFloat [in,out] key [] (-∞,∞) MF<type> [in,out] keyValue [] SFNode [in,out] metadata NULL [X3DMetadataObject] [S|M]F<type> [out] value_changed }

The abstract node *X3DInterpolatorNode* forms the basis for all types of interpolators
specified in this clause.

The *key* field contains the list of key times,
which could appear as:

key [0 0.25 0.65 0.75 1]

to indicate there are five key frames in this node.
The *keyValue* field contains values for the target field,
one complete set of values for each key. Interpolator nodes containing no keys
in the *key* field shall not produce any events. However, an input
event that replaces an empty *key* field with one that contains keys
will cause the interpolator node to produce events the next time that a *
set_fraction* event is received..

The *set_fraction* inputOnly field receives an SFFloat event and causes the interpolator
node function to evaluate, resulting in a *value_changed* output event of the
specified type with the same timestamp as the *set_fraction* event.

The contents of the *keyValue* and *value_changed* fields
are dependent on the type of the node (*e.g.*, the PositionInterpolator
fields use MFVec3f values).
Each value or set of values in the *keyValue* field corresponds
in order to the parameter value in the *key* field.

For interpolator nodes that produce a single value, results are undefined if
the number of values in the *key* field is not the same as the number of
values in the *keyValue* field.

For interpolator nodes that produce multiple values, the *keyValue* field
is an *n*x*m* array of values, where *n* is the number of values
in the *key* field and *m* is the number of values at each key frame.
Each *m* values in the *keyValue* field correspond, in order, to a
parameter value in the *key* field. Each *value_changed* event shall
contain *m* interpolated values. Results are undefined if the number of
values in the *keyValue* field is not a positive integer multiple of the
number of values in the *key* field.

If an *X3DInterpolatorNode* *value_changed* outputOnly field is read before it receives
any inputs, *keyValue*[0] is returned if *keyValue* is not empty.
If *keyValue* is empty (*i.e.*, [ ]), the initial value for the respective
field
type is returned (EXAMPLE (0, 0, 0) for SFVec3f); see
5 Field type reference for initial event values.

The location of an *X3DInterpolatorNode* in the transformation hierarchy has
no effect on its operation. For example, if a parent of an interpolator node
is a Switch node with *whichChoice* set to −1 (*i.e.*, ignore its children),
the interpolator continues to operate as specified (receives and sends events).

A typical simplified structure for a key frame animation implementation involves a TimeSensor, ROUTEs, and the target node.

Transform { Shape IndexedFaceSet { coordIndex='... −1 ... > Coordinate DEF='Moved' point [ x y z, ... ] #t0Geometry} } } CoordinateInterpolator DEF='Mover' key [t0 t1 t2 ] #list of key times, 0 to 1keyValue ' x y z, ... ' #one geometry per key timeTimeSensor DEF='Timer' cycleInterval 5 loop TRUE ROUTE Timer.fraction_changed TO Mover.set_value ROUTE Mover.value_changed TO Moved.point

In typical operation, the key frame *set_fraction* event arrives from
a TimeSensor to signal that the time value has advanced. This value varies from
0 to 1 depending upon where the TimeSensor is in its cycle time.

EXAMPLE If the TimeSensor has a cycleTime of 10 seconds, and 5 seconds has elapsed in its cycle, the set_fraction value will be 0.5.

In this sample structure, the IndexedFaceSet contains a
Coordinate field named
*Moved*. This defines the time equals zero geometry for the node. The
CoordinateInterpolator
node named *Mover* contains the list of key frame times and the corresponding
sets of coordinates in the keyValue field. When the *set_fraction* event
arrives for *key*, the corresponding interpolated *keyValue* is sent
to the target Coordinate node for rendering.

ColorInterpolator : X3DInterpolatorNode { SFFloat [in] set_fraction (-∞,∞) MFFloat [in,out] key [] (-∞,∞) MFColor [in,out] keyValue [] [0,1] SFNode [in,out] metadata NULL [X3DMetadataObject] SFColor [out] value_changed }

The ColorInterpolator node interpolates among a list of MFColor key values
to produce an SFColor (RGB) *value_changed* event.
The number of colours in the *keyValue* field shall be
equal to the number of key frames in the *key* field.
The *keyValue* field and *value_changed*
events are defined in RGB colour space. A linear interpolation using
the value of *set_fraction* as input is performed in HSV space
(see [FOLEY] for description of
RGB and HSV colour spaces). The results are undefined when interpolating
between two consecutive keys with complementary hues.

CoordinateInterpolator : X3DInterpolatorNode { SFFloat [in] set_fraction (-∞,∞) MFFloat [in,out] key [] (-∞,∞) MFVec3f [in,out] keyValue [] (-∞,∞) SFNode [in,out] metadata NULL [X3DMetadataObject] MFVec3f [out] value_changed }

The CoordinateInterpolator node linearly interpolates among a list of MFVec3f
values to produce an MFVec3f *value_changed* event.
The number of coordinates in the *keyValue* field shall
be an integer multiple of the number of key frames in the *key*
field. That integer multiple defines how many coordinates will be contained
in the *value_changed *events.

CoordinateInterpolator2D : X3DInterpolatorNode { SFFloat [in] set_fraction (-∞,∞) MFFloat [in,out] key [] (-∞,∞) MFVec2f [in,out] keyValue [] (-∞,∞) SFNode [in,out] metadata NULL [X3DMetadataObject] MFVec2f [out] value_changed }

This node linearly interpolates among a list of MFVec2f values to produce an
MFVec2f *value_changed* event. The number of coordinates in the *keyValue*
field shall be an integer multiple of the number of key frames in the *key*
field. That integer multiple defines how many coordinates will be contained
in the *value_changed *events.

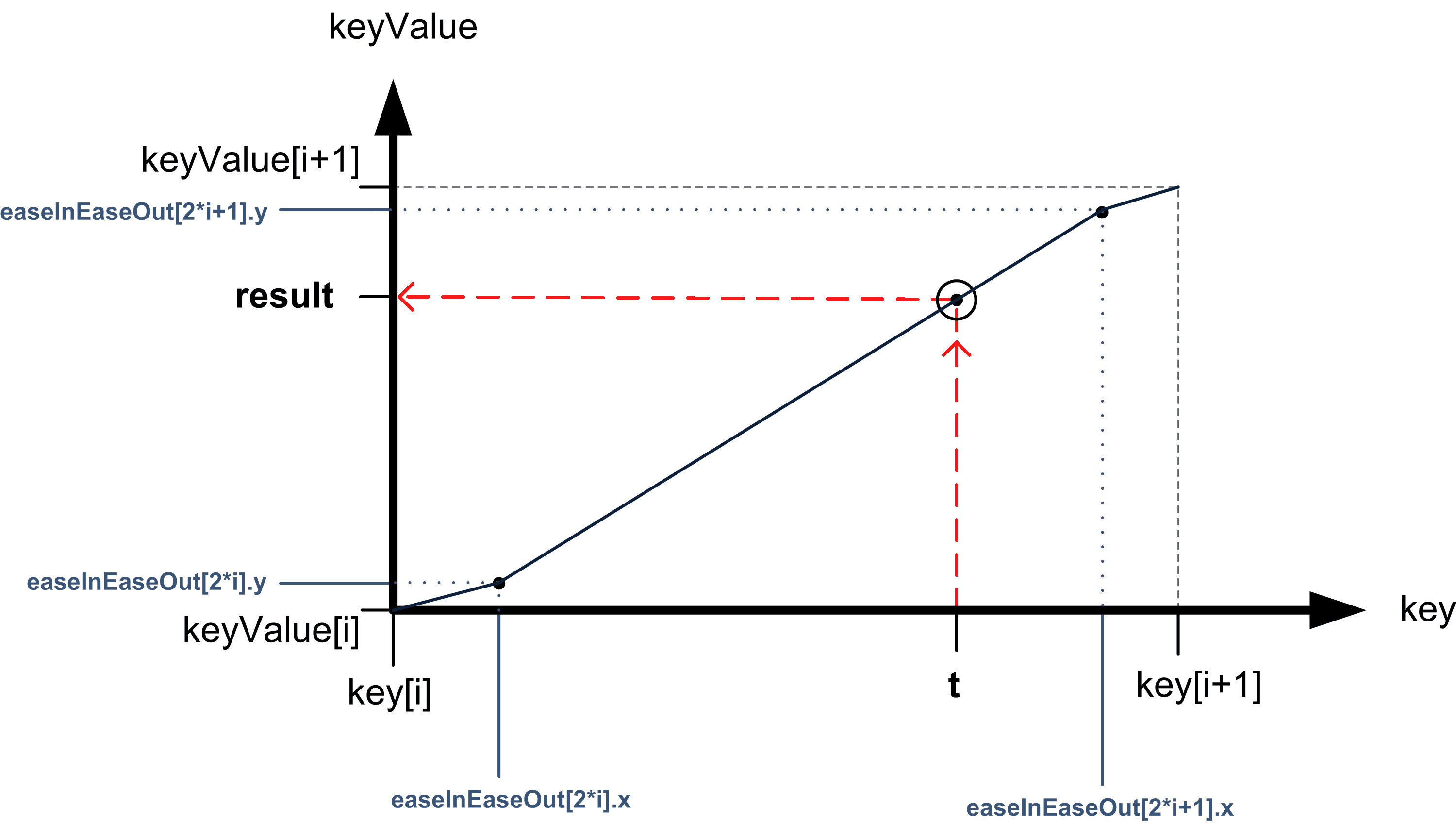

EaseInEaseOut : X3DNode { SFFloat [in] set_fraction (-∞,∞) MFVec2f [in,out] easeInEaseOut [] (-∞,∞) MFFloat [in,out] key [] (-∞,∞) SFNode [in,out] metadata NULL [X3DMetadataObject] SFFloat [out] modifiedFraction_changed }

The EaseInEaseOut node supports controlled gradual transitions by specifying
modifications for TimeSensor node fractions. The EaseInEaseOut node receives a*
set_fraction* field event. It uses the values of the *key* field and the
*easeInEaseOut* field to modify that fraction which is then issued as a *
modifiedFraction_changed* event.

The values of the *easeInEaseOut* field range from zero to one. At zero, there is no
modification of the fraction.

The scope of the easeOut effect on the local fraction is equal to the easeOut value.

EXAMPLE 1 If the easeOut value is 0.4, the object will accelerate out of the previous key and reach a constant speed at 40% of the way from the previous key to the next key.

The scope of the easeIn effect on the local fraction begins when the local fraction reaches (1.0 - easeIn).

EXAMPLE 2 If the easeIn value is 0.3, the object will transition from a constant speed, and begin to decelerate when unmodified local fraction reaches 0.7 (70% of the way from the previous key to the next key).

If the sum of the previous easeIn value, plus the next easeIn value is greater than 1.0, both values are scaled by the same amount so that the sum of the values is equal 1.0. In that case, there is no period of constant speed.

The algorithm for computing the *modifiedFraction_changed* value is:

- Let u be the value of the
*set_fraction*field, representing the proportion the distance between key_{i}and key_{i+1}. - Let e
_{out}be the easeOut value for key_{i}; (*i.e.*, easeOut =*easeInEaseOut*_{i}.y). - Let e
_{in}be the easeIn value for key_{i+1}; (*i.e.*, easeIn =*easeInEaseOut*_{i+1}.x). - Let S be the sum of e
_{in}and e_{out}. - If S < 0,
*modifiedFraction_changed*is set to u. - If S > 1.0, divide e
_{in}and e_{out}by S. - Compute t = 1.0 / (2.0 - e
_{out}- e_{in}). - If u < e
_{out},*modifiedFraction_changed*is set to:

(t / e_{out}) × u^{2} - If u < 1.0 - e
_{in},*modifiedFraction_changed*is set to:

(t × (2u - e_{out})) - Else,
*modifiedFraction_changed*is set to:

1.0 - ((t × (1.0 - u)^{2}) / e_{in})

Figure 19.1 illustrates the algorithm above.

The easeInEaseOut field values shall be monotonically non-decreasing, otherwise results are undefined.

NormalInterpolator : X3DInterpolatorNode { SFFloat [in] set_fraction (-∞,∞) MFFloat [in,out] key [] (-∞,∞) MFVec3f [in,out] keyValue [] (-∞,∞) SFNode [in,out] metadata NULL [X3DMetadataObject] MFVec3f [out] value_changed }

The NormalInterpolator node interpolates among a list
of normal vector sets specified by the *keyValue* field
to produce an MFVec3f *value_changed* event.
The output vector, *value_changed*, shall be
a set of normalized vectors.

Values in the *keyValue* field shall be of unit length.
The number of normals in the *keyValue* field shall be an integer
multiple of the number of key frames in the *key* field. That integer
multiple defines how many normals will be contained in the
*value_changed* events.

Normal interpolation shall be performed on the surface of the unit sphere. That is, the output values for a linear interpolation from a point P on the unit sphere to a point Q also on the unit sphere shall lie along the shortest arc (on the unit sphere) connecting points P and Q. Also, equally spaced input fractions shall result in arcs of equal length. The results are undefined if P and Q are diagonally opposite.

OrientationInterpolator : X3DInterpolatorNode { SFFloat [in] set_fraction (-∞,∞) MFFloat [in,out] key [] (-∞,∞) MFRotation [in,out] keyValue [] [-1,1] or (-∞,∞) SFNode [in,out] metadata NULL [X3DMetadataObject] SFRotation [out] value_changed }

The OrientationInterpolator node interpolates among a
list of rotation values specified in the *keyValue* field
to produce an SFRotation *value_changed* event.
These rotations are absolute in object space and therefore are not cumulative.
The *keyValue* field shall contain exactly as many rotations as
there are key frames in the *key* field.

An orientation represents the final position of an object after a rotation has been applied. An OrientationInterpolator interpolates between two orientations by computing the shortest path on the unit sphere between the two orientations. The interpolation is linear in arc length along this path. The results are undefined if the two orientations are diagonally opposite.

If two consecutive *keyValue *values exist such that
the arc length between them is greater than π,
the interpolation will take place on the arc complement.
For example, the interpolation between the orientations

(0, 1, 0, 0) and (0, 1, 0, 5.0)

is equivalent to the rotation between the orientations

(0, 1, 0, 2π) and (0, 1, 0, 5.0).

PositionInterpolator : X3DInterpolatorNode { SFFloat [in] set_fraction (-∞,∞) MFFloat [in,out] key [] (-∞,∞) MFVec3f [in,out] keyValue [] (-∞,∞) SFNode [in,out] metadata NULL [X3DMetadataObject] SFVec3f [out] value_changed }

The PositionInterpolator node linearly interpolates among
a list of 3D vectors
to produce an SFVec3f *value_changed* event.
The *keyValue* field shall contain exactly
as many values as in the *key* field.

PositionInterpolator2D : X3DInterpolatorNode { SFFloat [in] set_fraction (-∞,∞) MFFloat [in,out] key [] (-∞,∞) MFVec2f [in,out] keyValue [] (-∞,∞) SFNode [in,out] metadata NULL [X3DMetadataObject] SFVec2f [out] value_changed }

The PositionInterpolator node linearly interpolates among a list of 2D vectors
to produce an SFVec2f *value_changed* event. The *keyValue* field
shall contain exactly as many values as in the *key* field.

ScalarInterpolator : X3DInterpolatorNode { SFFloat [in] set_fraction (-∞,∞) MFFloat [in,out] key [] (-∞,∞) MFFloat [in,out] keyValue [] (-∞,∞) SFNode [in,out] metadata NULL [X3DMetadataObject] SFFloat [out] value_changed }

The ScalarInterpolator node linearly interpolates among a list of SFFloat
values to produce an SFFloat *value_changed* event.
This interpolator is appropriate for any parameter defined using
a single floating point value.

EXAMPLE 1 width fields

EXAMPLE 2 radius fields

EXAMPLE 3 intensity fields

The *keyValue* field shall contain exactly as many numbers
as there are key frames in the *key* field.

SplinePositionInterpolator : X3DInterpolatorNode { SFFloat [in] set_fraction (-∞,∞) SFBool [in,out] closed FALSE MFFloat [in,out] key [] (-∞,∞) MFVec3f [in,out] keyValue [] (-∞,∞) MFVec3f [in,out] keyVelocity [] (-∞,∞) SFNode [in,out] metadata NULL [X3DMetadataObject] SFBool [in,out] normalizeVelocity FALSE SFVec3f [out] value_changed }

The SplinePositionInterpolator node non-linearly interpolates among a list of
3D vectors to produce an SFVec3f *value_changed* event. The *keyValue*,
*keyVelocity*, and *key* fields shall each have the same number of
values.

SplinePositionInterpolator2D : X3DInterpolatorNode { SFFloat [in] set_fraction (-∞,∞) SFBool [in,out] closed FALSE MFFloat [in,out] key [] (-∞,∞) MFVec2f [in,out] keyValue [] (-∞,∞) MFVec2f [in,out] keyVelocity [] (-∞,∞) SFNode [in,out] metadata NULL [X3DMetadataObject] SFBool [in,out] normalizeVelocity FALSE SFVec2f [out] value_changed }

The SplinePositionInterpolator2D node non-linearly interpolates among a list
of 2D vectors to produce an SFVec2f *value_changed* event. The *keyValue*,
*keyVelocity*, and *key* fields shall each have the same number of
values.

SplineScalarInterpolator : X3DInterpolatorNode { SFFloat [in] set_fraction (-∞,∞) SFBool [in,out] closed FALSE MFFloat [in,out] key [] (-∞,∞) MFFloat [in,out] keyValue [] (-∞,∞) MFFloat [in,out] keyVelocity [] (-∞,∞) SFNode [in,out] metadata NULL [X3DMetadataObject] SFBool [in,out] normalizeVelocity FALSE SFFloat [out] value_changed }

The SplineScalarInterpolator node non-linearly interpolates among a list of
floats to produce an SFFloat *value_changed* event. The *keyValue*, *
keyVelocity*, and *key* fields shall each have the same number of
values.

SquadOrientationInterpolator : X3DInterpolatorNode { SFFloat [in] set_fraction (-∞,∞) MFFloat [in,out] key [] (-∞,∞) MFRotation [in,out] keyValue [] (-∞,∞) SFNode [in,out] metadata NULL [X3DMetadataObject] SFBool [in,out] normalizeVelocity FALSE SFRotation [out] value_changed }

The SquadOrientationInterpolator node non-linearly interpolates among a list of
rotations to produce an SFRotation *value_changed* event. The *keyValue*
field shall have the same number of values and the *key* field.

The SquadOrientationInterpolator uses the industry standard Squad method for smoothly interpolating orientations. Squad is an acronym for Spherical Cubic Interpolation. The Linear OrientationInterpolator described in 19.4.6 OrientationInterpolator provides spherical linear interpolation. The SquadOrientationInterpolator applies the spline interpolation approach described above to interpolation in quaternion space. For more information on Squad interpolation, see [SHOE].

The Interpolation component provides three levels of support as specified in Table 19.2.

Table 19.2**
— **Interpolation component support levels

Level | Prerequisites | Nodes/Features | Support |
---|---|---|---|

1 |
Core 1 Grouping 1 Shape 1 |
||

X3DInterpolatorNode (abstract) |
n/a | ||

CoordinateInterpolator | All fields fully supported. | ||

OrientationInterpolator | All fields fully supported. | ||

PositionInterpolator | All fields fully supported. | ||

ScalarInterpolator | All fields fully supported. | ||

2 |
Core 1 Grouping 1 Shape 1 |
||

All Level 1 Interpolator nodes | All fields fully supported. | ||

ColorInterpolator | All fields fully supported. | ||

NormalInterpolator | All fields fully supported. | ||

3 |
Core 1 Grouping 1 Shape 1 |
||

All Level 2 Interpolator nodes | All fields fully supported. | ||

CoordinateInterpolator2D | All fields fully supported. | ||

PositionInterpolator2D | All fields fully supported. | ||

4 |
Core 1 Grouping 1 Shape 1 |
||

All Level 3 Interpolator nodes | All fields fully supported. | ||

EaseInEaseOut | All fields fully supported. | ||

SplinePositionInterpolator | All fields fully supported. | ||

SplinePositionInterpolator2D | All fields fully supported. | ||

SplineScalarInterpolator | All fields fully supported. | ||

5 |
Core 1 Grouping 1 Shape 1 |
||

All Level 4 Interpolator nodes | All fields fully supported. | ||

SquadOrientationInterpolator | All fields fully supported. |
