| 1 |
<?xml version="1.0" encoding="UTF-8"?>
|
| 2 |
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
|
| 3 | <X3D profile='Immersive' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'> |
| 4 | <head> |
| 5 | <meta name='title' content='ViewFrustumPrototype.x3d'/> |
| 6 | <meta name='description' content='Define a view frustum associated with a given pair of Viewpoint and NavigationInfo nodes, provided as a reusable prototype.'/> |

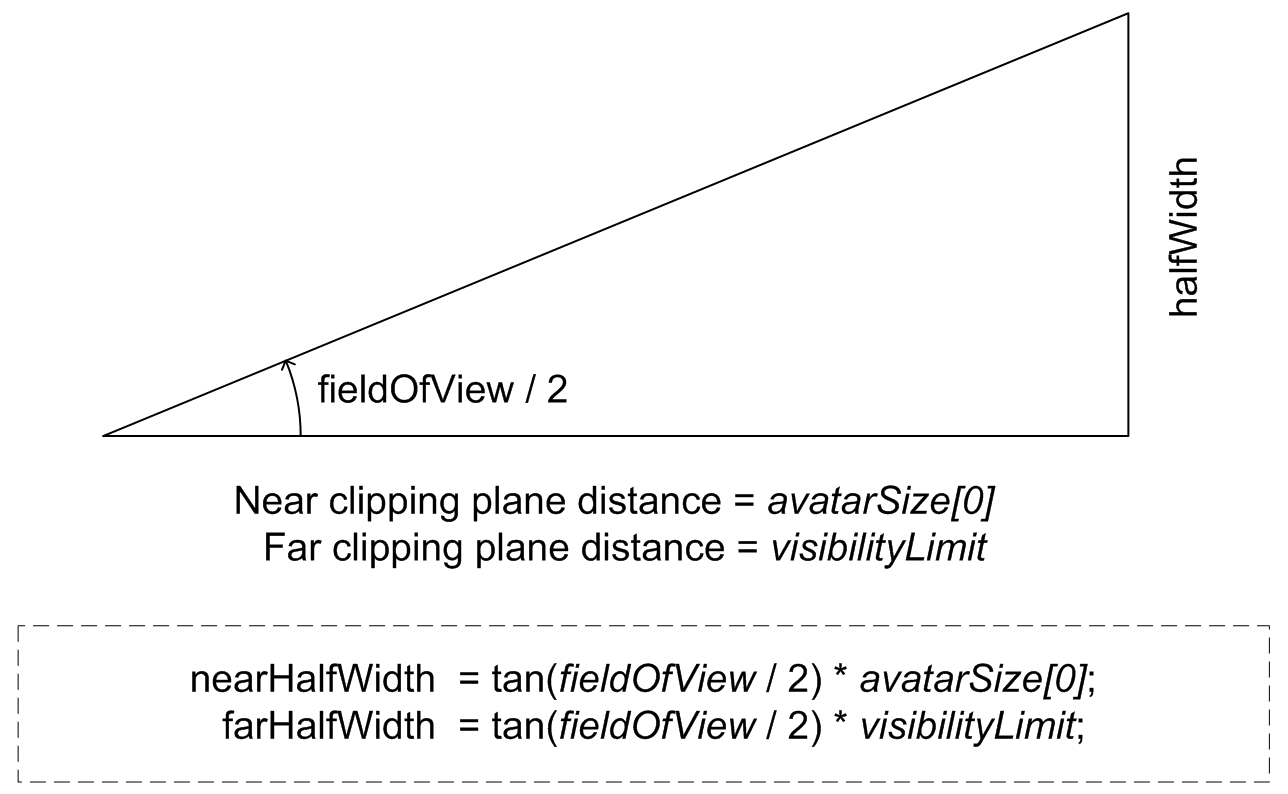

| 7 | <meta name='creator' content='Don Brutzman'/> |
| 8 | <meta name='translated' content='16 August 2008'/> |
| 9 | <meta name='modified' content='20 October 2019'/> |
| 10 | <meta name='reference' content='ViewFrustumExample.x3d'/> |
| 11 | <meta name='drawing' content='ViewFrustumComputation.png'/> |
| 12 |

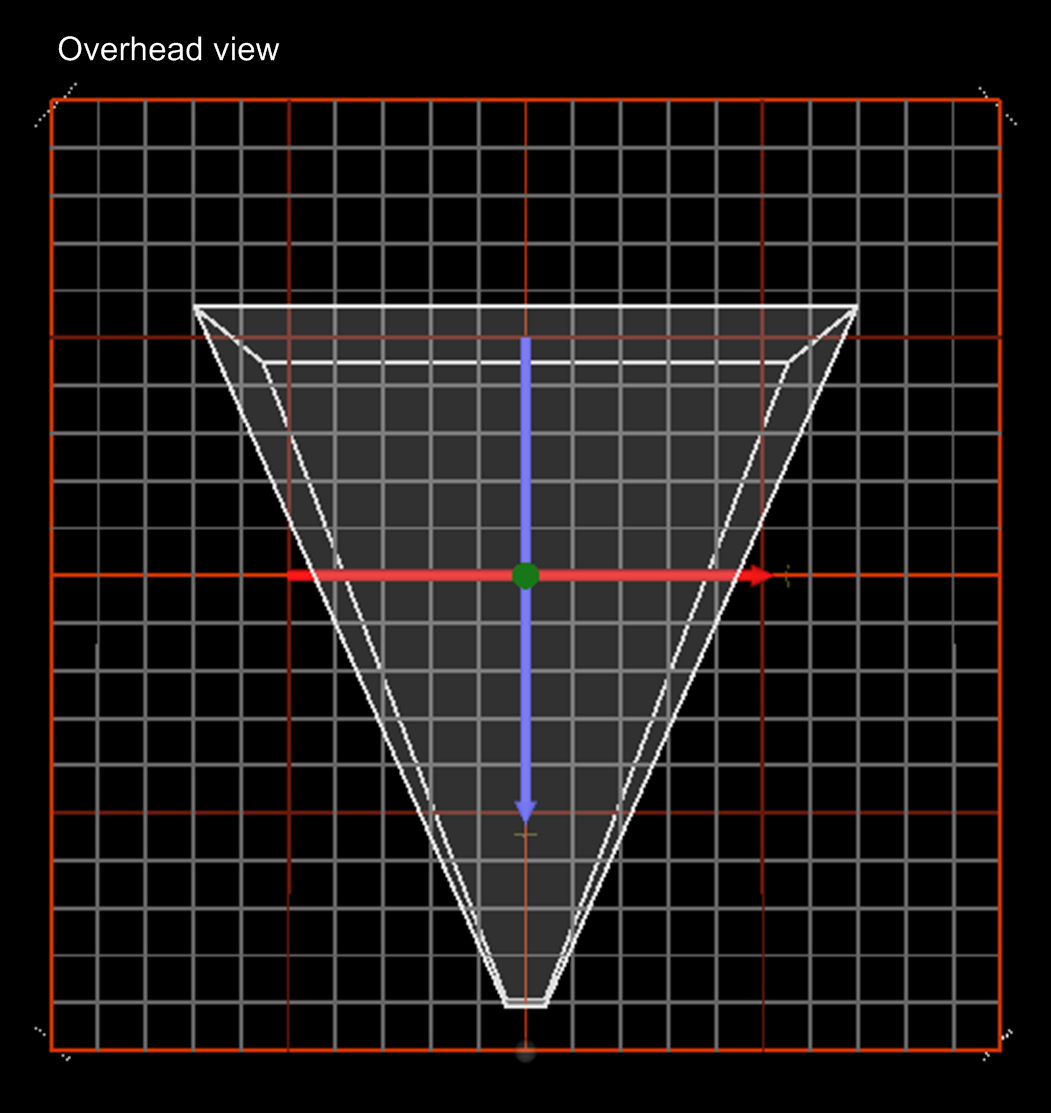

<meta name='Image' content='ViewFrustumOverheadView.png'/>
|
| 13 |
<meta name='Image' content='ViewFrustumObliqueView.png'/>
|
| 14 | <meta name='subject' content='view culling frustum'/> |
| 15 | <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter14Prototypes/ViewFrustumPrototype.x3d'/> |
| 16 | <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/> |
| 17 | <meta name='license' content='../license.html'/> |
| 18 | </head> |
Index for DEF nodes:
FrustumAppearance,
FrustumCoordinate,
FrustumExtrusion,
FrustumLines,
GeometryComputationScript,
OrientationTransform,
PositionTransform,
VisibilitySwitch
| 19 | <Scene> |
| 20 | <WorldInfo title='ViewFrustumPrototype.x3d'/> |
| 21 | <ProtoDeclare name='ViewFrustum' appinfo='Display view frustum associated with a given pair of Viewpoint NavigationInfo nodes'> |
| 22 | <ProtoInterface> |
| 23 |
<field name='ViewpointNode' type='SFNode' accessType='initializeOnly'
appinfo='required: insert Viewpoint DEF or USE node for view of interest'> |
| 24 | <!-- NULL node, ProtoInstance must provide --> |
| 25 | </field> |
| 26 |
<field name='NavigationInfoNode' type='SFNode' accessType='initializeOnly'
appinfo='required: insert NavigationInfo DEF or USE node of interest'> |
| 27 | <!-- NULL node, ProtoInstance must provide --> |
| 28 | </field> |
| 29 |
<field name='visible' type='SFBool' value='true' accessType='inputOutput'
appinfo='whether or not frustum geometry is rendered'/> |
| 30 |
<field name='lineColor' type='SFColor' value='0.9 0.9 0.9' accessType='inputOutput'
appinfo='RGB color of ViewFrustum outline, default value 0.9 0.9 0.9'/> |
| 31 |
<field name='frustumColor' type='SFColor' value='0.8 0.8 0.8' accessType='inputOutput'
appinfo='RGB color of ViewFrustum hull geometry, default value 0.8 0.8 0.8'/> |
| 32 |
<field name='transparency' type='SFFloat' value='0.5' accessType='inputOutput'
appinfo='transparency of ViewFrustum hull geometry, default value 0.5'/> |
| 33 |
<field name='aspectRatio' type='SFFloat' value='0.75' accessType='inputOutput'
appinfo='assumed ratio height/width, default value 0.75'/> |
| 34 |
<field name='trace' type='SFBool' value='false' accessType='initializeOnly'
appinfo='debug support, default false'/> |
| 35 | </ProtoInterface> |
| 36 | <ProtoBody> |
| 37 |
<!-- ROUTE information for VisibilitySwitch node:
[from GeometryComputationScript.visibilitySwitchSelection to whichChoice
]
-->
<Switch DEF='VisibilitySwitch' whichChoice='-1'> |
| 38 |
<!-- ROUTE information for PositionTransform node:
[from GeometryComputationScript.position_changed to translation
]
-->
<Transform DEF='PositionTransform' rotation='0 1 0 3.14159'> |
| 39 |
<!-- ROUTE information for OrientationTransform node:
[from GeometryComputationScript.orientation_changed to rotation
]
-->
<Transform DEF='OrientationTransform'> |
| 40 | <Shape> |
| 41 | <IndexedLineSet DEF='FrustumLines' coordIndex='0 1 2 3 0 -1 4 5 6 7 4 -1 0 4 -1 1 5 -1 2 6 -1 3 7 -1'> |
| 42 |
<!-- Coordinate
FrustumCoordinate is a DEF node that has 1 USE node: USE_1
<!-- ROUTE information for FrustumCoordinate node: [from GeometryComputationScript.point_changed to point ] --> <Coordinate DEF='FrustumCoordinate' point='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0'/> |
| 43 | </IndexedLineSet> |
| 44 | <Appearance> |
| 45 | <Material> |
| 46 | <IS> |
| 47 | <connect nodeField='emissiveColor' protoField='lineColor'/> |
| 48 | </IS> |
| 49 | </Material> |
| 50 | </Appearance> |
| 51 | </Shape> |
| 52 | <Shape> |
| 53 |
<!-- Extrusion
FrustumExtrusion is a DEF node that has 1 USE node: USE_1
<!-- ROUTE information for FrustumExtrusion node: [from GeometryComputationScript.spine_changed to set_spine ] [from GeometryComputationScript.scale_changed to set_scale ] --> <Extrusion DEF='FrustumExtrusion'/> |
| 54 |
<!-- Appearance
FrustumAppearance is a DEF node that has 1 USE node: USE_1 -->
<Appearance DEF='FrustumAppearance'> |
| 55 | <Material> |
| 56 | <IS> |
| 57 | <connect nodeField='diffuseColor' protoField='frustumColor'/> |
| 58 | <connect nodeField='transparency' protoField='transparency'/> |
| 59 | </IS> |
| 60 | </Material> |
| 61 | </Appearance> |
| 62 | </Shape> |
| 63 | <Shape> |
| 64 | <Sphere radius='0.08'/> |
| 65 | <Appearance USE='FrustumAppearance'/> |
| 66 | </Shape> |
| 67 | </Transform> |
| 68 | </Transform> |
| 69 | </Switch> |
| 70 |
<!-- ROUTE information for GeometryComputationScript node:
[from visibilitySwitchSelection to VisibilitySwitch.whichChoice
]
