X3D Model Documentation: Doors.x3d

Event Graph ROUTE Table shows event connections.

--> <!-- DEF nodes index: Door, DoorApp, DoorGeometry, DoorImage, DoorLeftTransform, DoorMat, DoorRight, DoorShape, FilterLeft, MoverLeft, MoverRight, TimerLeft, TimerRight, TouchLeft, TouchRight, TriggerLeft, Wall

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2

18	<Scene>
19	<WorldInfo title='Doors.x3d'/>
20	<Background skyColor='1 1 1'/>
21	<NavigationInfo type='"WALK" "ANY"'/>
22	<Viewpoint description='Initial default' position='0 1.4 10'/>

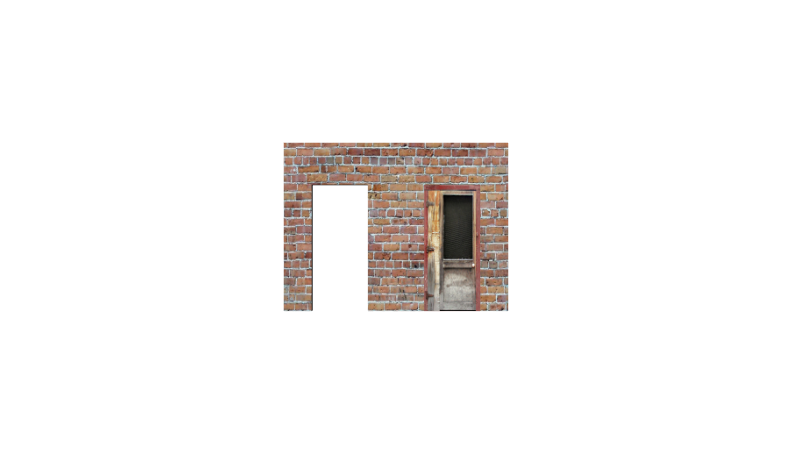

23	<Viewpoint description='Book View' position='0 1.4 4.5'/>
24	<Transform>
25	<Shape>
26	<Appearance>
27	<Material diffuseColor='.6 .2 0' shininess='0'/>
28	<ImageTexture   url=' "brick_3.jpg " "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter08UserInteractivity/brick_3.jpg " "http://www.dei.isep.ipp.pt/~losa/public/cg/UniversalMedia/textures/urban/brick_3.jpg " '/>
29	</Appearance>
30	<IndexedFaceSet DEF='Wall' coordIndex='0 1 2 3 -1 0 3 8 11 -1 4 5 6 7 -1 8 9 10 11 -1 12 15 14 13 -1 12 23 20 15 -1 16 19 18 17 -1 20 23 22 21 -1 0 1 13 12 -1 2 14 15 3 -1 4 16 17 5 -1 7 6 18 19 -1 8 20 21 9 -1 11 10 22 23 -1 0 11 23 12 -1 1 13 14 2 -1 3 15 16 4 -1 7 19 20 8 -1 5 17 18 6 -1 9 21 22 10 -1'>
31	<Coordinate point='-2 3 0 -2 0 0 -1.5 0 0 -1.5 2.25 0 -.5 2.25 0 -.5 0 0 .5 0 0 .5 2.25 0 1.5 2.25 0 1.5 0 0 2 0 0 2 3 0 -2 3 -.1 -2 0 -.1 -1.5 0 -.1 -1.5 2.25 -.1 -.5 2.25 -.1 -.5 0 -.1 .5 0 -.1 .5 2.25 -.1 1.5 2.25 -.1 1.5 0 -.1 2 0 -.1 2 3 -.1'/>
32	</IndexedFaceSet>
33	</Shape>
34	</Transform>
35	<!-- ROUTE information for DoorLeftTransform node:  [from MoverLeft.value_changed to rotation ] -->           <Transform DEF='DoorLeftTransform' center='-.5 0 0' translation='-1 1.125 -.05'>
36	<!-- Group Door is a DEF node that has 1 USE node: USE_1 -->                <Group DEF='Door'>
37	<Shape DEF='DoorShape'>
38	<Appearance DEF='DoorApp'>
39	<Material DEF='DoorMat' diffuseColor='0 .7 0'/>
40	<ImageTexture DEF='DoorImage'   url=' "door_1.jpg " "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter08UserInteractivity/door_1.jpg " "http://www.dei.isep.ipp.pt/~losa/public/cg/UniversalMedia/textures/urban/door_1.jpg " '/>
41	</Appearance>
42	<IndexedFaceSet DEF='DoorGeometry' coordIndex='0 1 2 3 -1 4 7 6 5 -1 0 1 5 4 -1 1 5 6 2 -1 2 6 7 3 -1 3 7 6 4 -1'>
43	<Coordinate point='-.5 -1.125 .05 .5 -1.125 .05 .5 1.125 .05 -.5 1.125 .05 -.5 -1.125 -.05 .5 -1.125 -.05 .5 1.125 -.05 -.5 1.125 -.05'/>
44	<TextureCoordinate point='0 0 1 0 1 1 0 1 0 0 1 0 1 1 0 1 1 0 .95 0 1 .95 .95 .95 1 0 .95 0 1 .95 .95 .95 1 0 .95 0 1 .95 .95 .95 1 0 .95 0 1 .95 .95 .95'/>
45	</IndexedFaceSet>
46	</Shape>
47	</Group>
48	<!-- ROUTE information for MoverLeft node:  [from TimerLeft.fraction_changed to set_fraction ] [from value_changed to DoorLeftTransform.rotation ] -->                <OrientationInterpolator DEF='MoverLeft' key='0 1' keyValue='0 1 0 0 0 1 0 -1'/>
49	<!-- ROUTE information for TimerLeft node:  [from TriggerLeft.triggerTime to startTime ] [from fraction_changed to MoverLeft.set_fraction ] -->                <TimeSensor DEF='TimerLeft' cycleInterval='3' enabled='true' loop='false'/>
50	<!-- ROUTE information for TriggerLeft node:  [from FilterLeft.inputTrue to set_boolean ] [from triggerTime to TimerLeft.startTime ] -->                <TimeTrigger DEF='TriggerLeft'/>
51	<!-- ROUTE information for FilterLeft node:  [from TouchLeft.isActive to set_boolean ] [from inputTrue to TriggerLeft.set_boolean ] -->                <BooleanFilter DEF='FilterLeft'/>
52	<!-- ROUTE information for TouchLeft node:  [from isActive to FilterLeft.set_boolean ] -->                <TouchSensor DEF='TouchLeft' description='touch to activate'/>
53	< ROUTE  fromNode='TouchLeft' fromField='isActive' toNode='FilterLeft' toField='set_boolean'/>
54	< ROUTE  fromNode='FilterLeft' fromField='inputTrue' toNode='TriggerLeft' toField='set_boolean'/>
55	< ROUTE  fromNode='TriggerLeft' fromField='triggerTime' toNode='TimerLeft' toField='startTime'/>
56	< ROUTE  fromNode='TimerLeft' fromField='fraction_changed' toNode='MoverLeft' toField='set_fraction'/>
57	< ROUTE  fromNode='MoverLeft' fromField='value_changed' toNode='DoorLeftTransform' toField='rotation'/>
58	</Transform>
59	<!-- ROUTE information for DoorRight node:  [from MoverRight.value_changed to rotation ] -->           <Transform DEF='DoorRight' center='-.5 0 0' translation='1 1.125 -.05'>
60	<Group USE='Door'/>
61	<!-- ROUTE information for MoverRight node:  [from TimerRight.fraction_changed to set_fraction ] [from value_changed to DoorRight.rotation ] -->                <OrientationInterpolator DEF='MoverRight' key='0 1' keyValue='0 1 0 0 0 1 0 -1'/>
62	<!-- ROUTE information for TimerRight node:  [from TouchRight.touchTime to startTime ] [from fraction_changed to MoverRight.set_fraction ] -->                <TimeSensor DEF='TimerRight' cycleInterval='3' enabled='true' loop='false'/>
63	<!-- ROUTE information for TouchRight node:  [from touchTime to TimerRight.startTime ] -->                <TouchSensor DEF='TouchRight' description='touch to activate'/>
64	< ROUTE  fromNode='TouchRight' fromField='touchTime' toNode='TimerRight' toField='startTime'/>
65	< ROUTE  fromNode='TimerRight' fromField='fraction_changed' toNode='MoverRight' toField='set_fraction'/>
66	< ROUTE  fromNode='MoverRight' fromField='value_changed' toNode='DoorRight' toField='rotation'/>
67	</Transform>
68	</Scene>
69	</X3D>

Event Graph ROUTE Table shows event connections.

--> <!-- DEF nodes index: Door, DoorApp, DoorGeometry, DoorImage, DoorLeftTransform, DoorMat, DoorRight, DoorShape, FilterLeft, MoverLeft, MoverRight, TimerLeft, TimerRight, TouchLeft, TouchRight, TriggerLeft, Wall

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2

X3D Tooltips element index: Appearance, Background, BooleanFilter, Coordinate, Group, head, ImageTexture, IndexedFaceSet, Material, meta, NavigationInfo, OrientationInterpolator, ROUTE, Scene, Shape, TextureCoordinate, TimeSensor, TimeTrigger, TouchSensor, Transform, Viewpoint, WorldInfo, X3D,
plus documentation for accessType definitions, type definitions, XML data types, and field types
