Package X3dForAdvancedModeling.TextureMapping

Class TextureMapComparisonsRectangle

java.lang.Object

X3dForAdvancedModeling.TextureMapping.TextureMapComparisonsRectangle

public class TextureMapComparisonsRectangle
extends Object

Compare ImageTexture mapping for a variety of geometry nodes. This is an excellent test scene for different X3D browsers.

Related links: Catalog page TextureMapComparisonsRectangle, source TextureMapComparisonsRectangle.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information

meta tags	Document Metadata
title	TextureMapComparisonsRectangle.x3d
description	Compare ImageTexture mapping for a variety of geometry nodes. This is an excellent test scene for different X3D browsers.
creator	Sungmin Kwon and Don Brutzman
created	15 December 2017
modified	20 October 2019
reference	TextureMapTesting.pdf

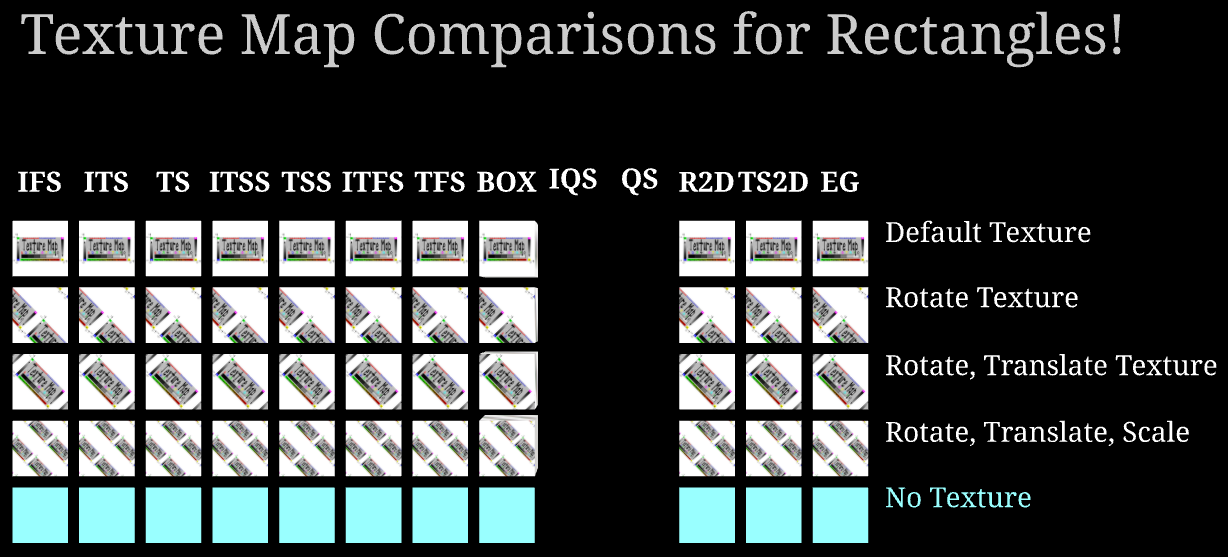

Image	TextureMapComparisonsRectangleX_ITE.png

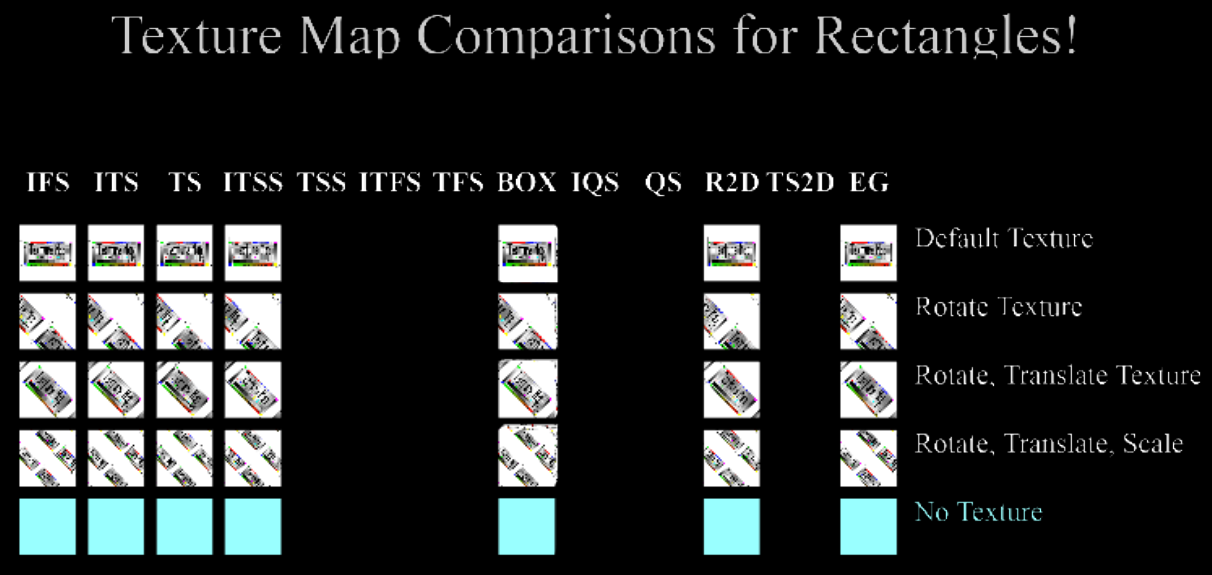

Image	TextureMapComparisonsRectangleX3DOM.png

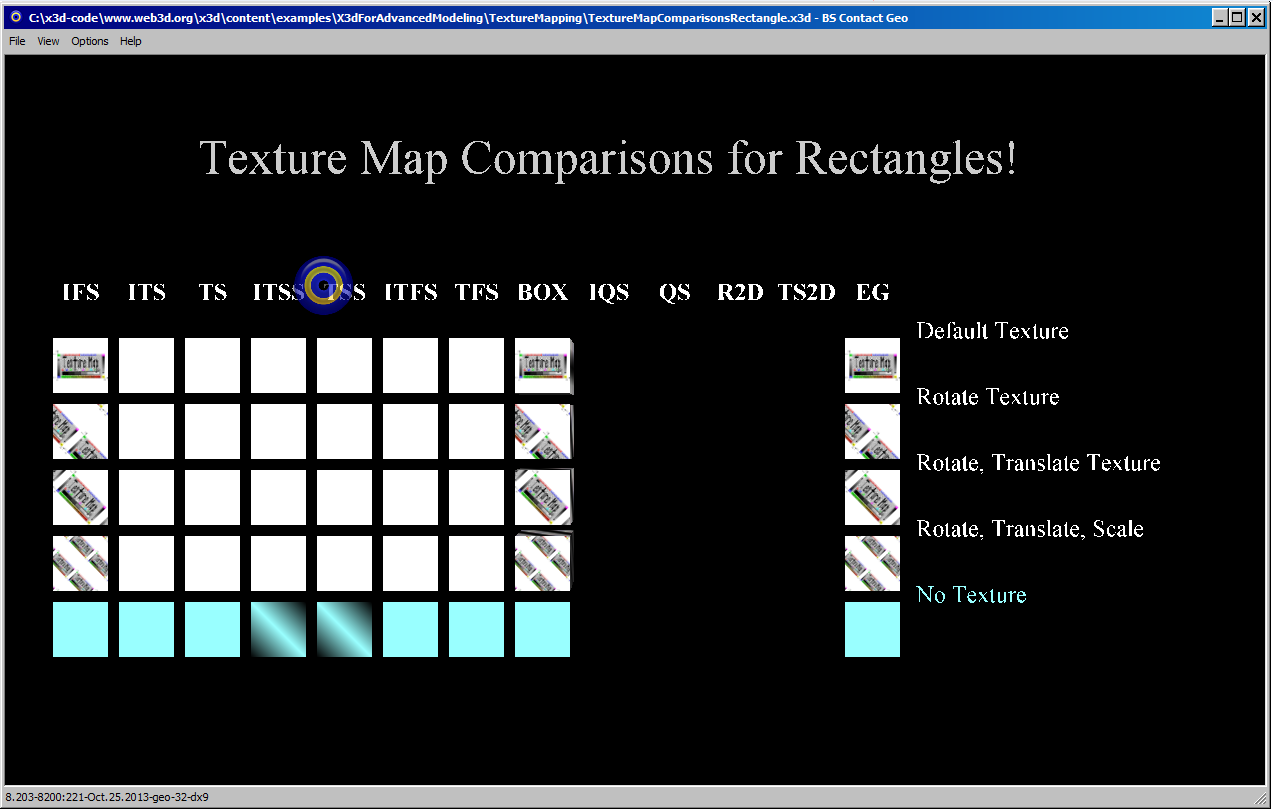

Image	TextureMapComparisonsRectangleBSContact.png

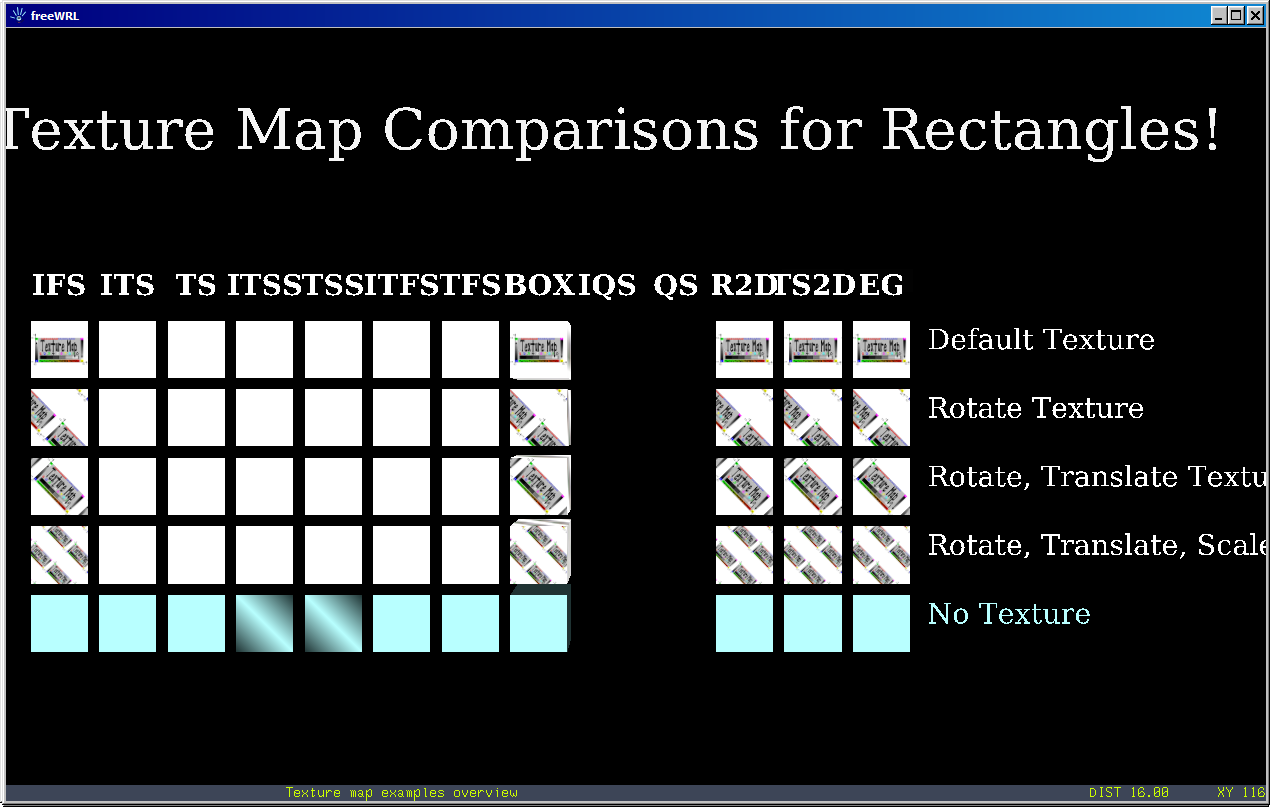

Image	TextureMapComparisonsRectangleFreeWrl.png

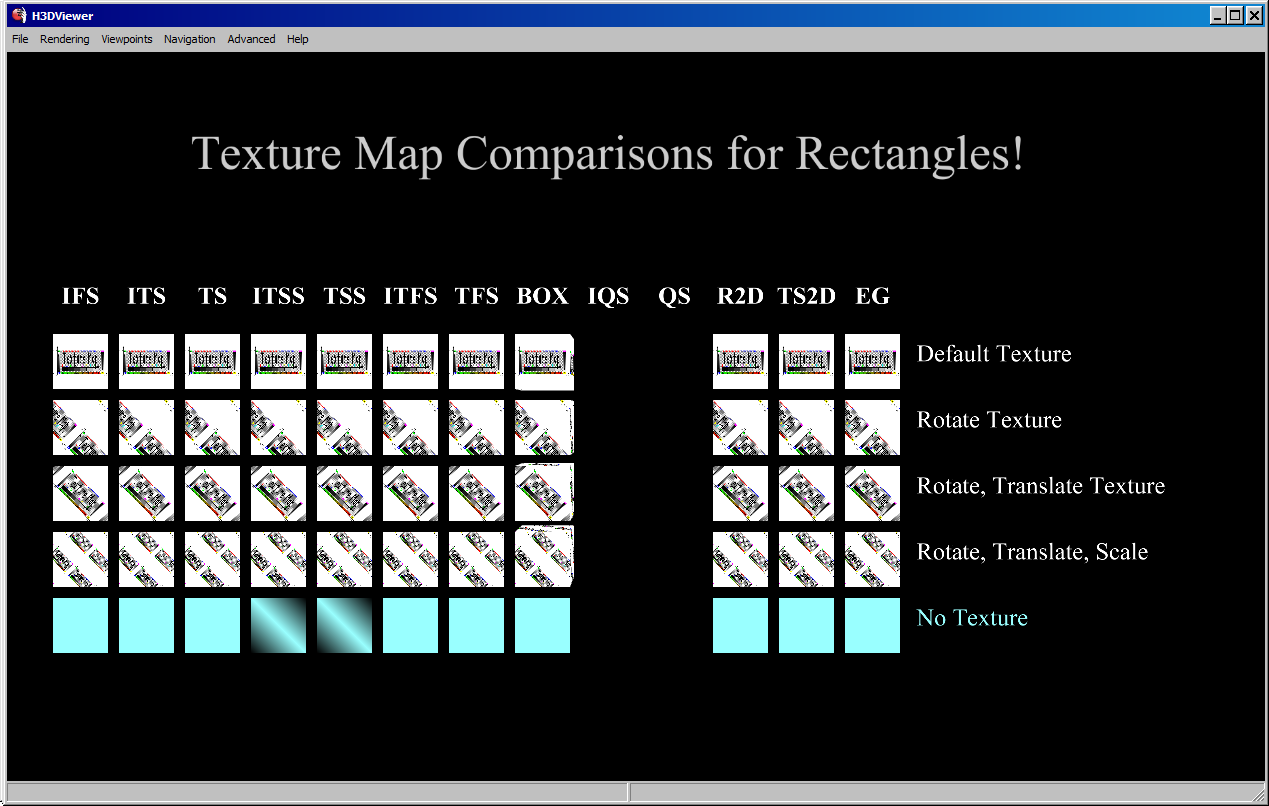

Image	TextureMapComparisonsRectangleH3DViewer.png

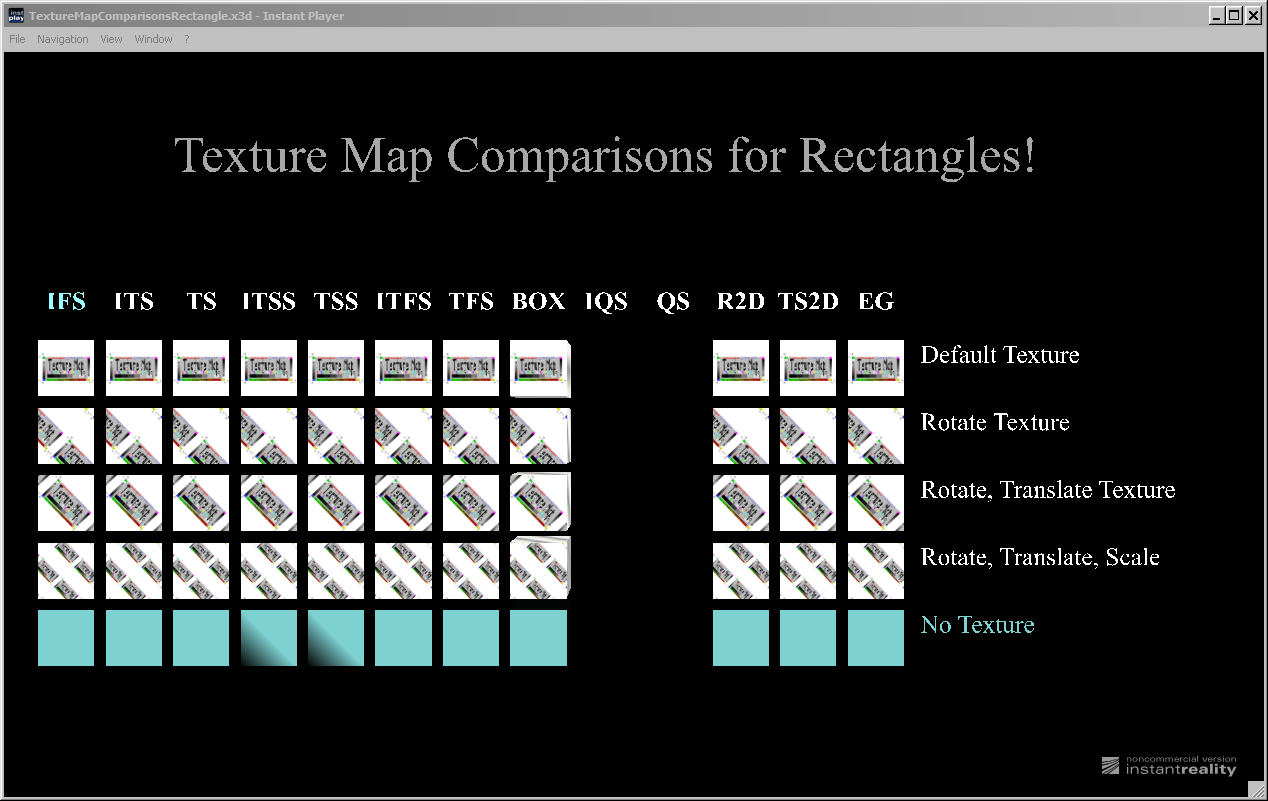

Image	TextureMapComparisonsRectangleInstantReality.png
Image	TextureMapComparisonsRectangleXj3D.png
reference	TextureMapComparisonsCylinder.x3d
reference	https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#Images
specificationSection	X3D Abstract Specification, 18.2.3 Texture coordinates
specificationUrl	https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/texturing.html#Texturecoordinates
Image	https://www.web3d.org/documents/specifications/19775-1/V3.3/Images/ImageTexture.gif
identifier	https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/TextureMapping/TextureMapComparisonsRectangle.x3d
generator	X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license	../license.html

This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

Constructor Summary

Constructors

Constructor	Description
TextureMapComparisonsRectangle()	Default constructor to create this object.

Method Summary

Modifier and Type	Method	Description
org.web3d.x3d.jsail.Core.X3D	getX3dModel()	Provide a shallow copy of the X3D model.
final void	initialize()	Create and initialize the X3D model for this object.
static void	main(String[] args)	Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Details

TextureMapComparisonsRectangle

public TextureMapComparisonsRectangle()

Default constructor to create this object.

Method Details

initialize

public final void initialize()

Create and initialize the X3D model for this object.

getX3dModel

public org.web3d.x3d.jsail.Core.X3D getX3dModel()

Provide a shallow copy of the X3D model.

Returns:

TextureMapComparisonsRectangle model

See Also:

• X3D

main

public static void main(String[] args)

Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Parameters:

args - array of input parameters, provided as arguments

See Also:

• X3D.handleArguments(args)
• X3D.validationReport()
• CommandLine
• CommandLine.USAGE
• ConfigurationProperties
