X3D Model Documentation: ClaudeCodeSimpleModel.x3d

1	`<?xml version="1.0" encoding="UTF-8"?>`
2	`<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 4.0//EN" "https://www.web3d.org/specifications/x3d-4.0.dtd">`
3	<X3D profile='Immersive' version='4.0' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-4.0.xsd'>
4	<head>
5	<meta name='title' content=' ClaudeCodeSimpleModel.x3d '/>
6	<meta name='description' content='Model generated by Claude Code, with small cleanups: Orbiting Primitives with no textures, showing four colored 3D primitives — sphere, box, cone, cylinder — orbiting on an animated platform.'/>
7	<meta name='author' content='Claude (Anthropic)'/>
8	<meta name='translator' content='Don Brutzman'/>
9	<meta name='created' content='27 February 2026'/>
10	<meta name='modified' content='28 February 2026'/>
11	<meta name='documentation' content=' ClaudeCodeExampleChatLog.pdf '/>
12	<meta name=' warning ' content=' original model produced by LLM, careful review and precautions are warranted '/>
13	<meta name='generator' content='Claude Sonnet 4.6'/>
14	<meta name='reference' content='https://claude.ai/new'/>
15	<meta name='reference' content=' X3DOM version originals/x3d_scene.html '/>
16	<meta name='Image' content='ClaudeCodeSimpleModelHtmlX3DOM.png'/>
17	<meta name='Image' content='ClaudeCodeSimpleModelScreenshots.png'/>

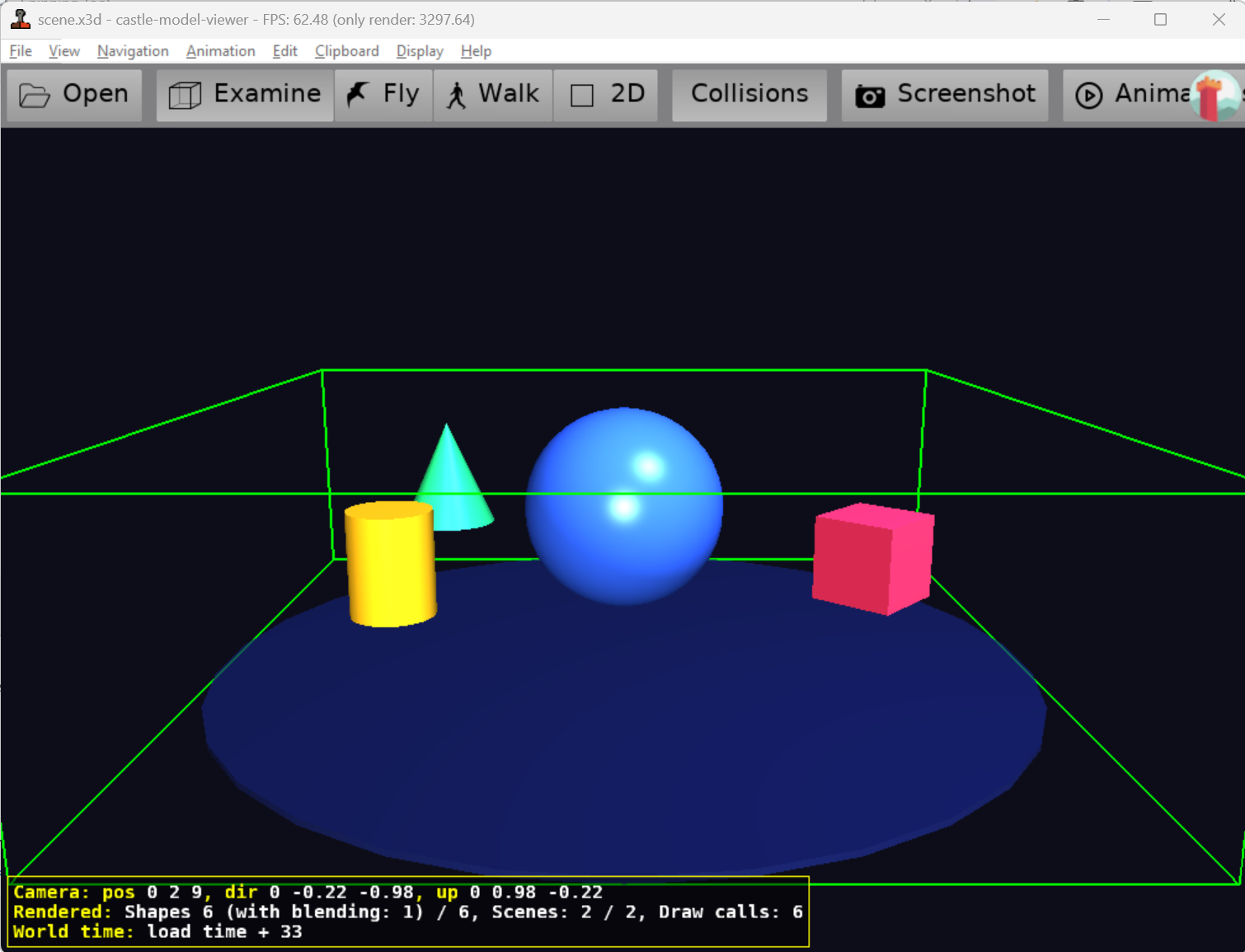

18	<meta name='Image' content='ClaudeCodeSimpleModelScreenshotCastle.png'/>
19	<meta name='reference' content='History of initial changes at https://sourceforge.net/p/x3d/code/38626/log/?path=/www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/LLM'/>
20	<meta name='generator' content='X3D-Edit 4.0, https://www.web3d.org/x3d/tools/X3D-Edit'/>
21	<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/LargeLanguageModels/ClaudeCodeSimpleModel.x3d '/>
22	<meta name='license' content='https://creativecommons.org/licenses/by/4.0/'/>
23	</head>

<!--

Event Graph ROUTE Table shows event connections.

-->
<!--

DEF nodes index: ORBIT_GROUP, SPINNER, TIMER

Index for Viewpoint node: Viewpoint_1

-->

24	<Scene>
25	<Background skyColor='0.05 0.05 0.1'/>
26	<NavigationInfo/>
27	<Viewpoint description='Default' orientation='1 0 0 -0.22' position='0 2 9'/>
28	<!-- Lighting -->
29	<DirectionalLight color='0.8 0.85 1.0' direction='-1 -2 -1' intensity='0.8'/>
30	<PointLight attenuation='0 0 0.1' color='0.5 0.6 1.0' intensity='1.5' location='3 5 3' radius='25'/>
31	<!-- Animated orbit group -->
32	<!-- ROUTE information for ORBIT_GROUP node: [from SPINNER.value_changed to set_rotation ] --> <Transform DEF='ORBIT_GROUP'>
33	<!-- ROUTE information for TIMER node: [from fraction_changed to SPINNER.set_fraction ] --> <TimeSensor DEF='TIMER' cycleInterval='7' loop='true'/>
34	<!-- ROUTE information for SPINNER node: [from TIMER.fraction_changed to set_fraction ] [from value_changed to ORBIT_GROUP.set_rotation ] --> <OrientationInterpolator DEF='SPINNER' key='0 0.5 1' keyValue='0 1 0 0 0 1 0 3.14159 0 1 0 6.28318'/>
35	< ROUTE fromNode='TIMER' fromField='fraction_changed' toNode='SPINNER' toField='set_fraction'/>
36	< ROUTE fromNode='SPINNER' fromField='value_changed' toNode='ORBIT_GROUP' toField='set_rotation'/>
37	<!-- Central Sphere -->
38	<Transform>
39	<Shape>
40	<Appearance>
41	<Material diffuseColor='0.2 0.4 0.9' emissiveColor='0.02 0.05 0.2' shininess='0.85' specularColor='0.7 0.8 1.0'/>
42	</Appearance>
43	<Sphere radius='0.85'/>
44	</Shape>
45	</Transform>
46	<!-- Red Box -->
47	<Transform translation='2.4 0 0'>
48	<Shape>
49	<Appearance>
50	<Material diffuseColor='0.9 0.2 0.35' emissiveColor='0.15 0.01 0.04' shininess='0.75' specularColor='1.0 0.6 0.7'/>
51	</Appearance>
52	<Box size='0.6 0.6 0.6'/>
53	</Shape>
54	</Transform>
55	<!-- Green Cone -->
56	<Transform translation='-2.4 0 0'>
57	<Shape>
58	<Appearance>
59	<Material diffuseColor='0.15 0.85 0.5' emissiveColor='0.01 0.12 0.04' shininess='0.7' specularColor='0.5 1.0 0.7'/>
60	</Appearance>
61	<Cone bottomRadius='0.45' height='1.0'/>
62	</Shape>
63	</Transform>
64	<!-- Yellow Cylinder -->
65	<Transform translation='0 0 2.4'>
66	<Shape>
67	<Appearance>
68	<Material diffuseColor='1.0 0.75 0.1' emissiveColor='0.15 0.1 0.0' shininess='0.8' specularColor='1.0 0.95 0.6'/>
69	</Appearance>
70	<Cylinder height='0.75' radius='0.3'/>
71	</Shape>
72	</Transform>
73	</Transform>
74	<!-- Ground disc -->
75	<Transform translation='0 -1.4 0'>
76	<Shape>
77	<Appearance>
78	<Material diffuseColor='0.1 0.15 0.45' shininess='0.5' specularColor='0.3 0.4 0.8' transparency='0.35'/>
79	</Appearance>
80	<Cylinder height='0.05' radius='3.5'/>
81	</Shape>
82	</Transform>
83	</Scene>
84	</X3D>

<!--

Event Graph ROUTE Table shows event connections.

-->
<!--

DEF nodes index: ORBIT_GROUP, SPINNER, TIMER

Index for Viewpoint node: Viewpoint_1

-->

X3D Tooltips element index: Appearance, Background, Box, Cone, Cylinder, DirectionalLight, head, Material, meta, NavigationInfo, OrientationInterpolator, PointLight, ROUTE, Scene, Shape, Sphere, TimeSensor, Transform, Viewpoint, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table entries with 2 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

TIMER
TimeSensor
fraction_changed
SFFloat

→
ROUTE
event to
(1)

SPINNER
OrientationInterpolator
set_fraction
SFFloat

then

SPINNER
OrientationInterpolator
value_changed
SFRotation

→
ROUTE
event to
(2)

ORBIT_GROUP
Transform
set_rotation
SFRotation

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀

-->
