| 1 |
<?xml version="1.0" encoding="UTF-8"?>
|
| 2 |
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 4.1//EN" "https://www.web3d.org/specifications/x3d-4.1.dtd">
|
| 3 | <X3D profile='Interchange' version='4.1' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-4.1.xsd'> |
| 4 | <head> |
| 5 | <component level='4' name='Networking'/> |
| 6 | <meta name='title' content=' CleatClampInlineGeometry.x3d '/> |
| 7 | <meta name='description' content='CleatClamp STL loaded by InlineGeometry with Appearance applied.'/> |
| 8 | <meta name='created' content='22 February 2026'/> |
| 9 | <meta name='modified' content='Mon, 23 Feb 2026 03:27:08 GMT'/> |
| 10 | <meta name=' warning ' content=' Do not use for climbing or yachting. '/> |
| 11 | <meta name='creator' content='Don Brutzman'/> |
| 12 | <meta name='reference' content='Printable cleat, http://www.thingiverse.com/thing:143653'/> |
| 13 | <meta name='license' content='Creative Commons - Attribution - Share Alike http://creativecommons.org/licenses/by-sa/3.0'/> |
| 14 | <meta name='reference' content=' CleatClamp.x3d '/> |
| 15 | <meta name='reference' content='CleatClampConversionCastle.stl'/> |
| 16 |

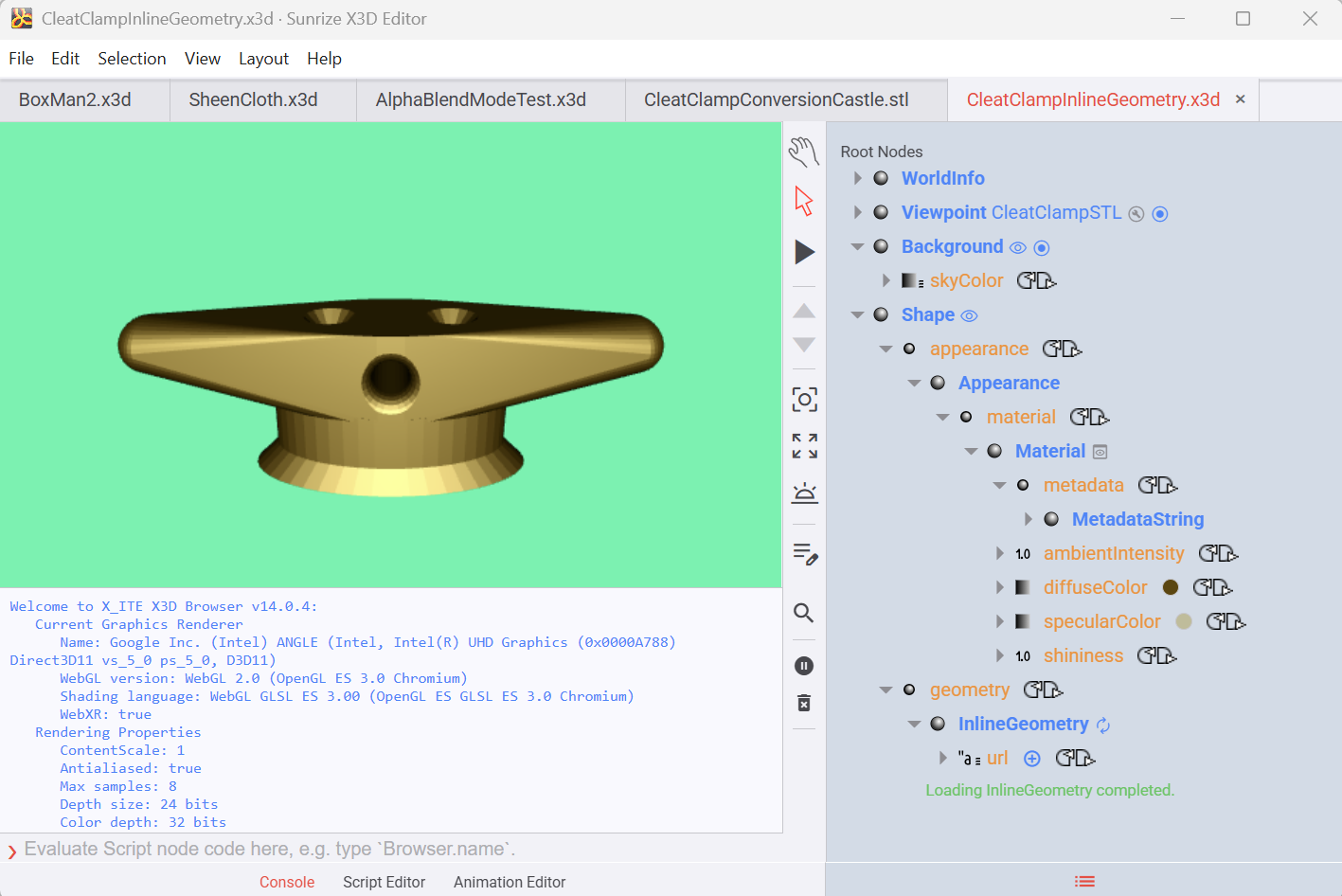

<meta name='Image' content='CleatClampInlineGeometrySunrize.png' />
|
| 17 | <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/AdditiveManufacturing/CleatClampInlineGeometry.x3d '/> |
| 18 | <meta name='generator' content='Sunrize X3D Editor V2.0.4, https://create3000.github.io/sunrize/'/> |
| 19 | <meta name='generator' content='X3D-Edit 4.0, https://www.web3d.org/x3d/tools/X3D-Edit'/> |
| 20 | <meta name='license' content='../license.html'/> |
| 21 | </head> |
| 22 | <Scene> |
| 23 | <WorldInfo title='CleatClampInlineGeometry.x3d'/> |
| 24 | <Viewpoint DEF='CleatClampSTL' centerOfRotation='0 0.2 0' description='CleatClamp STL geometry with Appearance applied' orientation='1 0 0 -0.380506' position='0 0.8 1.5'> |
| 25 | <!-- local lookat point: 0 0.2 0 --> |
| 26 | </Viewpoint> |
| 27 | <Background skyColor='0 0.960784 0.670588'/> |
| 28 | <Shape> |
| 29 | <Appearance> |
| 30 | <Material ambientIntensity='0.25' diffuseColor='0.384722 0.266993 0' shininess='0.06' specularColor='0.757576 0.738847 0.590386'> |
| 31 | <MetadataString name='Universal Media Library' value='"Metals 15"'/> |
| 32 | </Material> |
| 33 | </Appearance> |
| 34 | <InlineGeometry containerField='geometry' url=' "CleatClampConversionCastle.stl" "https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/AdditiveManufacturing/CleatClampConversionCastle.stl" '/> |
| 35 | </Shape> |
| 36 | </Scene> |
| 37 | </X3D> |
<!--
