<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Immersive' version='3.3 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='titlecontent='Primitives.x3d'/>
<meta name='descriptioncontent='The Primitives on Pedestals scene highlights the geometry primitives, placing each one above a Gothic pedestal. Of note is that the pedestal itself is built using only the geometry primitive nodes.'/>
<meta name='creatorcontent='David R. Nadeau'/>
<meta name='translatorcontent='Don Brutzman'/>
<meta name='createdcontent='1 July 1998'/>
<meta name='translatedcontent='2 February 2014'/>
<meta name='modifiedcontent='20 October 2019'/>
<meta name='Imagecontent='Primitives.png'/>
<meta name='referencecontent='Pedestal.x3d'/>
<meta name='referencecontent='originals/prim.wrl'/>
<meta name='referencecontent=' http://www.siggraph.org/s98 '/>
<meta name='referencecontent=' http://www.siggraph.org/s98/conference/courses/18.html '/>
<meta name='referencecontent=' http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/slides/mt0030.htm '/>
<meta name='referencecontent=' http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/vrml97.htm '/>
<meta name='referencecontent=' https://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='identifiercontent=' https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/Primitives.x3d '/>
<meta name='generatorcontent='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generatorcontent='X3D-Edit, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../license.html'/>
</head>
<!--

Index for DEF node : Pedestal

Index for Viewpoint image : Viewpoint_1
-->
<Scene>
<WorldInfo info='"Copyright (c) 1997, David R. Nadeau"title='VRML Primitives'/>

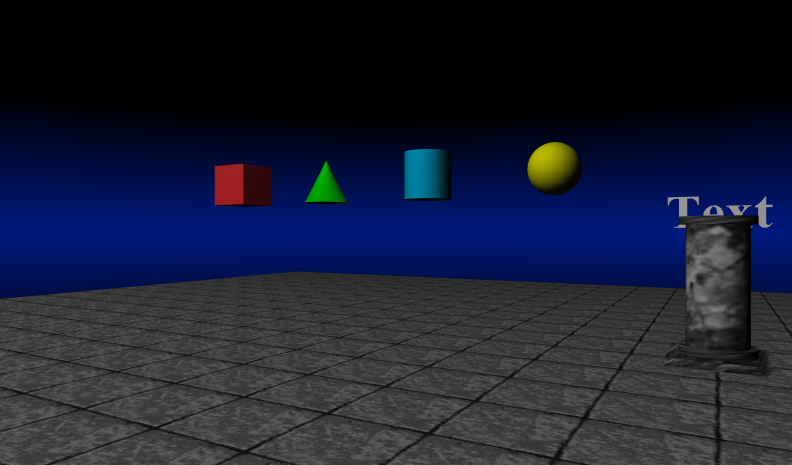

<Viewpoint description='Entry vieworientation='0.0 1.0 0.0 0.52position='5.0 1.6 8.0'/>
<NavigationInfo headlight='falsetype='"WALK" "ANY"'/>
<Background skyAngle='1.37 1.57 1.77skyColor='0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.5 0.0 0.0 0.0'/>
<PointLight ambientIntensity='0.2color='0.7 0.7 0.7location='0.0 8.0 10.0'/>
<Transform translation='-3.0 0.0 0.0'>
<Inline DEF='Pedestal'
  url=' "Pedestal.x3d" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/Pedestal.x3d" "Pedestal.wrl" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/Pedestal.wrl" '/>

<Transform scale='0.375 0.375 0.375translation='0.0 2.5 0.0'>
<Shape>
<Appearance>
<Material diffuseColor='1.0 0.2 0.2'/>
</Appearance>
<Box/>
</Shape>
</Transform>
</Transform>
<Transform translation='-1.0 0.0 0.0'>
<Inline USE='Pedestal'/>
<Transform scale='0.375 0.375 0.375translation='0.0 2.5 0.0'>
<Shape>
<Appearance>
<Material diffuseColor='0.0 1.0 0.0'/>
</Appearance>
<Cone/>
</Shape>
</Transform>
</Transform>
<Transform translation='1.0 0.0 0.0'>
<Inline USE='Pedestal'/>
<Transform scale='0.375 0.375 0.375translation='0.0 2.5 0.0'>
<Shape>
<Appearance>
<Material diffuseColor='0.0 0.8 1.0'/>
</Appearance>
<Cylinder/>
</Shape>
</Transform>
</Transform>
<Transform translation='3.0 0.0 0.0'>
<Inline USE='Pedestal'/>
<Transform scale='0.375 0.375 0.375translation='0.0 2.5 0.0'>
<Shape>
<Appearance>
<Material diffuseColor='1.0 1.0 0.0'/>
</Appearance>
<Sphere/>
</Shape>
</Transform>
</Transform>
<Transform translation='5.0 0.0 0.0'>
<Inline USE='Pedestal'/>
<Transform scale='0.375 0.375 0.375translation='0.0 2.2 0.0'>
<Shape>
<Appearance>
<Material diffuseColor='1.0 1.0 1.0'/>
</Appearance>
<Text string='"Text"'>
<FontStyle justify='"MIDDLE" "MIDDLE"size='2.0style='BOLD'/>
</Text>
</Shape>
</Transform>
</Transform>
<Shape>
<Appearance>
<TextureTransform scale='20.0 20.0'/>
<Material ambientIntensity='0.1'/>
<ImageTexture
  url=' "stone2.jpg" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/stone2.jpg" '/>
</Appearance>
<IndexedFaceSet solid='falsecoordIndex='0 1 2 3 -1'>
<Coordinate point='-10.0 0.0 10.0 10.0 0.0 10.0 10.0 0.0 -10.0 -10.0 0.0 -10.0'/>
</IndexedFaceSet>
</Shape>
</Scene>
</X3D>
<!--
