<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "http://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Immersive' version='3.0 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.0.xsd '>
<head>
<meta name='titlecontent='Figure21_4cShinyGreyVase.x3d'/>
<meta name='creatorcontent='Figure 21.4c, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
<meta name='referencecontent=' http://www.wiley.com/legacy/compbooks/vrml2sbk/ch21/21fig04c.htm '/>
<meta name='translatorcontent='Don Brutzman'/>
<meta name='createdcontent='22 September 2000'/>
<meta name='modifiedcontent='15 January 2011'/>
<meta name='descriptioncontent='A shiny grey vase. Compare Figures 21.4a, 4b, 4c and 4d.'/>
<meta name='referencecontent='Figure21_4aDullGreyVase.x3d'/>
<meta name='referencecontent='Figure21_4bSomewhatShinyGreyVase.x3d'/>
<meta name='referencecontent='Figure21_4dVeryShinyGreyVase.x3d'/>
<meta name='identifiercontent=' http://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter21ShinyMaterials/Figure21_4cShinyGreyVase.x3d '/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../../license.html'/>
</head>
<!--

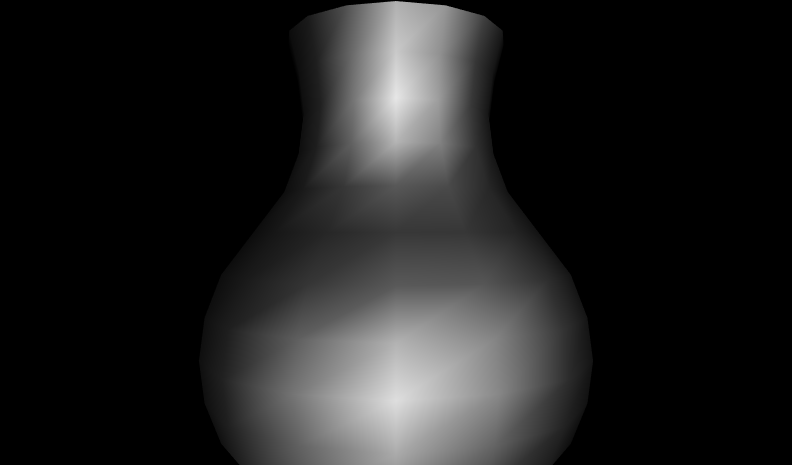

Index for Viewpoint image : Viewpoint_1
-->
<Scene>
<Viewpoint description='Shiny grey vaseorientation='1 0 0 0position='0 2 6'/>
<Group>
<PointLight intensity='0.2location='3 3 3'/>
<Shape>
<Extrusion creaseAngle='1.57crossSection='1 0 0.92 -0.38 0.71 -0.71 0.38 -0.92 0 -1 -0.38 -0.92 -0.71 -0.71 -0.92 -0.38 -1 -0 -0.92 0.38 -0.71 0.71 -0.38 0.92 0 1 0.38 0.92 0.71 0.71 0.92 0.38 1 0endCap='falsescale='1.8 1.8 1.95 1.95 2.0 2.0 1.95 1.95 1.8 1.8 1.5 1.5 1.2 1.2 1.05 1.05 1.0 1.0 1.05 1.05 1.15 1.15solid='falsespine='0 0.0 0 0 0.4 0 0 0.8 0 0 1.2 0 0 1.6 0 0 2.0 0 0 2.4 0 0 2.8 0 0 3.2 0 0 3.6 0 0 4.0 0'/>
<Appearance>
<Material ambientIntensity='0.4diffuseColor='0.15 0.15 0.15shininess='0.08specularColor='0.7 0.7 0.7'/>
</Appearance>
</Shape>
</Group>
</Scene>
</X3D>
<!--

Index for Viewpoint image : Viewpoint_1
-->

<!-- Color key: <X3dNode field='value'/> matches <XmlElement attribute='value'/>
(Light blue background: behavior node) (Grey background: inserted documentation) (Magenta background: X3D extensibility)
-->

<!-- Additional help information about X3D scenes: X3D Resources, X3D Scene Authoring Hints and X3D Tooltips -->
