X3D Model Documentation: Figure14_2ElevationGridMountain.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Interactive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content='Figure14_2ElevationGridMountain.x3d'/>
  6            <meta name='creator' content='Figure 14.2, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
  7            <meta name='reference' content='http://www.wiley.com/legacy/compbooks/vrml2sbk/ch14/14fig02.htm'/>
  8            <meta name='translator' content='Don Brutzman'/>
  9            <meta name='created' content='19 August 2000'/>
 10            <meta name='modified' content='20 October 2019'/>
 11            <meta name='description' content='A mountain using a 9x9 ElevationGrid. Compare Figure14_2ElevationGridMountain.x3d, Figure16_7VertexColoredElevationGridMountain.x3d and Figure17_08bTexturedElevationGridMountain.x3d'/>
 12            <meta name='reference' content='../Chapter16Color/Figure16_7VertexColoredElevationGridMountain.x3d'/>
 13            <meta name='reference' content='../Chapter17Textures/Figure17_08bTexturedElevationGridMountain.x3d'/>
 14            <meta name='identifier' content='https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter14ElevationGrid/Figure14_2ElevationGridMountain.x3d'/>
 15            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 16            <meta name='license' content='../../license.html'/>
 17       </head>
<!--
<!-- to top Index for DEF node: Index for Viewpoint node: Viewpoint_1
-->
 18       <Scene>
 19            <WorldInfo title='Figure14_2ElevationGridMountain.x3d'/>

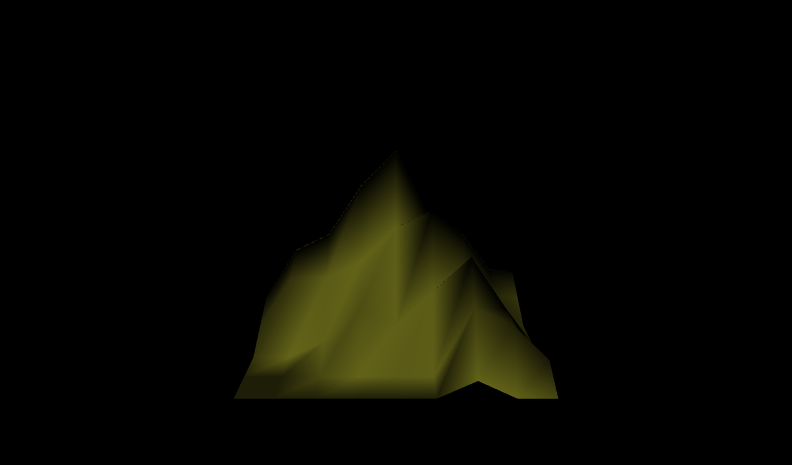

 20            <Viewpoint description='go tell it' orientation='1 0 0 -0.3' position='4 8 20'/>
 21            <Shape>
 22                 <Appearance>
 23                      <Material diffuseColor='0.4 0.4 0.1'/>
 24                 </Appearance>
 25                 <ElevationGrid creaseAngle='1.57' solid='false' xDimension='9' zDimension='9' height='0.0 0.0 0.5 1.0 0.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 2.5 0.5 0.0 0.0 0.0 0.0 0.0 0.5 0.5 3.0 1.0 0.5 0.0 1.0 0.0 0.0 0.5 2.0 4.5 2.5 1.0 1.5 0.5 1.0 2.5 3.0 4.5 5.5 3.5 3.0 1.0 0.0 0.5 2.0 2.0 2.5 3.5 4.0 2.0 0.5 0.0 0.0 0.0 0.5 1.5 1.0 2.0 3.0 1.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 2.0 1.5 0.5 0.0 0.0 0.0 0.0 0.0 0.0 0.5 0.0 0.0'/>
 26            </Shape>
 27       </Scene>
 28  </X3D>
<!--
<!-- to top Index for DEF node: Index for Viewpoint node: Viewpoint_1
-->
