<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Interchange' version='3.0 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.0.xsd '>
<head>
<meta name='titlecontent='Figure06_12DeskLampBaseTwoArms.x3d'/>
<meta name='creatorcontent='Figure 6.12, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
<meta name='referencecontent=' http://www.wiley.com/legacy/compbooks/vrml2sbk/ch06/06fig12.htm '/>
<meta name='transcribercontent='Don Brutzman'/>
<meta name='createdcontent='8 October 2000'/>
<meta name='modifiedcontent='20 October 2019'/>
<meta name='descriptioncontent='The first and second arms of the desk lamp, each rotated using a center of rotation at the lower end of each arm. See Figures 6.11 and 9.9 for comparison.'/>
<meta name='identifiercontent=' https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter06RotatingShapes/Figure06_12DeskLampBaseTwoArms.x3d '/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../../license.html'/>
</head>
<!--

Index for DEF nodes : LampArm, White

Index for Viewpoint image : Viewpoint_1
-->
<Scene>
<WorldInfo title='Figure06_12DeskLampBaseTwoArms.x3d'/>

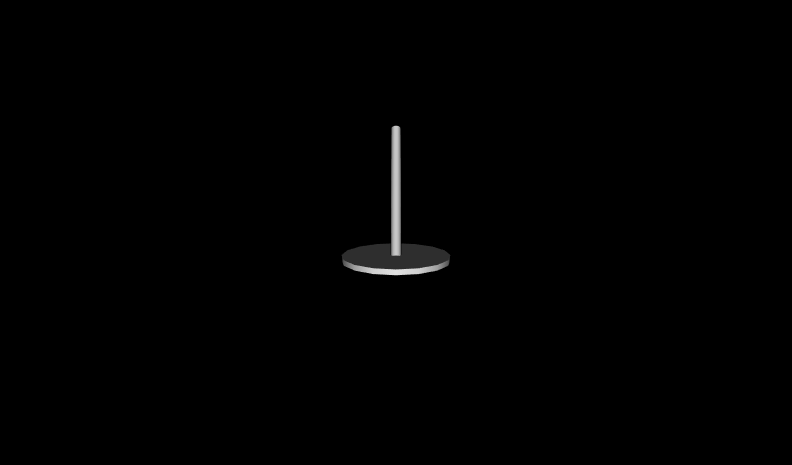

<Viewpoint description='View lamp baseorientation='1 0 0 -0.2position='0 0.25 1'/>
<Group>
<Shape>
<Cylinder height='0.01radius='0.1'/>
<Appearance DEF='White'>
<Material diffuseColor='0.9 0.9 0.9'/>
</Appearance>
</Shape>
<Transform center='0 -0.15 0rotation='1 0 0 -0.7translation='0 0.15 0'>
<Shape DEF='LampArm'>
<Cylinder height='0.3radius='0.01'/>
<Appearance USE='White'/>
</Shape>
<Transform center='0 -0.15 0rotation='1 0 0 1.9translation='0 0.3 0'>
<Shape USE='LampArm'/>
</Transform>
</Transform>
</Group>
</Scene>
</X3D>
<!--
