X3D Model Documentation: Figure06_07bRotationMinus45zWithAxes.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content=' Figure06_07bRotationMinus45zWithAxes.x3d '/>
  6            <meta name='creator' content='Figure 6.7b, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
  7            <meta name='reference' content=' http://www.wiley.com/legacy/compbooks/vrml2sbk/ch06/06fig07b.htm '/>
  8            <meta name='translator' content='Don Brutzman'/>
  9            <meta name='created' content='6 October 2000'/>
 10            <meta name='modified' content='20 October 2019'/>

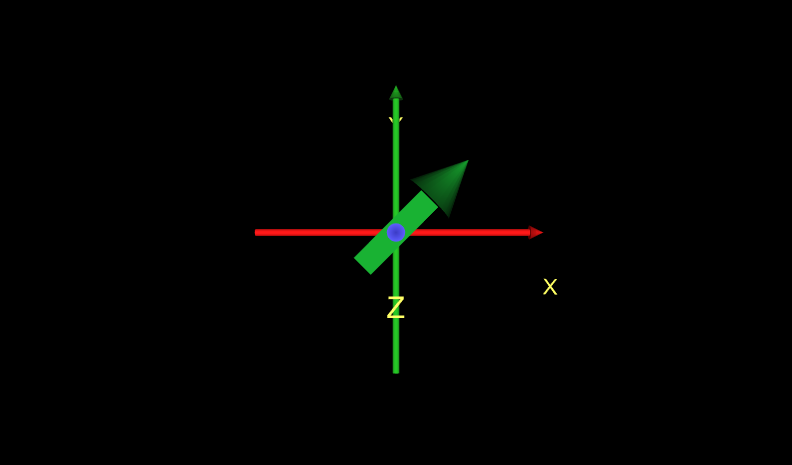

 11            <meta name='description' content='Rotating -45 degrees about Z axis, with coordinate axes superimposed to show X3D/VRML directions'/>
 12            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter06RotatingShapes/Figure06_07bRotationMinus45zWithAxes.x3d '/>
 13            <meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 14            <meta name='license' content='../../license.html'/>
 15       </head>
<!--
<!-- -->
<!-- to top Index for DEF nodes: CoordinateAxes, GREEN_APPEARANCE

Index for Viewpoint node: Viewpoint_1
-->
 16       <Scene>
 17            <WorldInfo title='Figure06_07bRotationMinus45zWithAxes.x3d'/>
 18            <Viewpoint description='View shape' position='0 0 6'/>
 19            <!-- -45 degrees equals -0.785 radians, 0 0 1 indicates Z axis -->
 20            <Transform rotation='0 0 1 -0.785'>
 21                 <Transform translation='0 0.8 0'>
 22                      <Shape>
 23                           <Cone bottomRadius='0.3' height='0.6'/>
 24
                         <!-- Appearance GREEN_APPEARANCE is a DEF node that has 1 USE node: USE_1 -->
                          <Appearance DEF='GREEN_APPEARANCE'>
 25                                <Material diffuseColor='0.1 0.7 0.2'/>
 26                           </Appearance>
 27                      </Shape>
 28                 </Transform>
 29                 <Shape>
 30                      <Box size='0.25 1 0.25'/>
 31                      <Appearance USE='GREEN_APPEARANCE'/>
 32                 </Shape>
 33            </Transform>
 34            <!-- Adding this Inline reference to another scene superimposes X3D/VRML coordinate system axes. -->
 35            <Transform scale='1.5 1.5 1.5'>
 36                 <Inline DEF='CoordinateAxes'   url=' "../../X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.x3d" "https://savage.nps.edu/Savage/Tools/Authoring/CoordinateAxes.x3d" "../../X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.wrl" "https://savage.nps.edu/Savage/Tools/Authoring/CoordinateAxes.wrl" '/>
 37            </Transform>
 38       </Scene>
 39  </X3D>
<!--
<!-- -->
