X3D Model Documentation: Columns.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='title' content=' Columns.x3d '/>
  6            <meta name='description' content='Columns and torches: this world uses an externally defined Torch prototype node with an animated flame, placed on a column, then instanced multiple times to form a double row of columns. A glowing window at the end creates a goal for the column row... whatever it might be.'/>
  7            <meta name='creator' content='David R. Nadeau'/>
  8            <meta name='translator' content='Don Brutzman'/>
  9            <meta name='created' content='1 July 1998'/>
 10            <meta name='translated' content='2 February 2014'/>
 11            <meta name='modified' content='20 October 2019'/>
 12            <meta name='reference' content='originals/columns.wrl'/>
 13            <meta name='reference' content='http://www.siggraph.org/s98'/>
 14            <meta name='reference' content=' http://www.siggraph.org/s98/conference/courses/18.html '/>
 15            <meta name='reference' content=' http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/slides/mt0500.htm '/>
 16            <meta name='reference' content=' http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/vrml97.htm '/>
 17            <meta name='reference' content=' https://www.web3d.org/x3d/content/examples/X3dResources.html '/>
 18            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/Columns.x3d '/>
 19            <meta name='generator' content=' Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html '/>
 20            <meta name='generator' content='X3D-Edit, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 21            <meta name='license' content='../license.html'/>
 22       </head>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF nodes index: Column, ColumnAndTorch, ColumnRow, Entry

Index for Viewpoint node: Entry

Index for ExternProtoDeclare definition: Torch
-->
 23       <Scene>
 24            <ExternProtoDeclare name='Torch'   url=' "aTorch.x3d#Torch" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/aTorch.x3d#Torch" "aTorch.wrl#Torch" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/aTorch.wrl#Torch" '/>
 25            <WorldInfo info='"Copyright (c) 1997, David R. Nadeau"' title='Columns and torches'/>

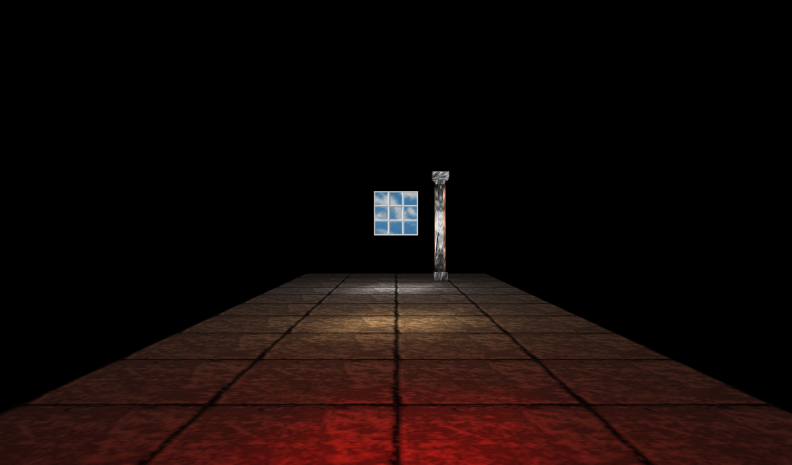

 26            <Viewpoint DEF='Entry' description='Entry view' position='0.0 1.6 10.0'/>
 27            <NavigationInfo headlight='false' speed='4.0' type='"WALK" "ANY"'/>
 28            <Background/>
 29            <PointLight location='0.0 0.5 -6.0'/>
 30            <PointLight color='1.0 0.8 0.5' location='0.0 0.5 0.0'/>
 31            <PointLight color='0.8 0.0 0.0' location='0.0 0.5 6.0'/>
 32
          <!-- Transform ColumnRow is a DEF node that has 1 USE node: USE_1 -->
           <Transform DEF='ColumnRow' translation='-1.5 0.0 0.0'>
 33
               <!-- Transform ColumnAndTorch is a DEF node that has 2 USE nodes: USE_1, USE_2 -->
                <Transform DEF='ColumnAndTorch' rotation='0.0 1.0 0.0 1.571'>
 34
                    <!-- Transform Column is a DEF node that has 4 USE nodes: USE_1, USE_2, USE_3, USE_4 -->
                     <Transform DEF='Column' scale='0.5 0.7 0.5'>
 35                           <Inline   url=' "Column.x3d" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/Column.x3d" "Column.wrl" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/Column.wrl" '/>
 36                      </Transform>
 37                      <Transform scale='0.5 0.5 0.5' translation='0.0 2.0 0.15'>
 38                           <ProtoInstance name='Torch'/>
 39                      </Transform>
 40                 </Transform>
 41                 <Transform translation='0.0 0.0 -9.0'>
 42                      <Transform USE='Column'/>
 43                 </Transform>
 44                 <Transform translation='0.0 0.0 -6.0'>
 45                      <Transform USE='ColumnAndTorch'/>
 46                 </Transform>
 47                 <Transform translation='0.0 0.0 -3.0'>
 48                      <Transform USE='Column'/>
 49                 </Transform>
 50                 <Transform translation='0.0 0.0 3.0'>
 51                      <Transform USE='Column'/>
 52                 </Transform>
 53                 <Transform translation='0.0 0.0 6.0'>
 54                      <Transform USE='ColumnAndTorch'/>
 55                 </Transform>
 56                 <Transform translation='0.0 0.0 9.0'>
 57                      <Transform USE='Column'/>
 58                 </Transform>
 59            </Transform>
 60            <Transform rotation='0.0 1.0 0.0 3.14159'>
 61                 <Transform USE='ColumnRow'/>
 62            </Transform>
 63            <Transform scale='0.5 0.5 0.5' translation='0.0 1.5 -9.0'>
 64                 <Shape>
 65                      <Appearance>
 66                           <ImageTexture   url=' "window.jpg " "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/window.jpg " '/>
 67                      </Appearance>
 68                      <IndexedFaceSet solid='false' coordIndex='0 1 2 3' texCoordIndex='0 1 2 3'>
 69                           <TextureCoordinate point='0.0 0.0 1.0 0.0 1.0 1.0 0.0 1.0'/>
 70                           <Coordinate point='-1.5 0.0 0.0 1.5 0.0 0.0 1.5 3.0 0.0 -1.5 3.0 0.0'/>
 71                      </IndexedFaceSet>
 72                 </Shape>
 73            </Transform>
 74            <Transform translation='-3.5 0.0 -12.0'>
 75                 <Shape>
 76                      <Appearance>
 77                           <TextureTransform scale='4.0 15.0'/>
 78                           <Material ambientIntensity='0.5'/>
 79                           <ImageTexture   url=' "stone2.jpg " "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/stone2.jpg " '/>
 80                      </Appearance>
 81                      <ElevationGrid solid='false' xDimension='8' zDimension='15' zSpacing='2.0' height='0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0'/>
 82                 </Shape>
 83            </Transform>
 84       </Scene>
 85  </X3D>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF nodes index: Column, ColumnAndTorch, ColumnRow, Entry

Index for Viewpoint node: Entry

Index for ExternProtoDeclare definition: Torch
-->
X3D Tooltips element index: Appearance, Background, Coordinate, ElevationGrid, ExternProtoDeclare, head, ImageTexture, IndexedFaceSet, Inline, Material, meta, NavigationInfo, PointLight, ProtoInstance, Scene, Shape, TextureCoordinate, TextureTransform, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table with 0 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

line 38
ProtoInstance
Torch 		No direct ROUTE connection found for events to/from this node.
This ProtoInstance contains SFNode/MFNode fieldValue declarations with
direct access to other nodes, and thus has potential to produce run-time animation.

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀
-->
