X3D Model Documentation: Figure07_07bScaleHalfzWithAxes.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='titlecontent='Figure07_07bScaleHalfzWithAxes.x3d'/>
  6            <meta name='creatorcontent='Figure 7.7b, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
  7            <meta name='referencecontent='http://www.wiley.com/legacy/compbooks/vrml2sbk/ch07/07fig07b.htm'/>
  8            <meta name='translatorcontent='Don Brutzman'/>
  9            <meta name='createdcontent='8 October 2000'/>
 10            <meta name='modifiedcontent='20 October 2019'/>
 11            <meta name='descriptioncontent='Scaling down by 0.5 along the Z-axis direction and building a sphere, with coordinate axes superimposed to show X3D/VRML directions'/>
 12            <meta name='identifiercontent='https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter07ScalingShapes/Figure07_07bScaleHalfzWithAxes.x3d'/>
 13            <meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
 14            <meta name='licensecontent='../../license.html'/>
 15       </head>
<!--

<!-- -->

<!-- to top Index for DEF node: CoordinateAxes

Index for Viewpoint node: Viewpoint_1
-->
 16       <Scene>
 17            <WorldInfo title='Figure07_07bScaleHalfzWithAxes.x3d'/>

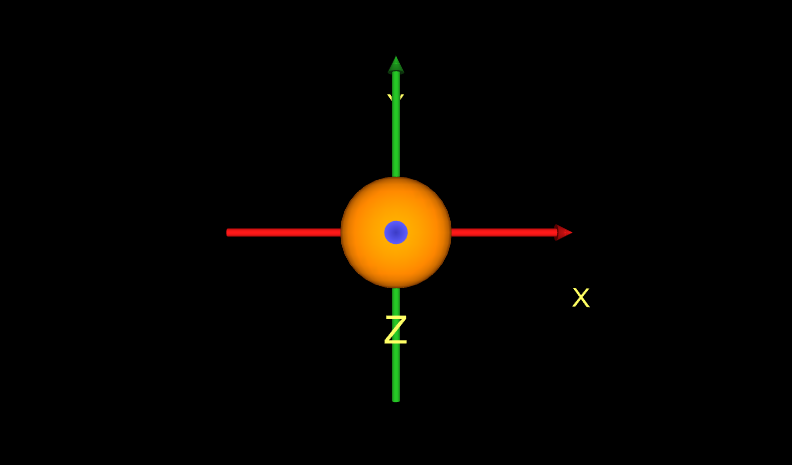

 18            <Viewpoint description='View shape'/>
 19            <Transform scale='1 1 0.5'>
 20                 <Shape>
 21                      <Sphere/>
 22                      <Appearance>
 23                           <Material diffuseColor='1 0.6 0emissiveColor='0.1 0 0specularColor='1 0.1 0'/>
 24                      </Appearance>
 25                 </Shape>
 26            </Transform>
 27            <!-- Adding this Inline reference to another scene superimposes X3D/VRML coordinate system axes. -->
 28            <Transform scale='3 3 3'>
 29                 <Inline DEF='CoordinateAxes'   url=' "../../X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.x3d" "https://savage.nps.edu/Savage/Tools/Authoring/CoordinateAxes.x3d" "../../X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.wrl" "https://savage.nps.edu/Savage/Tools/Authoring/CoordinateAxes.wrl" '/>
 30            </Transform>
 31       </Scene>
 32  </X3D>
<!--

<!-- -->

<!-- to top Index for DEF node: CoordinateAxes

Index for Viewpoint node: Viewpoint_1
-->
X3D Tooltips element index: Appearance, head, Inline, Material, meta, Scene, Shape, Sphere, Transform, Viewpoint, WorldInfo, X3D, accessType and type, XML data types, field types

-->
