DEF node index:
| 14 | <Scene> |
| 15 | <!-- shape X Y Z R H # grid indices --> |
| 16 | <WorldInfo title='SphericalMineExample.x3d'/> |
| 17 | <ExternProtoDeclare name='SphericalMine' appinfo='Spherical floating mine moored to bottom' url=' "../../Weapons/UnderwaterMines/SphericalMinePrototype.x3d#SphericalMine" "https://www.web3d.org/x3d/content/examples/Savage/Weapons/UnderwaterMines/SphericalMinePrototype.x3d#SphericalMine" "../../Weapons/UnderwaterMines/SphericalMinePrototype.wrl#SphericalMine" "https://www.web3d.org/x3d/content/examples/Savage/Weapons/UnderwaterMines/SphericalMinePrototype.wrl#SphericalMine" '> |
| 18 |
<field name='description' type='SFString' accessType='initializeOnly'
appinfo='Description for each mine contact.'/> |
| 19 |
<field name='color' type='SFColor' accessType='inputOutput'
appinfo='Mine color can be used to indicate status (found/unknown/disabled/) tactic etc.'/> |
| 20 |
<field name='translation' type='SFVec3f' accessType='inputOutput'
appinfo='Location of mine center in local world coordinates.'/> |
| 21 |
<field name='scale' type='SFVec3f' accessType='inputOutput'
appinfo='Scale factor to change spherical mine size default diameter = 1m.'/> |
| 22 |
<field name='bboxCenter' type='SFVec3f' accessType='initializeOnly'
appinfo='Bounding box for collision detection of mine.'/> |
| 23 |
<field name='tetherPoints' type='MFVec3f' accessType='inputOutput'
appinfo='Top and bottom endpoints of line tether that anchors this mine to the bottom.'/> |
| 24 |
<field name='proximityIsActive' type='SFBool' accessType='outputOnly'
appinfo='proximityIsActive can be used to activate information or interaction when the viewer nears the mine.'/> |
| 25 |
<field name='proximitySize' type='SFVec3f' accessType='inputOutput'
appinfo='proximitySize provides overall box dimensions for proximity; thus (10 10 10) yields approximate radius 5 to 7 meters.'/> |
| 26 | </ExternProtoDeclare> |

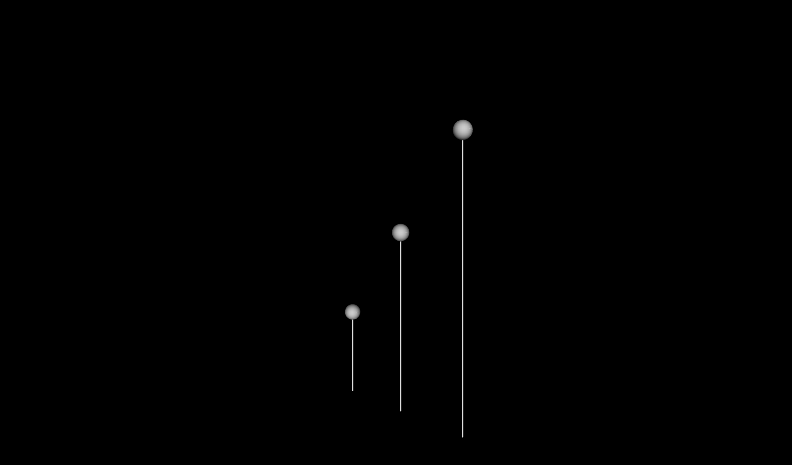

| 27 | <Viewpoint description='Three mines' orientation='0 1 0 2.5' position='24 -15 -15'/> |
| 28 | <ProtoInstance name='SphericalMine'> |
| 29 | <fieldValue name='description' value='Spherical Mine #1'/> |
| 30 | <fieldValue name='translation' value='5 -20 15'/> |
| 31 | <fieldValue name='tetherPoints' value='0 0 0 0 -5 0'/> |
| 32 | </ProtoInstance> |
| 33 | <ProtoInstance name='SphericalMine'> |
| 34 | <fieldValue name='description' value='Spherical Mine 2'/> |
| 35 | <fieldValue name='translation' value='5 -15 10'/> |
| 36 | <fieldValue name='tetherPoints' value='0 0 0 0 -10 0'/> |
| 37 | </ProtoInstance> |
| 38 | <ProtoInstance name='SphericalMine'> |
| 39 | <fieldValue name='description' value='Spherical Mine #3'/> |
| 40 | <fieldValue name='translation' value='5 -10 5'/> |
| 41 | <fieldValue name='tetherPoints' value='0 0 0 0 -15 0'/> |
| 42 | </ProtoInstance> |
| 43 | </Scene> |
| 44 | </X3D> |
DEF node index:
Event Graph ROUTE Table with 0 ROUTE connections total, showing X3D event-model relationships for this scene.
Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.
| line 28
ProtoInstance SphericalMine |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 33
ProtoInstance SphericalMine |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 38
ProtoInstance SphericalMine |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
<!--
