X3D Model Documentation: Rockan.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='https://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content=' Rockan.x3d '/>
  6            <meta name='description' content='The wedge-shaped Swedish Rockan GMI-100 mines are anti-ship weapons with acoustic and magnetic activation. These are reduced signature mines that are believed to be difficult to detect.'/>
  7            <meta name='creator' content='Don Brutzman'/>
  8            <meta name='translator' content=' NIST Vrml2X3d, beta version, http://ovrt.nist.gov/v2_x3d.html '/>
  9            <meta name='created' content='2 November 1999'/>
 10            <meta name='modified' content='16 January 2014'/>

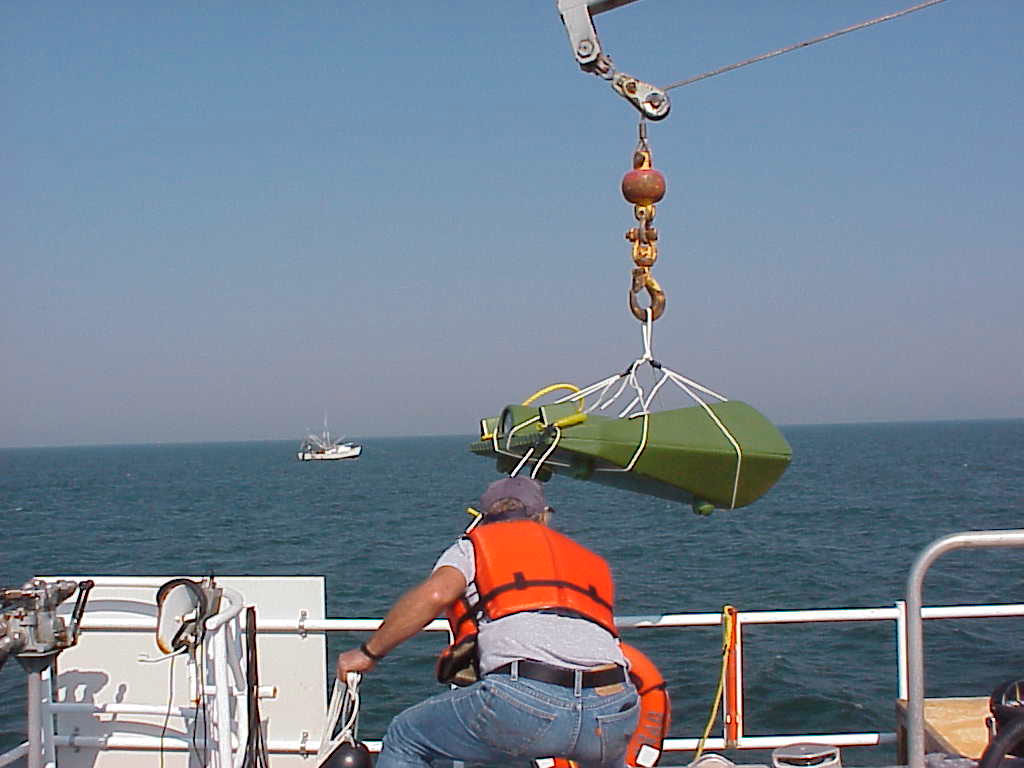

 11            <meta name='photo' content='RockanHoistDeploy.jpg'/>
 12            <meta name='reference' content='RockanMineTarget.wrl'/>
 13            <meta name='photo' content='MantaInert.jpg'/>
 14            <meta name='reference' content=' http://www.exwar.org/whatsnew/mwp/appendix_a.htm '/>
 15            <meta name='reference' content=' http://www.nap.edu/html/tech_21st/uw2.htm '/>
 16            <meta name='subject' content='Rockan mine'/>
 17            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/Weapons/UnderwaterMines/Rockan.x3d '/>
 18            <meta name='generator' content='X3D-Edit 3.2, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 19            <meta name='license' content='../../license.html'/>
 20       </head>
<!--
