X3D Model Documentation: UssColeTerroristAttackDIS.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <component level='1' name='DIS'/>
  6            <meta name='title' content=' UssColeTerroristAttackDIS.x3d '/>
  7            <meta name='description' content='Networked model of the terrorist attack on the USS COLE. Run TerroristBoatControlPanel to drive the boat.'/>
  8            <meta name='creator' content='James Harney'/>
  9            <meta name='created' content='5 November 2001'/>
 10            <meta name='modified' content='20 October 2019'/>
 11            <meta name='reference' content='SimulationStartPanel.bat'/>
 12            <meta name='reference' content='RhibBoatControlPanel.bat'/>
 13            <meta name='reference' content='TerroristBoatControlPanel.bat'/>
 14            <meta name='reference' content=' SimulationStartPanel.java '/>
 15            <meta name='reference' content=' ModePanel.java '/>
 16            <meta name='reference' content=' AboutSimulator.java '/>
 17            <meta name='reference' content=' TerroristBoatControlPanel.java '/>
 18            <meta name='reference' content=' TerroristBoatActionInterpreter.java '/>
 19            <meta name='reference' content=' RHIBBoatControlPanel.java '/>
 20            <meta name='reference' content=' RHIBBoatActionInterpreter.java '/>
 21            <meta name='reference' content=' http://www.foia.navy.mil/usscole/index.html '/>
 22            <meta name='reference' content=' https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/UssColeTerroristAttack.ppt '/>
 23            <meta name='reference' content=' https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/UssColeTerroristAttack.ppt '/>
 24            <meta name='reference' content='http://www.pilotonline.com'/>
 25            <meta name='reference' content=' http://www.prop1.org/nucnews/nucnews.htm '/>
 26            <meta name='reference' content=' http://www.jpost.com/Editions/2001/08/12/Features/Features.32382.html '/>
 27            <meta name='reference' content=' https://www.web3d.org/x3d/content/examples/Savage/Scenarios/CollisionUssGreenvilleEhimeMaru/CollisionCourses.x3d '/>
 28            <meta name='reference' content='https://www.web3d.org/x3d/content/examples/Savage/Scenarios/CollisionUssGreenvilleEhimeMaru/CollisionCourses.wrl'/>
 29            <meta name='reference' content=' https://www.web3d.org/x3d/content/examples/Savage/Tools/Animation/WaypointInterpolatorPrototype.x3d '/>
 30            <meta name='reference' content=' https://www.fas.org/man/dod-101/navy/docs/swos/cmd/cp17/sld001.htm '/>
 31            <meta name='reference' content='NIMA Chart No. 62098 Banda at Tdwahi, 4th Ed. 30 Sep 1995'/>

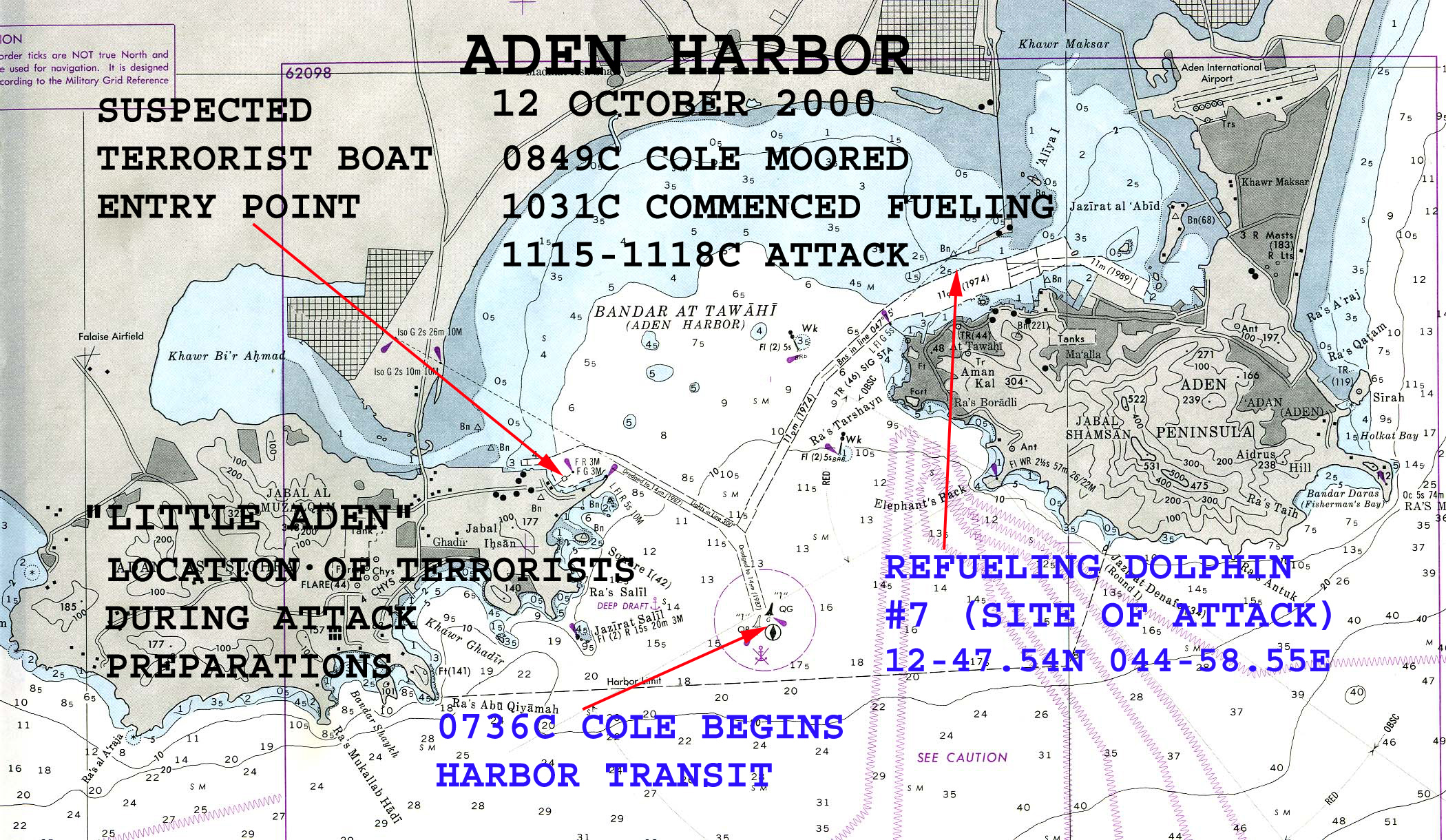

 32            <meta name='reference' content='NIMA62098.jpg'/>
 33            <meta name='reference' content='https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/NIMA62098.jpg'/>
 34            <meta name='reference' content=' https://www.fas.org/irp/doddir/dod/app-j_THREATCON.htm '/>
 35            <meta name='reference' content=' https://www.fas.org/irp/program/core/dted.htm '/>
 36            <meta name='subject' content='USS COLE, Al-Qaida sponsored Terrorist Attacks'/>
 37            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/UssColeTerroristAttackDIS.x3d '/>
 38            <meta name='generator' content='X3D-Edit 3.2, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 39            <meta name='license' content='../../license.html'/>
 40       </head>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF nodes index: Boat, Cole, ColeRHIB, ColeRhib1, ColeTimeFilter, ColeTransform, Compass, DDG-51, harborTanker, MasterClock, MERCHANT, MerchantA, MerchantATransform, MerchantB, MerchantBTransform, RedBoat, RefuelingDolphin, ShockTransform, TANKER, TankerTransform, TerroristBoatTransform, TerroristClock, TerroristExplosion, TimeFilter, TNTtransform

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5

Index for ExternProtoDeclare definitions: ArleighBurke, CameraCompass12, RHIB, TerroristBoat, TNTBasedExplosion
-->
 41       <Scene>
 42            <WorldInfo title='UssColeTerroristAttackDIS.x3d'/>
 43            <ExternProtoDeclare name='TNTBasedExplosion'   url=' "PhysicsBasedExplosionPrototype.wrl#TNTBasedExplosion" "PhysicsBasedExplosionPrototype.x3d#TNTBasedExplosion" "https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/PhysicsBasedExplosionPrototype.wrl#TNTBasedExplosion" "https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/PhysicsBasedExplosionPrototype.x3d#TNTBasedExplosion" '>
 44                 <field name='startExplosion' type='SFTime' accessType='inputOnly'/>
 45            </ExternProtoDeclare>
 46            <ExternProtoDeclare name='TerroristBoat'   url=' "TerroristBoatPrototype.wrl#TerroristBoat" "TerroristBoatPrototype.x3d#TerroristBoat" "https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/TerroristBoatPrototype.wrl#TerroristBoat" "https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/TerroristBoatPrototype.x3d#TerroristBoat" '>
 47                 <field name='startExplosion' type='SFTime' accessType='inputOnly'/>
 48            </ExternProtoDeclare>
 49            <ExternProtoDeclare name='ArleighBurke'   url=' "../../ShipsMilitary/DDGArleighBurkeUnitedStates/ArleighBurkePrototype.wrl#ArleighBurke" "https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/Ships/DDGArleighBurkeUnitedStates/ArleighBurkePrototype.wrl#ArleighBurke" "../../ShipsMilitary/DDGArleighBurkeUnitedStates//ArleighBurkePrototype.x3d#ArleighBurke" "https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/DDGArleighBurkeUnitedStates//ArleighBurkePrototype.x3d#ArleighBurke" '>
 50                 <field name='startExplosion' type='SFTime' accessType='inputOnly'/>
 51            </ExternProtoDeclare>
 52            <ExternProtoDeclare name='CameraCompass12'   url=' "../../../Savage/Tools/HeadsUpDisplays/CameraCompassPrototypes.wrl#CameraCompass12" "https://www.web3d.org/x3d/content/examples/Savage/Tools/HeadsUpDisplays/CameraCompassPrototypes.wrl#CameraCompass12" "../../../Savage/Tools/HeadsUpDisplays/CameraCompassPrototypes.x3d#CameraCompass12" "https://www.web3d.org/x3d/content/examples/Savage/Tools/HeadsUpDisplays/CameraCompassPrototypes.x3d#CameraCompass12" '>
 53                 <field name='enabled' type='SFBool' accessType='inputOutput'/>
 54                 <field name='positionOffsetFromCamera' type='SFVec3f' accessType='inputOutput'/>
 55                 <field name='markerColor' type='SFColor' accessType='inputOutput'/>
 56                 <field name='labelColor' type='SFColor' accessType='inputOutput'/>
 57            </ExternProtoDeclare>
 58            <ExternProtoDeclare name='RHIB'   url=' "RHIBPrototype.wrl#RHIB" "RHIBPrototype.x3d#RHIB" "https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/RHIBPrototype.wrl#RHIB" "https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/RHIBBoatPrototype.x3d#RHIB" '>
 59                 <field name='startExplosion' type='SFTime' accessType='inputOnly'/>
 60            </ExternProtoDeclare>
 61            <Group>
 62                 <NavigationInfo speed='100' type='"EXAMINE" "FLY" "ANY"' visibilityLimit='50000'/>
 63                 <Background groundAngle='1.309 1.570796' groundColor='0.1 0.1 0 0.4 0.25 0.2 0.6 0.6 0.6' skyAngle='1.309 1.571' skyColor='0 0.2 0.7 0 0.5 1 1 1 1'/>
 64                 <TimeSensor DEF='MasterClock' loop='true'/>
 65                 <TimeSensor DEF='TerroristClock' loop='true'/>
 66                 <!-- *****************************Main Scene Viewpoints****************** -->
 67                 <Transform>
 68                      <Viewpoint description='Aden Chart' position='0 .1 4'/>
 69                      <Viewpoint description='Aden Chart Close Up' position='0 .5 2'/>
 70                      <Viewpoint description='Harbor View' orientation='1 0 0 -.95' position='17000 20000 40000'/>
 71                      <Viewpoint description='Overhead RefuelingDolphin Seven' orientation='1 0 0 -1.57' position='27838.31 700 14166.67'/>
 72                      <Viewpoint description='Final View of Terrorist Attack' position='27793.31 10 14330'/>
 73                      <!-- ***************************Scene Compass********************** -->
 74                 </Transform>
 75                 <Transform DEF='Compass' rotation='0 1 0 1.57'>
 76                      <ProtoInstance name='CameraCompass12'>
 77                           <fieldValue name='enabled' value='true'/>
 78                           <fieldValue name='positionOffsetFromCamera' value='0 5 0'/>
 79                           <fieldValue name='markerColor' value='0.3 0.3 0.8'/>
 80                           <fieldValue name='labelColor' value='1 1 1'/>
 81                      </ProtoInstance>
 82                 </Transform>
 83                 <!-- *************Geography and Entry Point Code*** -->
 84                 <LOD center='27793.31 0 14159'>
 85                      <Transform>
 86                           <Inline   url=' "AdenHarbor.wrl" "https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/AdenHarbor.wrl" "AdenHarbor.x3d" "https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/AdenHarbor.x3d" '/>
 87                           <Inline   url=' "AdenHarborChart.wrl" "https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/AdenHarborChart.wrl" "AdenHarborChart.x3d" "https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/AdenHarborChart.x3d" '/>
 88                      </Transform>
 89                 </LOD>
 90                 <!-- *************Refueling Pier Code************* -->
 91                 <Transform DEF='RefuelingDolphin' translation='27793.31 -10 14159'>
 92                      <Inline   url=' "RefuelingPierSeven.wrl" "https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/RefuelingPierSeven.wrl" "RefuelingPierSeven.x3d" "https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/RefuelingPierSeven.x3d" '/>
 93                 </Transform>
 94                 <!-- *************COLE Code************* -->
 95
               <!-- ROUTE information for Cole node:  [from isCollided to ColeTimeFilter.setStart ] -->
                <EspduTransform DEF='Cole' address='224.2.181.145' marking='DDG67' port='62040' rotation='0 1 0 1.73' siteID='67' translation='27838.31 0 14167' containerField='children'>
 96                      <!-- traceColor="0 0 1" traceOffset="0 3 0" traceFontSize="6" -->
 97                      <Transform DEF='ColeTransform' rotation='0 1 0 1.57'>
 98                           <Transform DEF='ShockTransform'>
 99
                              <!-- ROUTE information for DDG-51 node:  [from ColeTimeFilter.startEventTime to startExplosion ] -->
                               <ProtoInstance name='ArleighBurke' DEF='DDG-51'/>
100                           </Transform>
101                      </Transform>
102                 </EspduTransform>
103
               <!-- ROUTE information for ColeTimeFilter node:  [from Cole.isCollided to setStart ] [from startEventTime to DDG-51.startExplosion ] -->
                <Script DEF='ColeTimeFilter'>
104                      <field name='setStart' type='SFBool' accessType='inputOnly'/>
105                      <field name='startEventTime' type='SFTime' accessType='outputOnly'/>
  <![CDATA[

ecmascript:


function setStart ( value, timeStamp) {

	startEventTime = timeStamp;

}
]]>
107                 </Script>
108                 < ROUTE  fromNode='Cole' fromField='isCollided' toNode='ColeTimeFilter' toField='setStart'/>
109                 < ROUTE  fromNode='ColeTimeFilter' fromField='startEventTime' toNode='DDG-51' toField='startExplosion'/>
110                 <!-- *************Terrorist Boat and Explosion Code*** -->
111
               <!-- ROUTE information for RedBoat node:  [from isCollided to TimeFilter.setStart ] -->
                <EspduTransform DEF='RedBoat' address='224.2.181.145' marking='Terror' port='62040' siteID='65' translation='27000 -9.5 14000' containerField='children'>
112                      <!-- traceColor="1 0 0" traceOffset="0 3 0" traceSize="5 5 5" -->
113                      <Transform DEF='TerroristBoatTransform' rotation='0 1 0 1.57'>
114
                         <!-- ROUTE information for Boat node:  [from TimeFilter.startEventTime to startExplosion ] -->
                          <ProtoInstance name='TerroristBoat' DEF='Boat'/>
115                           <!-- ********************Explosion Code***************** -->
116                           <Transform DEF='TNTtransform' translation='9 0 0'>
117
                              <!-- ROUTE information for TerroristExplosion node:  [from TimeFilter.startEventTime to startExplosion ] -->
                               <ProtoInstance name='TNTBasedExplosion' DEF='TerroristExplosion'/>
118                           </Transform>
119                      </Transform>
120                 </EspduTransform>
121
               <!-- ROUTE information for TimeFilter node:  [from RedBoat.isCollided to setStart ] [from startEventTime to TerroristExplosion.startExplosion ] [from startEventTime to Boat.startExplosion ] -->
                <Script DEF='TimeFilter'>
122                      <field name='setStart' type='SFBool' accessType='inputOnly'/>
123                      <field name='startEventTime' type='SFTime' accessType='outputOnly'/>
  <![CDATA[

ecmascript:


function setStart ( value, timeStamp) {

	startEventTime = timeStamp;

}
]]>
125                 </Script>
126                 < ROUTE  fromNode='RedBoat' fromField='isCollided' toNode='TimeFilter' toField='setStart'/>
127                 < ROUTE  fromNode='TimeFilter' fromField='startEventTime' toNode='TerroristExplosion' toField='startExplosion'/>
128                 < ROUTE  fromNode='TimeFilter' fromField='startEventTime' toNode='Boat' toField='startExplosion'/>
129                 <!-- *******************Cole RHIB code************ -->
130                 <EspduTransform DEF='ColeRHIB' address='224.2.181.145' marking='ColeRHIB' port='62040' siteID='66' translation='27790 -9 14400' containerField='children'>
131                      <!-- traceColor="1 0 0" traceOffset="0 3 0" traceSize="5 5 5" -->
132                      <Transform rotation='0 1 0 1.57'>
133                           <ProtoInstance name='RHIB' DEF='ColeRhib1'/>
134                      </Transform>
135                 </EspduTransform>
136                 <!-- *******Background entities*********** -->
137                 <EspduTransform DEF='harborTanker' address='224.2.181.145' marking='Tanker' port='62040' readInterval='0' rotation='0 1 0 3.24' siteID='68' translation='28550 0 14700' containerField='children'>
138                      <!-- traceColor="1 1 1" traceOffset="0 5 0" traceSize="6 6 6" -->
139                      <Transform DEF='TankerTransform'>
140                           <Inline DEF='TANKER'   url=' "../../ShipsMilitary/Supertanker/SupertankerExampleDay.wrl" "https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/Supertanker/SupertankerExampleDay.wrl" "../../ShipsMilitary/Supertanker/SupertankerExampleDay.x3d" "https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/Supertanker/SupertankerExampleDay.x3d" '/>
141                      </Transform>
142                 </EspduTransform>
143                 <EspduTransform DEF='MerchantA' address='224.2.181.145' marking='MerchantA' port='62040' readInterval='0' siteID='69' translation='27200 -6.5 15100' containerField='children'>
144                      <!-- traceColor="1 1 1" traceOffset="0 4 0" traceSize="5 5 5" -->
145                      <Transform DEF='MerchantATransform'>
146
                         <!-- Inline MERCHANT is a DEF node that has 1 USE node: USE_1 -->
                          <Inline DEF='MERCHANT'   url=' "../../ShipsMilitary/MerchantLivestockCarrier/MerchantLivestockCarrier.wrl" "https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/MerchantLivestockCarrier/MerchantLivestockCarrier.wrl" "../../ShipsMilitary/MerchantLivestockCarrier/MerchantLivestockCarrier.x3d" "https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/MerchantLivestockCarrier/MerchantLivestockCarrier.x3d" '/>
147                      </Transform>
148                 </EspduTransform>
149                 <EspduTransform DEF='MerchantB' address='224.2.181.145' marking='MerchantB' port='62040' readInterval='0' rotation='0 1 0 -.1' siteID='70' translation='27850 -6.5 14900' containerField='children'>
150                      <!-- traceColor="1 1 1" traceOffset="0 4 0" traceSize="5 5 5" -->
151                      <Transform DEF='MerchantBTransform'>
152                           <Inline USE='MERCHANT'/>
153                      </Transform>
154                 </EspduTransform>
155            </Group>
156       </Scene>
157  </X3D>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF nodes index: Boat, Cole, ColeRHIB, ColeRhib1, ColeTimeFilter, ColeTransform, Compass, DDG-51, harborTanker, MasterClock, MERCHANT, MerchantA, MerchantATransform, MerchantB, MerchantBTransform, RedBoat, RefuelingDolphin, ShockTransform, TANKER, TankerTransform, TerroristBoatTransform, TerroristClock, TerroristExplosion, TimeFilter, TNTtransform

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5

Index for ExternProtoDeclare definitions: ArleighBurke, CameraCompass12, RHIB, TerroristBoat, TNTBasedExplosion
-->
X3D Tooltips element index: Background, component, EspduTransform, ExternProtoDeclare, field, fieldValue, Group, head, Inline, LOD, meta, NavigationInfo, ProtoInstance, ROUTE, Scene, Script, TimeSensor, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table entries with 5 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

MasterClock
TimeSensor
No direct ROUTE connection found for events to/from this node.

TerroristClock
TimeSensor
No direct ROUTE connection found for events to/from this node.

line 76
ProtoInstance
CameraCompass12 		No direct ROUTE connection found for events to/from this node.
This ProtoInstance contains SFNode/MFNode fieldValue declarations with
direct access to other nodes, and thus has potential to produce run-time animation.

      Boat
ProtoInstance
TerroristBoat 		No direct ROUTE connection found for events to/from this node.
This ProtoInstance contains SFNode/MFNode fieldValue declarations with
direct access to other nodes, and thus has potential to produce run-time animation.

ColeRhib1
ProtoInstance
RHIB 		No direct ROUTE connection found for events to/from this node.
This ProtoInstance contains SFNode/MFNode fieldValue declarations with
direct access to other nodes, and thus has potential to produce run-time animation.

      DDG-51
ProtoInstance
ArleighBurke 		No direct ROUTE connection found for events to/from this node.
This ProtoInstance contains SFNode/MFNode fieldValue declarations with
direct access to other nodes, and thus has potential to produce run-time animation.

      TerroristExplosion
ProtoInstance
TNTBasedExplosion 		No direct ROUTE connection found for events to/from this node.
This ProtoInstance contains SFNode/MFNode fieldValue declarations with
direct access to other nodes, and thus has potential to produce run-time animation.

Cole
EspduTransform
isCollided
SFBool
→
ROUTE
event to
(1)
ColeTimeFilter
Script
setStart
SFBool 		then


  		ColeTimeFilter
Script
startEventTime
SFTime
→
ROUTE
event to
(2)
DDG-51
ProtoInstance
startExplosion
SFTime

RedBoat
EspduTransform
isCollided
SFBool
→
ROUTE
event to
(1)
TimeFilter
Script
setStart
SFBool 		then


  		TimeFilter
Script
startEventTime
SFTime
→
ROUTE
event to
(2)
TerroristExplosion
ProtoInstance
startExplosion
SFTime
  then


  		TimeFilter
Script
startEventTime
SFTime
→
ROUTE
event to
(2)
Boat
ProtoInstance
startExplosion
SFTime

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀
-->
<!-- Online at
https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/UssColeTerroristAttackDISIndex.html -->
<!-- Version control at
https://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/UssColeTerroristAttackDIS.x3d -->

<!-- Color-coding legend: X3D terminology <X3dNode  DEF='idName' field='value'/> matches XML terminology <XmlElement  DEF='idName' attribute='value'/>
(Light-blue background: event-based behavior node or statement) (Grey background inside box: inserted documentation) (Magenta background: X3D Extensibility)
    <ProtoInstance name='ProtoName'> <field name='fieldName'/> </ProtoInstance> -->

to top <!-- For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources, and X3D Scene Authoring Hints. -->
