X3D Model Documentation: MultiLauncherRocketSystemMLRS270.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Interactive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content=' MultiLauncherRocketSystemMLRS270.x3d '/>
  6            <meta name='description' content='Multi Launcher Rocket System (MLRS 270)'/>
  7            <meta name='created' content='25 January 2004'/>
  8            <meta name='created' content='29 April 2021'/>
  9            <meta name='creator' content='Suat Kursat GUN'/>

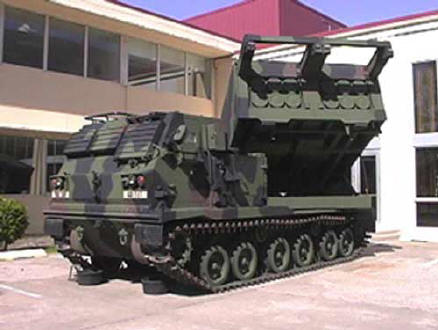

 10            <meta name='photo' content='MLRS.jpg'/>

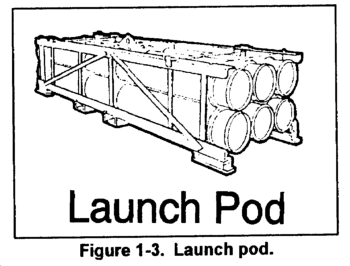

 11            <meta name='Image' content='MlrsLaunchPod.gif'/>

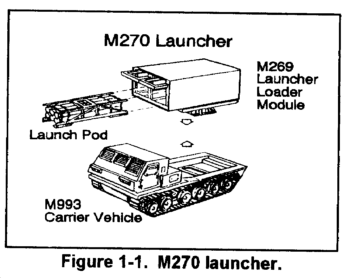

 12            <meta name='Image' content='MlrsComponents.gif'/>
 13            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/GroundVehicles/MLRS270/MultiLauncherRocketSystemMLRS270.x3d '/>
 14            <meta name='reference' content=' https://www.fas.org/man/dod-101/sys/land/docs/aaav_WelcomeIntro-1_1/sld002.htm '/>
 15            <meta name='reference' content=' https://www.fas.org/man/dod-101/sys/land/m270.htm '/>
 16            <meta name='generator' content='X3D-Edit 4.0, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 17            <meta name='license' content='../../license.html'/>
 18       </head>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF nodes index: backView, buttomView, carrierVehicle, farView, frontView, launcher, launcherCylSens, leftSideView, loadedModule, mainApp, mainView, MLRS_270, pistonTrans, podBase, rightSideView, rollingCyl, topView

Index for Viewpoint nodes: backView, buttomView, farView, frontView, leftSideView, mainView, rightSideView, topView
-->
 19       <Scene>
 20            <WorldInfo title='MultiLauncherRocketSystemMLRS270.x3d'/>
 21            <Background groundAngle='1.309 1.570796' groundColor='.1 .1 0 .4 .25 .2 .6 .6 .6' skyAngle='1.309 1.571' skyColor='0 .2 .7 0 .5 1 1 1 1'/>

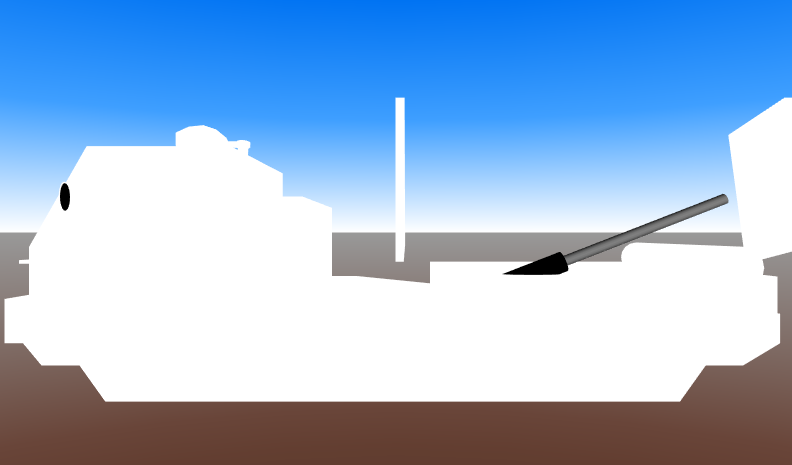

 22            <Viewpoint DEF='mainView' description='mainView' position='0.8 1.3 9.6'/>
 23            <Viewpoint DEF='frontView' description='frontView' orientation='0 -1 0 1.582' position='-10 1.1 -0.1'/>

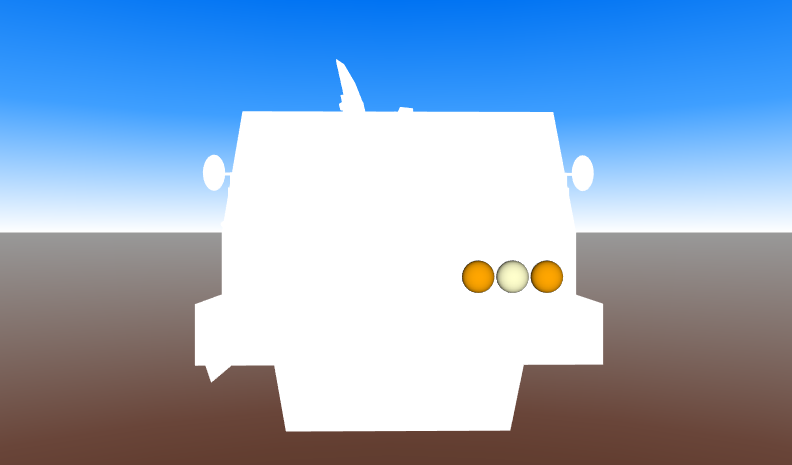

 24            <Viewpoint DEF='leftSideView' description='leftSideView' position='-3.1 0 19.6'/>

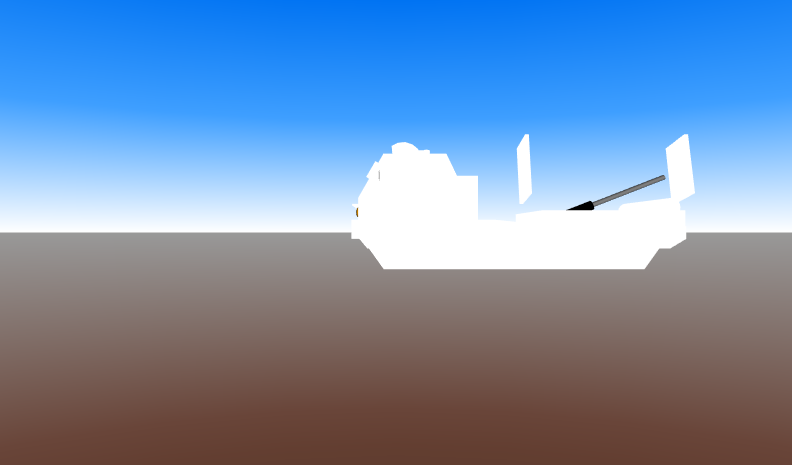

 25            <Viewpoint DEF='rightSideView' description='rightSideView' orientation='0 1 0 3.0612' position='-3.5 0.5 -20'/>
 26            <Viewpoint DEF='backView' description='backView' orientation='0 1 0 1.5073' position='15 0.7 0.5'/>

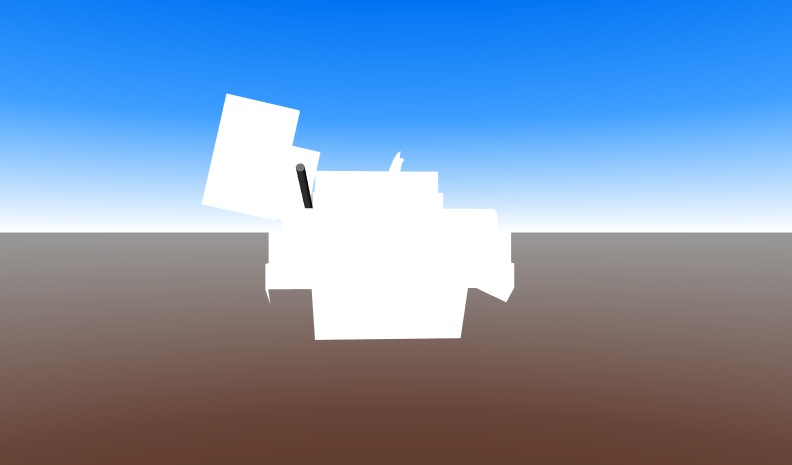

 27            <Viewpoint DEF='topView' description='topView' orientation='-1 0 0 1.5095' position='0.6 11 0.7'/>

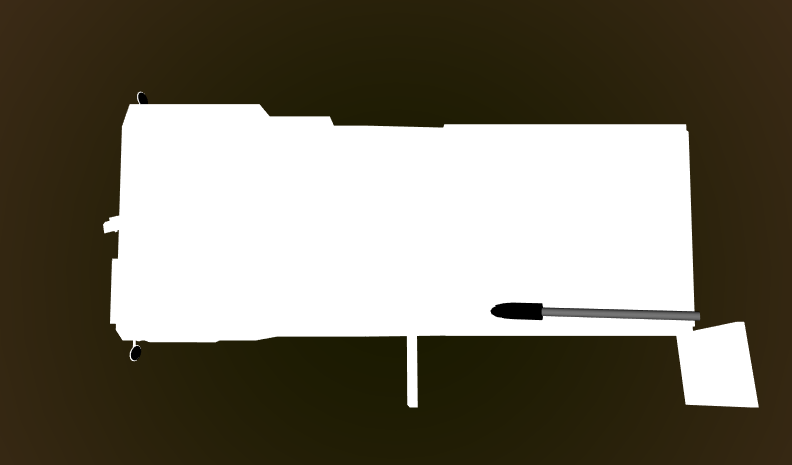

 28            <Viewpoint DEF='buttomView' description='buttomView' orientation='1 0 0 1.565' position='0.8 -8.3 0.1'/>

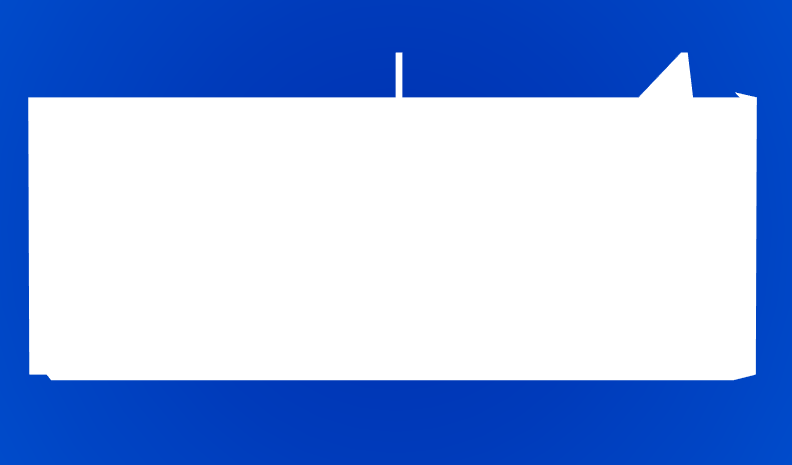

 29            <Viewpoint DEF='farView' description='farView' position='-56.5 1.3 83.6'/>
 30            <Transform DEF='MLRS_270'>
 31                 <Transform DEF='carrierVehicle'>
 32                      <Inline   url=' "M993CarrierVehicle.x3d" "https://www.web3d.org/x3d/content/examples/Savage/GroundVehicles/MLRS270/M993CarrierVehicle.x3d" "M993CarrierVehicle.wrl" "https://www.web3d.org/x3d/content/examples/Savage/GroundVehicles/MLRS270/M993CarrierVehicle.wrl" '/>
 33                 </Transform>
 34
               <!-- ROUTE information for launcher node:  [from launcherCylSens.rotation_changed to set_rotation ] -->
                <Transform DEF='launcher' center='1 0 0' translation='3.25 0.2 0.275'>
 35                      <Transform translation='2.5 0.8 1.5'>
 36
                         <!-- Transform loadedModule is a DEF node that has 1 USE node: USE_1 -->
                          <Transform DEF='loadedModule'>
 37                                <Inline   url=' "LoadedModule.x3d" "https://www.web3d.org/x3d/content/examples/Savage/GroundVehicles/MLRS270/LoadedModule.x3d" "LoadedModule.wrl" "https://www.web3d.org/x3d/content/examples/Savage/GroundVehicles/MLRS270/LoadedModule.wrl" '/>
 38                           </Transform>
 39                           <Transform translation='0 0 -1.9'>
 40                                <Transform USE='loadedModule'/>
 41                           </Transform>
 42                      </Transform>
 43                      <Transform DEF='podBase' translation='0.5 0.25 -0.275'>
 44                           <Shape>
 45
                              <!-- Appearance mainApp is a DEF node that has 1 USE node: USE_1 -->
                               <Appearance DEF='mainApp'>
 46                                     <ImageTexture   url=' "cammie1.jpg " "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAAV/cammie1.jpg " '/>
 47                                </Appearance>
 48                                <Box size='4.5 0.5 3.9'/>
 49                           </Shape>
 50                           <Transform rotation='1 0 0 1.57' translation='1.9 0.35 0'>
 51                                <Shape DEF='rollingCyl'>
 52                                     <Appearance USE='mainApp'/>
 53                                     <Cylinder height='3.5' radius='0.3'/>
 54                                </Shape>
 55                           </Transform>
 56
                         <!-- Transform pistonTrans is a DEF node that has 1 USE node: USE_1 -->
                          <Transform DEF='pistonTrans' rotation='0 0 1 -1.2' translation='-1.0 0.25 1.5'>
 57                                <Shape>
 58                                     <Appearance>
 59                                          <Material diffuseColor='0 0 0'/>
 60                                     </Appearance>
 61                                     <Cylinder height='1' radius='0.15'/>
 62                                </Shape>
 63                                <Transform translation='0 1.5 0'>
 64                                     <Shape>
 65                                          <Appearance>
 66                                               <Material diffuseColor='0.5 0.5 0.5'/>
 67                                          </Appearance>
 68                                          <Cylinder height='3' radius='0.075'/>
 69                                     </Shape>
 70                                </Transform>
 71                           </Transform>
 72                           <Transform translation='0 0 -3'>
 73                                <Transform USE='pistonTrans'/>
 74                           </Transform>
 75                      </Transform>
 76
                    <!-- ROUTE information for launcherCylSens node:  [from rotation_changed to launcher.set_rotation ] -->
                     <CylinderSensor DEF='launcherCylSens' autoOffset='false' description='Launcher Cylinder Sensor' maxAngle='2.0' minAngle='-2.0'/>
 77                      < ROUTE  fromNode='launcherCylSens' fromField='rotation_changed' toNode='launcher' toField='set_rotation'/>
 78                 </Transform>
 79            </Transform>
 80       </Scene>
 81  </X3D>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF nodes index: backView, buttomView, carrierVehicle, farView, frontView, launcher, launcherCylSens, leftSideView, loadedModule, mainApp, mainView, MLRS_270, pistonTrans, podBase, rightSideView, rollingCyl, topView

Index for Viewpoint nodes: backView, buttomView, farView, frontView, leftSideView, mainView, rightSideView, topView
-->
X3D Tooltips element index: Appearance, Background, Box, Cylinder, CylinderSensor, head, ImageTexture, Inline, Material, meta, ROUTE, Scene, Shape, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table with 1 ROUTE connection total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

launcherCylSens
CylinderSensor
rotation_changed
SFRotation
→
ROUTE
event to
(1)
launcher
Transform
set_rotation
SFRotation

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀
-->
