Class RotationTests

java.lang.Object
HumanoidAnimation.MotionAnimation.RotationTests
public class RotationTests extends Object

BVH file conversion support: test and visualize various rotations in order to properly configure converter from Euler angles to SFRotation values.

Related links: source RotationTests.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags HumanoidAnimation.MotionAnimation.RotationTests  Document Metadata
title RotationTests.x3d
description BVH file conversion support: test and visualize various rotations in order to properly configure converter from Euler angles to SFRotation values.
creator Don Brutzman
created 17 December 2016
modified 30 August 2025

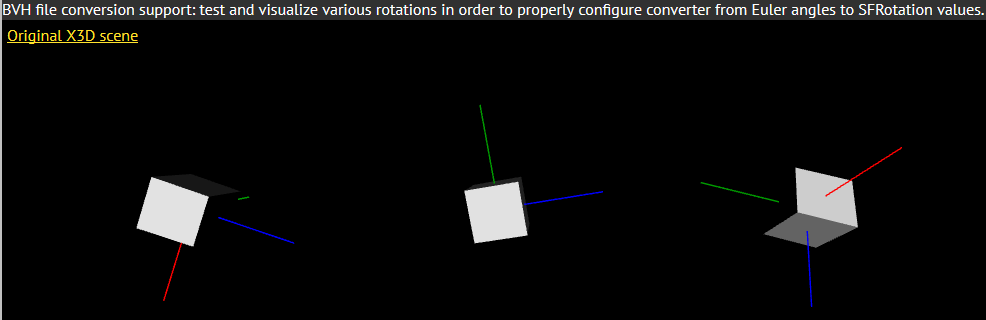

Image RotationTests.png
reference BvhConversion1.x3d
warning under development: euler-angle conversions still problematic, single-step animation reveals that animations are not smooth.
reference ../Animation/RotationCalculatorExample.x3d
drawing https://www.web3d.org/x3d/tools/X3D-Edit/images/RotationCalculator.png
generator Java BVH to X3D Converter, org.web3d.x3d.hanim.bvh package
generator X3D-Edit 3.3, https://www.web3d.org/x3d/tools/X3D-Edit
identifier https://www.web3d.org/x3d/content/examples/HumanoidAnimation/MotionAnimation/RotationTests.x3d
license license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

  • Constructor Summary

    Constructors
    Constructor
    Description
    RotationTests()
    Default constructor to create this object.

  • Method Summary

    Modifier and Type
    Method
    Description
    org.web3d.x3d.jsail.Core.X3D
    getX3dModel()
    Provide a shallow copy of the X3D model.
    final void
    initialize()
    Create and initialize the X3D model for this object.
    static void
    main(String[] args)
    Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

    Methods inherited from class java.lang.Object

    clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

  • Constructor Details

    • RotationTests

      public RotationTests()
      Default constructor to create this object.

  • Method Details

    • initialize

      public final void initialize()
      Create and initialize the X3D model for this object.

    • getX3dModel

      public org.web3d.x3d.jsail.Core.X3D getX3dModel()
      Provide a shallow copy of the X3D model.
      Returns:
      RotationTests model
      See Also:

    • main

      public static void main(String[] args)
      Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.
      Parameters:
      args - array of input parameters, provided as arguments
      See Also:
