<head>
<!--
<!--
Event Graph ROUTE Table
shows event connections
-->
<!-- Index for DEF nodes: GOFLASH, GOMATERIAL, GOTIMER, HORNCOLOR, MYSOUND, MYSWITCH, PHONOCOLOR, PROX_SENSOR, SOUND_SCRIPT, START, START_TRANS, STOP, STOP_TRANS, STOPFLASH, STOPMATERIAL, STOPTIMER, TOUCHSTART, TOUCHSTOP
Index for Viewpoint node: Viewpoint_1
-->
<Scene>
</X3D>
<meta name='title' content='
switchsounds.x3d
'/>
<meta name='MovingImage' content='switch-movie.mpg'/>
<meta name='reference' content=' http://www.nist.gov/vrml.html '/>
<meta name='reference' content=' http://www.itl.nist.gov/div897/ctg/vrml/vrml.html '/>
<meta name='creator' content=' http://www.itl.nist.gov/div897/ctg/vrml/members.html '/>
<meta name='disclaimer' content=' This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='reference' content=' Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml '/>
<meta name='info' content='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
<meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translated' content='21 January 2001'/>
<meta name='modified' content='2 September 2023'/>
<meta name='description' content='Test Switching of sounds. A "chime" sounding Sound node is initially a "switched out" child of a Switch node in this world. If the viewer clicks on the "Switch in" button in this world, the Sound child is switched in as a child of the Switch node, and should begin to play. If the viewer clicks on the "Switch out" button while the Sound is playing, the sound should cease. However, the Sound node should continue to send and receive events, and as a result, the "phonograph" geometry continue to remain a yellow color, indicating that the Sound node isActive field is still true, even though the Sound is no longer audible.'/>
<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/Sound/switchsounds.x3d '/>
<meta name='generator' content=' Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html '/>
<meta name='generator' content='X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../../license.html'/>
</head>
<meta name='MovingImage' content='switch-movie.mpg'/>
<meta name='reference' content=' http://www.nist.gov/vrml.html '/>
<meta name='reference' content=' http://www.itl.nist.gov/div897/ctg/vrml/vrml.html '/>
<meta name='creator' content=' http://www.itl.nist.gov/div897/ctg/vrml/members.html '/>
<meta name='disclaimer' content=' This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='reference' content=' Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml '/>
<meta name='info' content='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
<meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translated' content='21 January 2001'/>
<meta name='modified' content='2 September 2023'/>
<meta name='description' content='Test Switching of sounds. A "chime" sounding Sound node is initially a "switched out" child of a Switch node in this world. If the viewer clicks on the "Switch in" button in this world, the Sound child is switched in as a child of the Switch node, and should begin to play. If the viewer clicks on the "Switch out" button while the Sound is playing, the sound should cease. However, the Sound node should continue to send and receive events, and as a result, the "phonograph" geometry continue to remain a yellow color, indicating that the Sound node isActive field is still true, even though the Sound is no longer audible.'/>
<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/Sound/switchsounds.x3d '/>
<meta name='generator' content=' Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html '/>
<meta name='generator' content='X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../../license.html'/>
<!--
<!--
Event Graph ROUTE Table
shows event connections
-->
<!-- Index for DEF nodes: GOFLASH, GOMATERIAL, GOTIMER, HORNCOLOR, MYSOUND, MYSWITCH, PHONOCOLOR, PROX_SENSOR, SOUND_SCRIPT, START, START_TRANS, STOP, STOP_TRANS, STOPFLASH, STOPMATERIAL, STOPTIMER, TOUCHSTART, TOUCHSTOP
Index for Viewpoint node: Viewpoint_1
<Scene>
<WorldInfo title='switchsounds.x3d'/>

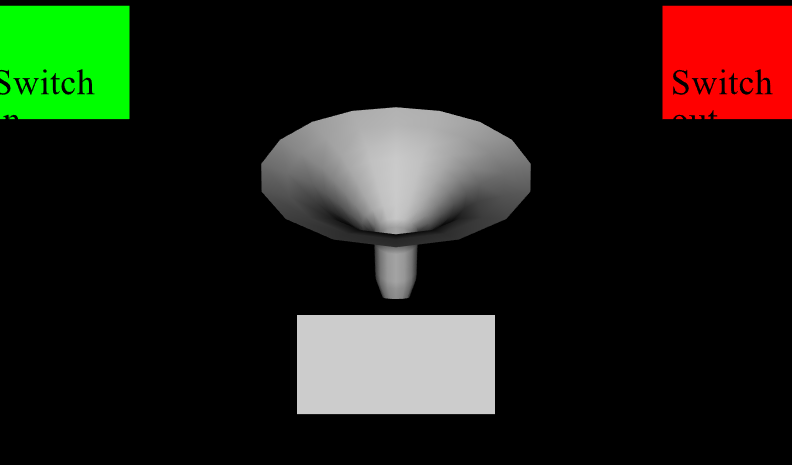

<Viewpoint description='entry view' position='0 0 5'/>
<Switch DEF='MYSWITCH' whichChoice='-1'>
<Transform scale='0.5 0.5 0.5'>
< ROUTE fromNode=' TOUCHSTART' fromField='touchTime' toNode=' SOUND_SCRIPT' toField='switchIn'/>
< ROUTE fromNode=' TOUCHSTOP' fromField='touchTime' toNode=' SOUND_SCRIPT' toField='switchOut'/>
< ROUTE fromNode=' PROX_SENSOR' fromField='position_changed' toNode=' START_TRANS' toField='set_translation'/>
< ROUTE fromNode=' PROX_SENSOR' fromField='orientation_changed' toNode=' START_TRANS' toField='set_rotation'/>
< ROUTE fromNode=' PROX_SENSOR' fromField='position_changed' toNode=' STOP_TRANS' toField='set_translation'/>
< ROUTE fromNode=' PROX_SENSOR' fromField='orientation_changed' toNode=' STOP_TRANS' toField='set_rotation'/>
< ROUTE fromNode=' MYSOUND' fromField='isActive' toNode=' SOUND_SCRIPT' toField='colorPhonograph'/>
< ROUTE fromNode=' TOUCHSTART' fromField='touchTime' toNode=' GOTIMER' toField='set_startTime'/>
< ROUTE fromNode=' GOTIMER' fromField='fraction_changed' toNode=' GOFLASH' toField='set_fraction'/>
< ROUTE fromNode=' GOFLASH' fromField='value_changed' toNode=' GOMATERIAL' toField='set_diffuseColor'/>
< ROUTE fromNode=' TOUCHSTOP' fromField='touchTime' toNode=' STOPTIMER' toField='set_startTime'/>
< ROUTE fromNode=' STOPTIMER' fromField='fraction_changed' toNode=' STOPFLASH' toField='set_fraction'/>
< ROUTE fromNode=' STOPFLASH' fromField='value_changed' toNode=' STOPMATERIAL' toField='set_diffuseColor'/>
</Scene>
<Viewpoint description='entry view' position='0 0 5'/>
<!-- ROUTE information for PROX_SENSOR node:
[from position_changed to START_TRANS.set_translation
]
[from orientation_changed to START_TRANS.set_rotation
]
[from position_changed to STOP_TRANS.set_translation
]
[from orientation_changed to STOP_TRANS.set_rotation
]
-->
<ProximitySensor DEF='PROX_SENSOR' size='1000 1000 1000'/>
<ProximitySensor DEF='PROX_SENSOR' size='1000 1000 1000'/>
<Switch DEF='MYSWITCH' whichChoice='-1'>
<Sound>
</Sound>
</Switch>
<!-- ROUTE information for MYSOUND node:
[from isActive to SOUND_SCRIPT.colorPhonograph
]
-->
<AudioClip DEF='MYSOUND' description='chimes' loop='true'
url=' "chimes.wav" "https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/AudioClip/chimes.wav" ' />
<AudioClip DEF='MYSOUND' description='chimes' loop='true'
url=' "chimes.wav" "https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/AudioClip/chimes.wav" ' />
<Transform scale='0.5 0.5 0.5'>
<Transform translation='0 -2 0'>
</Transform>
<Transform rotation='1 0 0 -2.5'>
</Transform>
<Transform rotation='1 0 0 -2.5'>
<Shape>
</Transform>
<Appearance>
<Extrusion beginCap='false' creaseAngle='1.57' crossSection='1 0 0.92388 0.382683 0.707107 0.707106 0.382684 0.923879 1.26759e-006 1 -0.382682 0.92388 -0.707105 0.707108 -0.923879 0.382685 -1 2.53518e-006 -0.923881 -0.382681 -0.707109 -0.707105 -0.382687 -0.923878 -3.80277e-006 -1 0.38268 -0.923881 0.707104 -0.70711 0.923878 -0.382688 1 0' endCap='false' orientation='0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0' scale='2.2 2.2 1.8 1.8 1.4 1.4 1.2 1.2 1 1 0.8 0.8 0.6 0.6 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.2 0.2 0.0001 0.0001' solid='false' spine='0 -1.4 0 0 -1.22137 0 0 -1.01245 0 0 -0.819601 0 0 -0.626754 0 0 -0.401765 0 0 -0.204459 0 0 -0.0164327 0 0 0.176777 0 0 0.380511 0 0 0.578542 0 0 0.819601 0 0 0.996378 0 0 1.8 0 0 1.2 0'/>
</Shape>
<Material DEF='HORNCOLOR'/>
</Appearance>
<Extrusion beginCap='false' creaseAngle='1.57' crossSection='1 0 0.92388 0.382683 0.707107 0.707106 0.382684 0.923879 1.26759e-006 1 -0.382682 0.92388 -0.707105 0.707108 -0.923879 0.382685 -1 2.53518e-006 -0.923881 -0.382681 -0.707109 -0.707105 -0.382687 -0.923878 -3.80277e-006 -1 0.38268 -0.923881 0.707104 -0.70711 0.923878 -0.382688 1 0' endCap='false' orientation='0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0' scale='2.2 2.2 1.8 1.8 1.4 1.4 1.2 1.2 1 1 0.8 0.8 0.6 0.6 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.2 0.2 0.0001 0.0001' solid='false' spine='0 -1.4 0 0 -1.22137 0 0 -1.01245 0 0 -0.819601 0 0 -0.626754 0 0 -0.401765 0 0 -0.204459 0 0 -0.0164327 0 0 0.176777 0 0 0.380511 0 0 0.578542 0 0 0.819601 0 0 0.996378 0 0 1.8 0 0 1.2 0'/>
<!-- ROUTE information for START_TRANS node:
[from PROX_SENSOR.position_changed to set_translation
]
[from PROX_SENSOR.orientation_changed to set_rotation
]
-->
<Transform DEF='START_TRANS'>
<Transform DEF='START_TRANS'>
<Transform translation='-3 1.5 -5'>
</Transform>
<Shape>
<Transform translation='-0.45 0 0.2'>
</Transform>
<Appearance>
</Appearance>
<Box DEF='START' size='1.3 1 0.1'/>
</Shape>
<!-- ROUTE information for GOMATERIAL node:
[from GOFLASH.value_changed to set_diffuseColor
]
-->
<Material DEF='GOMATERIAL' ambientIntensity='1' diffuseColor='0 1 0'/>
<Material DEF='GOMATERIAL' ambientIntensity='1' diffuseColor='0 1 0'/>
<Box DEF='START' size='1.3 1 0.1'/>
<Transform translation='-0.45 0 0.2'>
<Shape>
</Transform>
<Appearance>
<Text string='"Switch" "in"'>
</Shape>
<Material ambientIntensity='1' diffuseColor='0 0 0'/>
</Appearance>
<Text string='"Switch" "in"'>
<FontStyle size='0.4'/>
</Text>
<!-- ROUTE information for TOUCHSTART node:
[from touchTime to SOUND_SCRIPT.switchIn
]
[from touchTime to GOTIMER.set_startTime
]
-->
<TouchSensor DEF='TOUCHSTART' description='touch to start'/>
<TouchSensor DEF='TOUCHSTART' description='touch to start'/>
<!-- ROUTE information for GOTIMER node:
[from TOUCHSTART.touchTime to set_startTime
]
[from fraction_changed to GOFLASH.set_fraction
]
-->
<TimeSensor DEF='GOTIMER'/>
<TimeSensor DEF='GOTIMER'/>
<!-- ROUTE information for GOFLASH node:
[from GOTIMER.fraction_changed to set_fraction
]
[from value_changed to GOMATERIAL.set_diffuseColor
]
-->
<ColorInterpolator DEF='GOFLASH' key='0 0.5 1' keyValue='0 1 0 1 1 1 0 1 0'/>
<ColorInterpolator DEF='GOFLASH' key='0 0.5 1' keyValue='0 1 0 1 1 1 0 1 0'/>
<!-- ROUTE information for STOP_TRANS node:
[from PROX_SENSOR.position_changed to set_translation
]
[from PROX_SENSOR.orientation_changed to set_rotation
]
-->
<Transform DEF='STOP_TRANS'>
<Transform DEF='STOP_TRANS'>
<Transform translation='3 1.5 -5'>
</Transform>
<Shape>
<Transform translation='-0.65 0 0.2'>
</Transform>
<Appearance>
</Appearance>
<Box DEF='STOP' size='1.3 1 0.1'/>
</Shape>
<!-- ROUTE information for STOPMATERIAL node:
[from STOPFLASH.value_changed to set_diffuseColor
]
-->
<Material DEF='STOPMATERIAL' ambientIntensity='1' diffuseColor='1 0 0'/>
<Material DEF='STOPMATERIAL' ambientIntensity='1' diffuseColor='1 0 0'/>
<Box DEF='STOP' size='1.3 1 0.1'/>
<Transform translation='-0.65 0 0.2'>
<Shape>
</Transform>
<Appearance>
<Text string='"Switch" "out"'>
</Shape>
<Material ambientIntensity='1' diffuseColor='0 0 0'/>
</Appearance>
<Text string='"Switch" "out"'>
<FontStyle size='0.4'/>
</Text>
<!-- ROUTE information for TOUCHSTOP node:
[from touchTime to SOUND_SCRIPT.switchOut
]
[from touchTime to STOPTIMER.set_startTime
]
-->
<TouchSensor DEF='TOUCHSTOP' description='touch to stop'/>
<TouchSensor DEF='TOUCHSTOP' description='touch to stop'/>
<!-- ROUTE information for STOPTIMER node:
[from TOUCHSTOP.touchTime to set_startTime
]
[from fraction_changed to STOPFLASH.set_fraction
]
-->
<TimeSensor DEF='STOPTIMER'/>
<TimeSensor DEF='STOPTIMER'/>
<!-- ROUTE information for STOPFLASH node:
[from STOPTIMER.fraction_changed to set_fraction
]
[from value_changed to STOPMATERIAL.set_diffuseColor
]
-->
<ColorInterpolator DEF='STOPFLASH' key='0 0.5 1' keyValue='1 0 0 1 1 1 1 0 0'/>
<ColorInterpolator DEF='STOPFLASH' key='0 0.5 1' keyValue='1 0 0 1 1 1 1 0 0'/>
<!-- ROUTE information for SOUND_SCRIPT node:
[from TOUCHSTART.touchTime to switchIn
]
[from TOUCHSTOP.touchTime to switchOut
]
[from MYSOUND.isActive to colorPhonograph
]
-->
<Script DEF='SOUND_SCRIPT' directOutput='true'
url=' "switch.js" "https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/Sound/switch.js" ' >
<Script DEF='SOUND_SCRIPT' directOutput='true'
url=' "switch.js" "https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/Sound/switch.js" ' >
<field name='mySwitch' type='SFNode' accessType='initializeOnly'>
<field name='phonoColor' type='SFNode' accessType='initializeOnly'>
<field name='hornColor' type='SFNode' accessType='initializeOnly'>
<field name='yellow' type='SFColor' value='0.75 0.75 0.00' accessType='initializeOnly'/>
<field name='white' type='SFColor' value='0.80 0.80 0.80' accessType='initializeOnly'/>
<field name='colorPhonograph' type='SFBool' accessType='inputOnly'/>
<field name='switchIn' type='SFTime' accessType='inputOnly'/>
<field name='switchOut' type='SFTime' accessType='inputOnly'/>
</Script>
<Switch USE='
MYSWITCH'/>
</field>
<field name='phonoColor' type='SFNode' accessType='initializeOnly'>
<Material USE='
PHONOCOLOR'/>
</field>
<field name='hornColor' type='SFNode' accessType='initializeOnly'>
<Material USE='
HORNCOLOR'/>
</field>
<field name='yellow' type='SFColor' value='0.75 0.75 0.00' accessType='initializeOnly'/>
<field name='white' type='SFColor' value='0.80 0.80 0.80' accessType='initializeOnly'/>
<field name='colorPhonograph' type='SFBool' accessType='inputOnly'/>
<field name='switchIn' type='SFTime' accessType='inputOnly'/>
<field name='switchOut' type='SFTime' accessType='inputOnly'/>
< ROUTE fromNode=' TOUCHSTART' fromField='touchTime' toNode=' SOUND_SCRIPT' toField='switchIn'/>
< ROUTE fromNode=' TOUCHSTOP' fromField='touchTime' toNode=' SOUND_SCRIPT' toField='switchOut'/>
< ROUTE fromNode=' PROX_SENSOR' fromField='position_changed' toNode=' START_TRANS' toField='set_translation'/>
< ROUTE fromNode=' PROX_SENSOR' fromField='orientation_changed' toNode=' START_TRANS' toField='set_rotation'/>
< ROUTE fromNode=' PROX_SENSOR' fromField='position_changed' toNode=' STOP_TRANS' toField='set_translation'/>
< ROUTE fromNode=' PROX_SENSOR' fromField='orientation_changed' toNode=' STOP_TRANS' toField='set_rotation'/>
< ROUTE fromNode=' MYSOUND' fromField='isActive' toNode=' SOUND_SCRIPT' toField='colorPhonograph'/>
< ROUTE fromNode=' TOUCHSTART' fromField='touchTime' toNode=' GOTIMER' toField='set_startTime'/>
< ROUTE fromNode=' GOTIMER' fromField='fraction_changed' toNode=' GOFLASH' toField='set_fraction'/>
< ROUTE fromNode=' GOFLASH' fromField='value_changed' toNode=' GOMATERIAL' toField='set_diffuseColor'/>
< ROUTE fromNode=' TOUCHSTOP' fromField='touchTime' toNode=' STOPTIMER' toField='set_startTime'/>
< ROUTE fromNode=' STOPTIMER' fromField='fraction_changed' toNode=' STOPFLASH' toField='set_fraction'/>
< ROUTE fromNode=' STOPFLASH' fromField='value_changed' toNode=' STOPMATERIAL' toField='set_diffuseColor'/>
<!--
<!--
Event Graph ROUTE Table
shows event connections
-->
<!-- Index for DEF nodes: GOFLASH, GOMATERIAL, GOTIMER, HORNCOLOR, MYSOUND, MYSWITCH, PHONOCOLOR, PROX_SENSOR, SOUND_SCRIPT, START, START_TRANS, STOP, STOP_TRANS, STOPFLASH, STOPMATERIAL, STOPTIMER, TOUCHSTART, TOUCHSTOP
Index for Viewpoint node: Viewpoint_1
