<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.0.xsd '>
<head>
<meta name='title' content='startltstoplooptrue.x3d'/>
<meta name='MovingImage' content='startltstoplooptrue-movie.mpg'/>
<meta name='reference' content=' http://www.nist.gov/vrml.html '/>
<meta name='reference' content=' http://www.itl.nist.gov/div897/ctg/vrml/vrml.html '/>
<meta name='creator' content=' http://www.itl.nist.gov/div897/ctg/vrml/members.html '/>
<meta name='disclaimer' content=' This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology. This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='info' content='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
<meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translated' content='21 January 2001'/>
<meta name='modified' content='20 October 2019'/>
<meta name='description' content='Test of loop equals true, and the startTime less than stopTime. The chime sound will play until stopTime is reached. Clicking on the "Start" button sets startTime to "now". Simultaneously, stopTime is set to ("now" + 12 seconds). As a result, the sound will cycle for 2 complete loops (a total of 10 seconds), then setop 2 seconds into the third loop. If the "Stop" button is pressed any time before stopTime is reached, the sound should stop instantly.'/>
<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/AudioClip/startltstoplooptrue.x3d '/>
<meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../../license.html'/>
</head>
<!--
Index for DEF nodes : GOFLASH, GOMATERIAL, GOTIMER, HORNCOLOR, MYSOUND, PHONOCOLOR, PROX_SENSOR, SOUND_SCRIPT, START, START_TRANS, STOP, STOP_TRANS, STOPFLASH, STOPMATERIAL, STOPTIMER, TOUCHSTART, TOUCHSTOP
Index for Viewpoint image : Viewpoint_1
-->
<Scene>
<WorldInfo title='startltstoplooptrue.x3d'/>

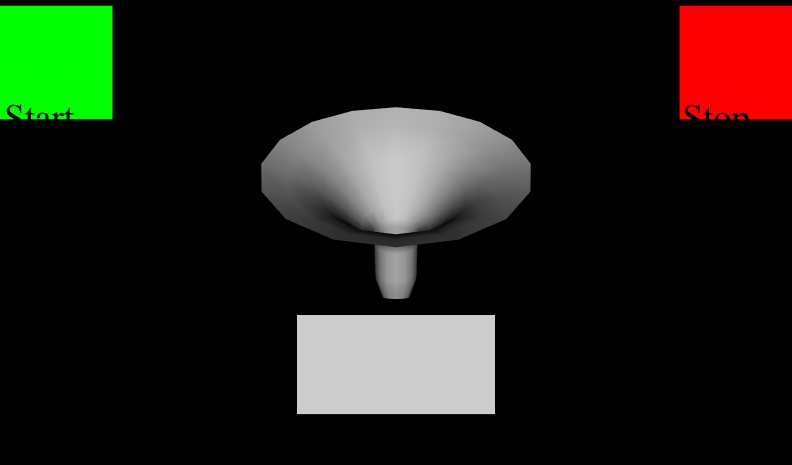

<Viewpoint description='entry viewpoint' position='0 0 5'/>
<!-- ROUTE information for PROX_SENSOR node:  [from position_changed to START_TRANS.set_translation ] [from orientation_changed to START_TRANS.set_rotation ] [from position_changed to STOP_TRANS.set_translation ] [from orientation_changed to STOP_TRANS.set_rotation ] -->
 <ProximitySensor DEF='PROX_SENSOR' size='1000 1000 1000'/>
<Sound>
<!-- ROUTE information for MYSOUND node:  [from TOUCHSTART.touchTime to set_startTime ] [from TOUCHSTOP.touchTime to set_stopTime ] [from isActive to SOUND_SCRIPT.colorPhonograph ] -->
 <AudioClip DEF='MYSOUND' description='chimes' loop='true' startTime='2' stopTime='4'
  url=' "chimes.wav" "https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/AudioClip/chimes.wav" '/>
</Sound>
<Transform scale='0.5 0.5 0.5'>
<Transform translation='0 -2 0'>
<Shape>
<Appearance>
<Material DEF='PHONOCOLOR'/>
</Appearance>
<Box size='3 1.5 3'/>
</Shape>
</Transform>
<Transform rotation='1 0 0 -2.5'>
<Shape>
<Appearance>
<Material DEF='HORNCOLOR'/>
</Appearance>
<Extrusion beginCap='false' creaseAngle='1.57' crossSection='1 0 0.92388 0.382683 0.707107 0.707106 0.382684 0.923879 1.26759e-006 1 -0.382682 0.92388 -0.707105 0.707108 -0.923879 0.382685 -1 2.53518e-006 -0.923881 -0.382681 -0.707109 -0.707105 -0.382687 -0.923878 -3.80277e-006 -1 0.38268 -0.923881 0.707104 -0.70711 0.923878 -0.382688 1 0' endCap='false' orientation='0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0' scale='2.2 2.2 1.8 1.8 1.4 1.4 1.2 1.2 1 1 0.8 0.8 0.6 0.6 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.2 0.2 0.0001 0.0001' solid='false' spine='0 -1.4 0 0 -1.22137 0 0 -1.01245 0 0 -0.819601 0 0 -0.626754 0 0 -0.401765 0 0 -0.204459 0 0 -0.0164327 0 0 0.176777 0 0 0.380511 0 0 0.578542 0 0 0.819601 0 0 0.996378 0 0 1.8 0 0 1.2 0'/>
</Shape>
</Transform>
</Transform>
<!-- ROUTE information for START_TRANS node:  [from PROX_SENSOR.position_changed to set_translation ] [from PROX_SENSOR.orientation_changed to set_rotation ] -->
 <Transform DEF='START_TRANS'>
<Transform translation='-3 1.5 -5'>
<Shape>
<Appearance>
<!-- ROUTE information for GOMATERIAL node:  [from GOFLASH.value_changed to set_diffuseColor ] -->
 <Material DEF='GOMATERIAL' ambientIntensity='1' diffuseColor='0 1 0'/>
</Appearance>
<Box DEF='START' size='1 1 0.1'/>
</Shape>
<Transform translation='-0.35 -0.1 0.2'>
<Shape>
<Appearance>
<Material ambientIntensity='1' diffuseColor='0 0 0'/>
</Appearance>
<Text string='"Start"'>
<FontStyle size='0.4'/>
</Text>
</Shape>
</Transform>
</Transform>
<!-- ROUTE information for TOUCHSTART node:  [from touchTime to MYSOUND.set_startTime ] [from touchTime to SOUND_SCRIPT.set_stopTime ] [from touchTime to GOTIMER.set_startTime ] -->
 <TouchSensor DEF='TOUCHSTART' description='touch to start'/>
<!-- ROUTE information for GOTIMER node:  [from TOUCHSTART.touchTime to set_startTime ] [from fraction_changed to GOFLASH.set_fraction ] -->
 <TimeSensor DEF='GOTIMER'/>
<!-- ROUTE information for GOFLASH node:  [from GOTIMER.fraction_changed to set_fraction ] [from value_changed to GOMATERIAL.set_diffuseColor ] -->
 <ColorInterpolator DEF='GOFLASH' key='0 0.5 1' keyValue='0 1 0 1 1 1 0 1 0'/>
</Transform>
<!-- ROUTE information for STOP_TRANS node:  [from PROX_SENSOR.position_changed to set_translation ] [from PROX_SENSOR.orientation_changed to set_rotation ] -->
 <Transform DEF='STOP_TRANS'>
<Transform translation='3 1.5 -5'>
<Shape>
<Appearance>
<!-- ROUTE information for STOPMATERIAL node:  [from STOPFLASH.value_changed to set_diffuseColor ] -->
 <Material DEF='STOPMATERIAL' ambientIntensity='1' diffuseColor='1 0 0'/>
</Appearance>
<Box DEF='STOP' size='1 1 0.1'/>
</Shape>
<Transform translation='-0.55 -0.1 0.2'>
<Shape>
<Appearance>
<Material ambientIntensity='1' diffuseColor='0 0 0'/>
</Appearance>
<Text string='"Stop"'>
<FontStyle size='0.4'/>
</Text>
</Shape>
</Transform>
</Transform>
<!-- ROUTE information for TOUCHSTOP node:  [from touchTime to MYSOUND.set_stopTime ] [from touchTime to STOPTIMER.set_startTime ] -->
 <TouchSensor DEF='TOUCHSTOP' description='touch to stop'/>
<!-- ROUTE information for STOPTIMER node:  [from TOUCHSTOP.touchTime to set_startTime ] [from fraction_changed to STOPFLASH.set_fraction ] -->
 <TimeSensor DEF='STOPTIMER'/>
<!-- ROUTE information for STOPFLASH node:  [from STOPTIMER.fraction_changed to set_fraction ] [from value_changed to STOPMATERIAL.set_diffuseColor ] -->
 <ColorInterpolator DEF='STOPFLASH' key='0 0.5 1' keyValue='1 0 0 1 1 1 1 0 0'/>
</Transform>
<!-- ROUTE information for SOUND_SCRIPT node:  [from TOUCHSTART.touchTime to set_stopTime ] [from MYSOUND.isActive to colorPhonograph ] -->
 <Script DEF='SOUND_SCRIPT' directOutput='true'
  url=' "startltstoplooptrue.js" "https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/AudioClip/startltstoplooptrue.js" '>
<field name='mySound' type='SFNode' accessType='initializeOnly'>
<AudioClip USE='MYSOUND'/>
</field>
<field name='phonoColor' type='SFNode' accessType='initializeOnly'>
<Material USE='PHONOCOLOR'/>
</field>
<field name='hornColor' type='SFNode' accessType='initializeOnly'>
<Material USE='HORNCOLOR'/>
</field>
<field name='yellow' type='SFColor' value='0.75 0.75 0.00' accessType='initializeOnly'/>
<field name='white' type='SFColor' value='0.80 0.80 0.80' accessType='initializeOnly'/>
<field name='colorPhonograph' type='SFBool' accessType='inputOnly'/>
<field name='set_stopTime' type='SFTime' accessType='inputOnly'/>
</Script>
<ROUTE fromNode='TOUCHSTART' fromField='touchTime' toNode='MYSOUND' toField='set_startTime'/>
<ROUTE fromNode='TOUCHSTART' fromField='touchTime' toNode='SOUND_SCRIPT' toField='set_stopTime'/>
<ROUTE fromNode='TOUCHSTOP' fromField='touchTime' toNode='MYSOUND' toField='set_stopTime'/>
<ROUTE fromNode='PROX_SENSOR' fromField='position_changed' toNode='START_TRANS' toField='set_translation'/>
<ROUTE fromNode='PROX_SENSOR' fromField='orientation_changed' toNode='START_TRANS' toField='set_rotation'/>
<ROUTE fromNode='PROX_SENSOR' fromField='position_changed' toNode='STOP_TRANS' toField='set_translation'/>
<ROUTE fromNode='PROX_SENSOR' fromField='orientation_changed' toNode='STOP_TRANS' toField='set_rotation'/>
<ROUTE fromNode='MYSOUND' fromField='isActive' toNode='SOUND_SCRIPT' toField='colorPhonograph'/>
<ROUTE fromNode='TOUCHSTART' fromField='touchTime' toNode='GOTIMER' toField='set_startTime'/>
<ROUTE fromNode='GOTIMER' fromField='fraction_changed' toNode='GOFLASH' toField='set_fraction'/>
<ROUTE fromNode='GOFLASH' fromField='value_changed' toNode='GOMATERIAL' toField='set_diffuseColor'/>
<ROUTE fromNode='TOUCHSTOP' fromField='touchTime' toNode='STOPTIMER' toField='set_startTime'/>
<ROUTE fromNode='STOPTIMER' fromField='fraction_changed' toNode='STOPFLASH' toField='set_fraction'/>
<ROUTE fromNode='STOPFLASH' fromField='value_changed' toNode='STOPMATERIAL' toField='set_diffuseColor'/>
</Scene>
</X3D>
<!--
