<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Immersive' version='3.0 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.0.xsd '>
<head>
<meta name='titlecontent='startltstoploopfalse_past.x3d'/>
<meta name='MovingImagecontent='startltstoploopfalse_past-movie.mpg'/>
<meta name='referencecontent=' http://www.nist.gov/vrml.html '/>
<meta name='referencecontent=' http://www.itl.nist.gov/div897/ctg/vrml/vrml.html '/>
<meta name='creatorcontent=' http://www.itl.nist.gov/div897/ctg/vrml/members.html '/>
<meta name='disclaimercontent=' This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology. This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='infocontent='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
<meta name='translatorcontent='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translatedcontent='21 January 2001'/>
<meta name='modifiedcontent='20 October 2019'/>
<meta name='descriptioncontent='Test of loop equals false, and the startTime "2" less than stopTime "4". The sound will not play because the stopTime of "4" is before "now".'/>
<meta name='identifiercontent=' https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/AudioClip/startltstoploopfalse_past.x3d '/>
<meta name='generatorcontent='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../../license.html'/>
</head>
<!--

Index for DEF nodes : HORNCOLOR, MYSOUND, PHONOCOLOR, SOUND_SCRIPT

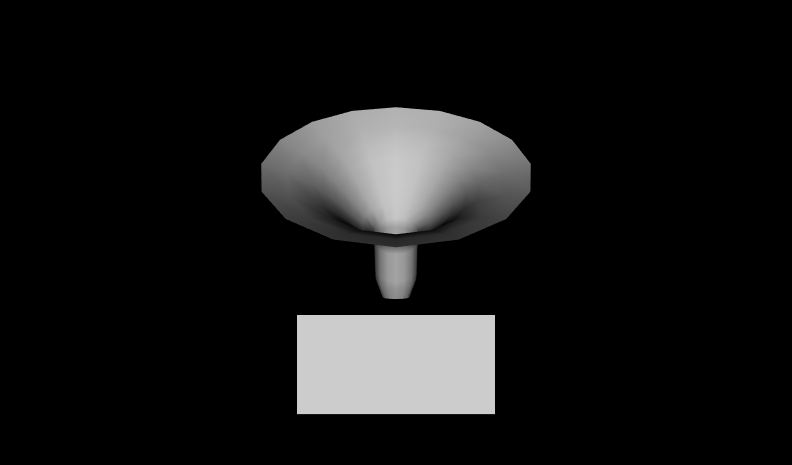

Index for Viewpoint image : Viewpoint_1
-->
<Scene>
<WorldInfo title='startltstoploopfalse_past.x3d'/>
<Viewpoint description='entry viewpointposition='0 0 5'/>
<Sound>
<!-- ROUTE information for MYSOUND node:  [from isActive to SOUND_SCRIPT.colorPhonograph ] -->
<AudioClip DEF='MYSOUNDdescription='chimesstartTime='2stopTime='4'
  url=' "chimes.wav" "https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/AudioClip/chimes.wav" '/>
</Sound>
<Transform scale='0.5 0.5 0.5'>
<Transform translation='0 -2 0'>
<Shape>
<Appearance>
<Material DEF='PHONOCOLOR'/>
</Appearance>
<Box size='3 1.5 3'/>
</Shape>
</Transform>
<Transform rotation='1 0 0 -2.5'>
<Shape>
<Appearance>
<Material DEF='HORNCOLOR'/>
</Appearance>
<Extrusion beginCap='falsecreaseAngle='1.57crossSection='1 0 0.92388 0.382683 0.707107 0.707106 0.382684 0.923879 1.26759e-006 1 -0.382682 0.92388 -0.707105 0.707108 -0.923879 0.382685 -1 2.53518e-006 -0.923881 -0.382681 -0.707109 -0.707105 -0.382687 -0.923878 -3.80277e-006 -1 0.38268 -0.923881 0.707104 -0.70711 0.923878 -0.382688 1 0endCap='falseorientation='0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0scale='2.2 2.2 1.8 1.8 1.4 1.4 1.2 1.2 1 1 0.8 0.8 0.6 0.6 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.2 0.2 0.0001 0.0001solid='falsespine='0 -1.4 0 0 -1.22137 0 0 -1.01245 0 0 -0.819601 0 0 -0.626754 0 0 -0.401765 0 0 -0.204459 0 0 -0.0164327 0 0 0.176777 0 0 0.380511 0 0 0.578542 0 0 0.819601 0 0 0.996378 0 0 1.8 0 0 1.2 0'/>
</Shape>
</Transform>
</Transform>
<!-- ROUTE information for SOUND_SCRIPT node:  [from MYSOUND.isActive to colorPhonograph ] -->
<Script DEF='SOUND_SCRIPTdirectOutput='true'
  url=' "startltstoploopfalse_past.js" "https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/AudioClip/startltstoploopfalse_past.js" '>
<field name='phonoColortype='SFNodeaccessType='initializeOnly'>
<Material USE='PHONOCOLOR'/>
</field>
<field name='hornColortype='SFNodeaccessType='initializeOnly'>
<Material USE='HORNCOLOR'/>
</field>
<field name='yellowtype='SFColorvalue='0.75 0.75 0.00accessType='initializeOnly'/>
<field name='whitetype='SFColorvalue='0.80 0.80 0.80accessType='initializeOnly'/>
<field name='colorPhonographtype='SFBoolaccessType='inputOnly'/>
</Script>
<ROUTE fromNode='MYSOUNDfromField='isActivetoNode='SOUND_SCRIPTtoField='colorPhonograph'/>
</Scene>
</X3D>
<!--

Index for DEF nodes : HORNCOLOR, MYSOUND, PHONOCOLOR, SOUND_SCRIPT

Index for Viewpoint image : Viewpoint_1
-->

<!-- Color key: <X3dNode DEF='idName' field='value'/> matches <XmlElement DEF='idName' attribute='value'/>
(Light blue background: behavior node) (Grey background: inserted documentation) (Magenta background: X3D Extensibility)
-->

<!-- For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources and X3D Scene Authoring Hints. -->
